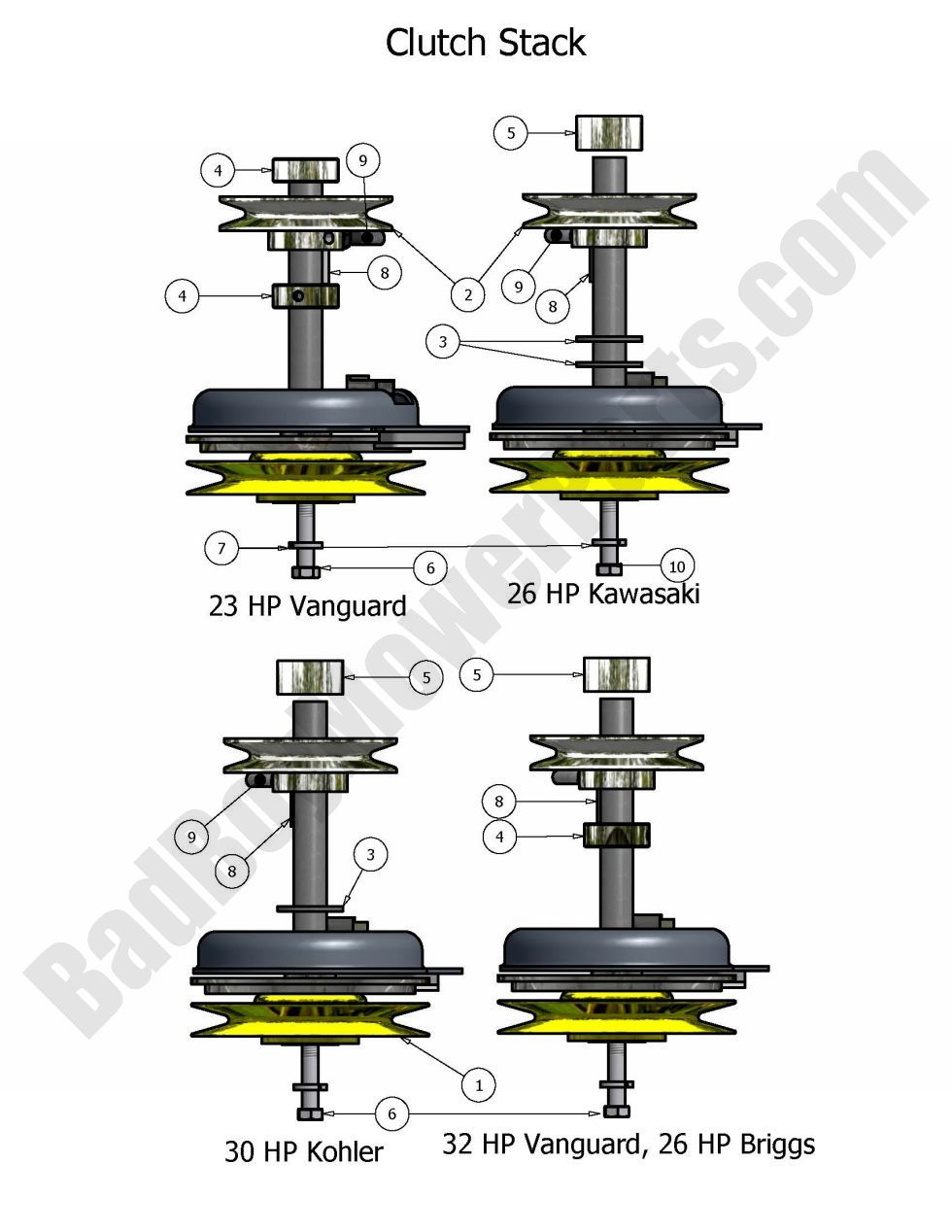

2009 Pup and Lightning - Clutch Stack

2009 Pup and Lightning - Clutch Stack

The Bad Boy Mower parts diagram for the 2009 Pup and Lightning Clutch Stack is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2009 Pup and Lightning models. Find all of your Bad Boy mowers 2009 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2009 Pup and Lightning Clutch Stack. If you are not able to find the Bad Boy parts for your 2009 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2009 Pup and Lightning - Clutch Stack
  Position Number SKU Product Title Price
1 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
2 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
3 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
4 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51
5 025-6000-00 025-6000-00 - 1 1/8 x.910 Spacer (Clutch)
$12.77
6 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
7 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
8 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
9 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
10 018-5028-00 018-5028-00 - M10 X 1.5 X 60MM
$2.99
