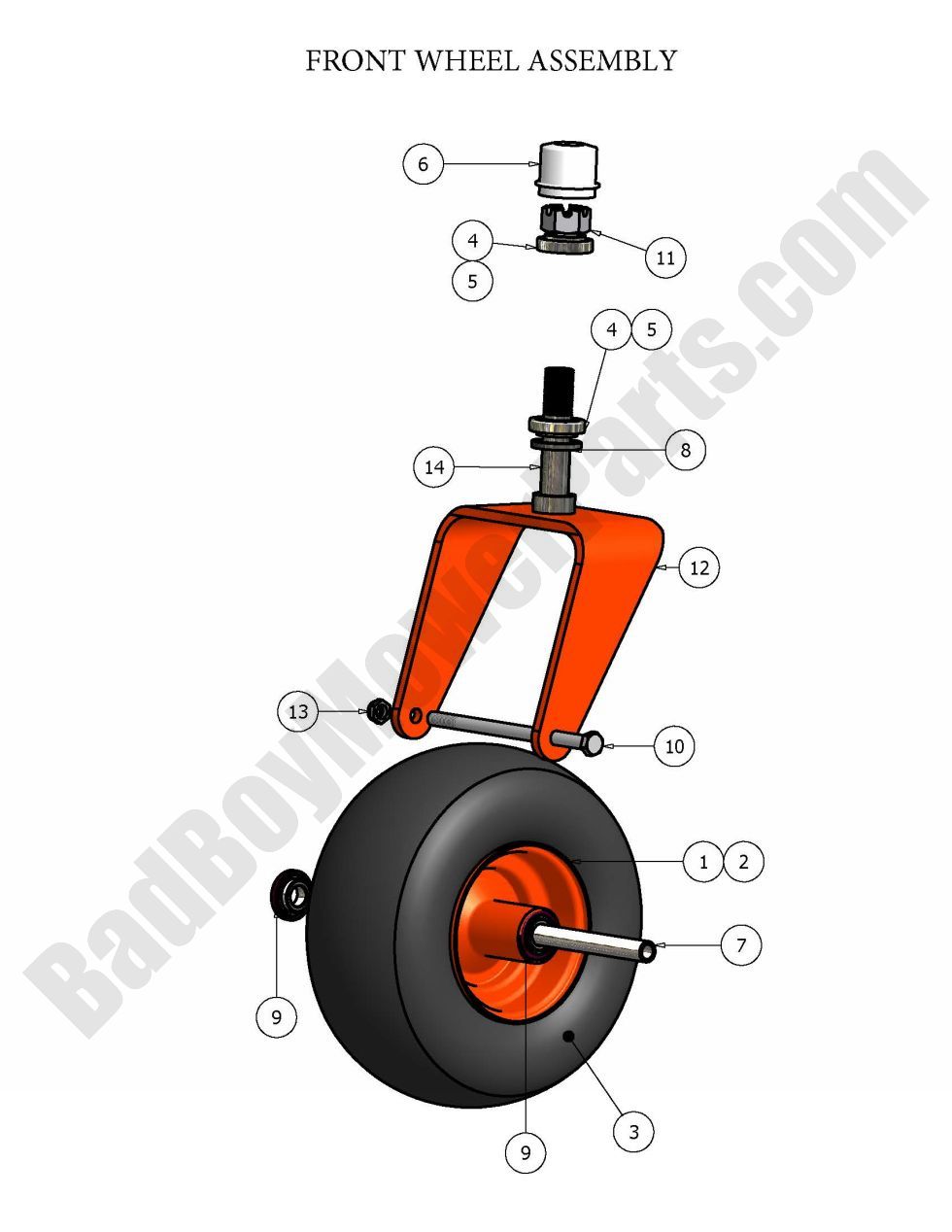

2009 Pup and Lightning - Front Wheel Assembly

2009 Pup and Lightning - Front Wheel Assembly

The Bad Boy Mower parts diagram for the 2009 Pup and Lightning Front Wheel Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2009 Pup and Lightning models. Find all of your Bad Boy mowers 2009 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2009 Pup and Lightning Front Wheel Assembly. If you are not able to find the Bad Boy parts for your 2009 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2009 Pup and Lightning - Front Wheel Assembly
  Position Number SKU Product Title Price
1 022-3060-00 022-3060-00 - 13 x 6.50 - 6 LARGE BORE, Orange Front Assembly
$128.39
2 022-2002-00 022-2002-00 - 6" Front Wheel - Large Bore
$85.59
3 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
4 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
5A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
5 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$2.99
6 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
7 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
8 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
9 022-7010-00 022-7010-00 - 1 3/4" Bearing-Large Bore Front Wheel
$20.32
10 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
11 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
12 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 037-0001-00 037-0001-00 - Fork Spindle (weld on)
$28.39
