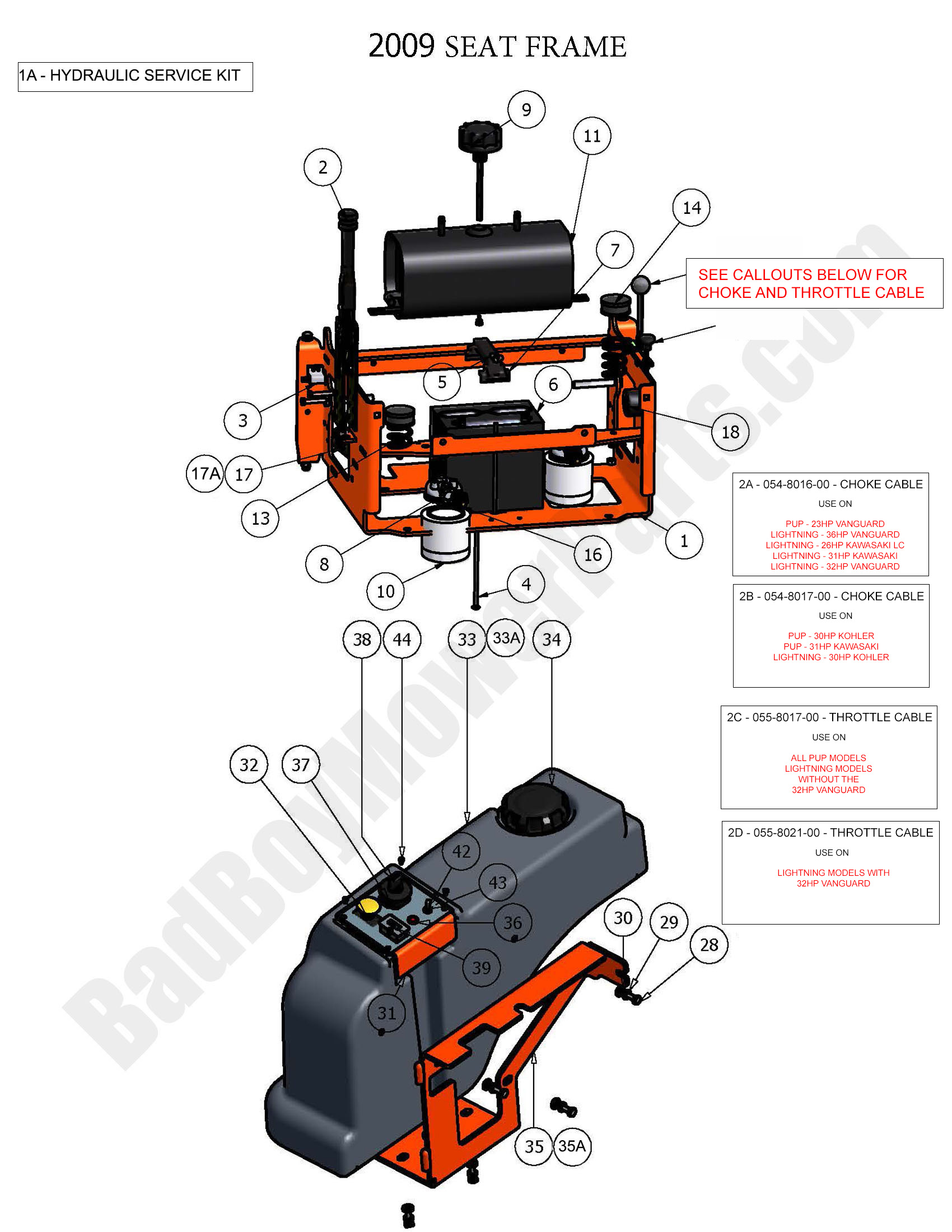

2009 Pup and Lightning - Seat Frame

2009 Pup and Lightning - Seat Frame

The Bad Boy Mower parts diagram for the 2009 Pup and Lightning Seat Frame is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2009 Pup and Lightning models. Find all of your Bad Boy mowers 2009 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2009 Pup and Lightning Seat Frame. If you are not able to find the Bad Boy parts for your 2009 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2009 Pup and Lightning - Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 080-6010-00 080-6010-00 - Seat Frame (See Models Used On For Details)
$427.99
2A 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2C 055-8017-00 055-8017-00 - Throttle Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$45.29
2D 055-8021-00 055-8021-00 - 52" Throttle Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$45.29
2 069-8054-00 069-8054-00 - Brake Handle Kit
$127.77
3 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
4 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
5 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
7 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
8 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
9 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
10 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
13 034-8045-00 034-8045-00 - Seat Spring
$20.49
14 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
16 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
17A 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
17 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
18 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
28 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
29 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
30 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
31 079-3401-00 079-3401-00 - 2007-2011 Pup/Lightning, 2011 Outlaw Extreme Instrument Panel
$23.78
32 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
33A 067-5001-50 067-5001-50 - Left Fuel Tank (See Models Used On For Details)
$352.99
33 067-5000-50 067-5000-50 - Right Fuel Tank (See Models Used On For Details)
$352.99
34 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
35A 031-2006-00 031-2006-00 - Tank Support R (See Models Used On For Details)
$47.07
35 031-2007-00 031-2007-00 - Tank Support L (See Models Used On For Details)
$47.07
36 089-1000-00 089-1000-00 - Oil Light
$12.63
37 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
38 042-9000-00 042-9000-00 - Ignition Key
$4.06
39 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
42 078-8077-00 078-8077-00 - Joystick - Deck Lift
$34.29
43 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
44 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
