2009 ZT - Actuator Bar

2009 ZT - Actuator Bar

The 2009 ZT Actuator Bar plays a critical role in the operation of your Bad Boy Mower, ensuring smooth functionality and precise control. If your actuator bar needs replacement, BadBoyMowerParts.com provides high-quality Bad Boy Mower Parts to keep your mower in optimal condition. Our Bad Boy Mower Part Diagrams help you locate the exact actuator bar needed for your 2009 ZT model. Whether you're dealing with wear and tear or a broken component, our selection of Bad Boy Lawn Mower Parts ensures you get the right replacement quickly. Ordering Bad Boy Parts Online allows for hassle-free shopping and fast delivery, so you can get your mower back in action without delays. Plus, with Free Shipping On Orders Over $100, you can maintain your mower affordably. Upgrade or replace your 2009 ZT Actuator Bar today for improved performance and reliability.

Bad Boy Mower Parts Lookup

2009 ZT - Actuator Bar
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
2 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
3 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
4 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
5 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
6 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
7 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
10 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
15 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
16 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
18 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
19 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
20 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
21 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06

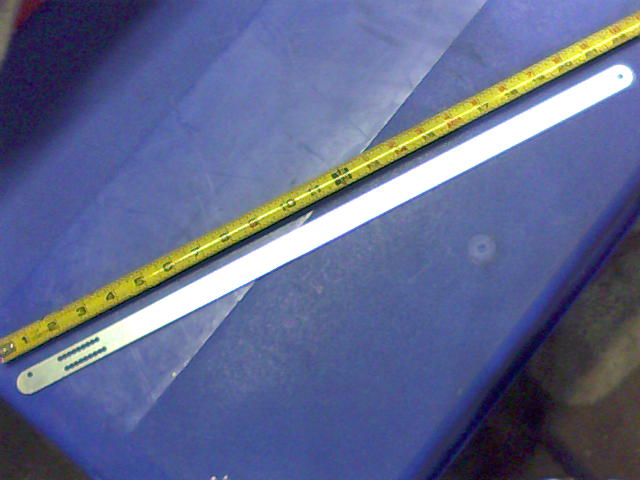

22 031-0052-00 031-0052-00 - 2007-2011 ZT/CZT Transaxle Neutral Lever
$11.34
