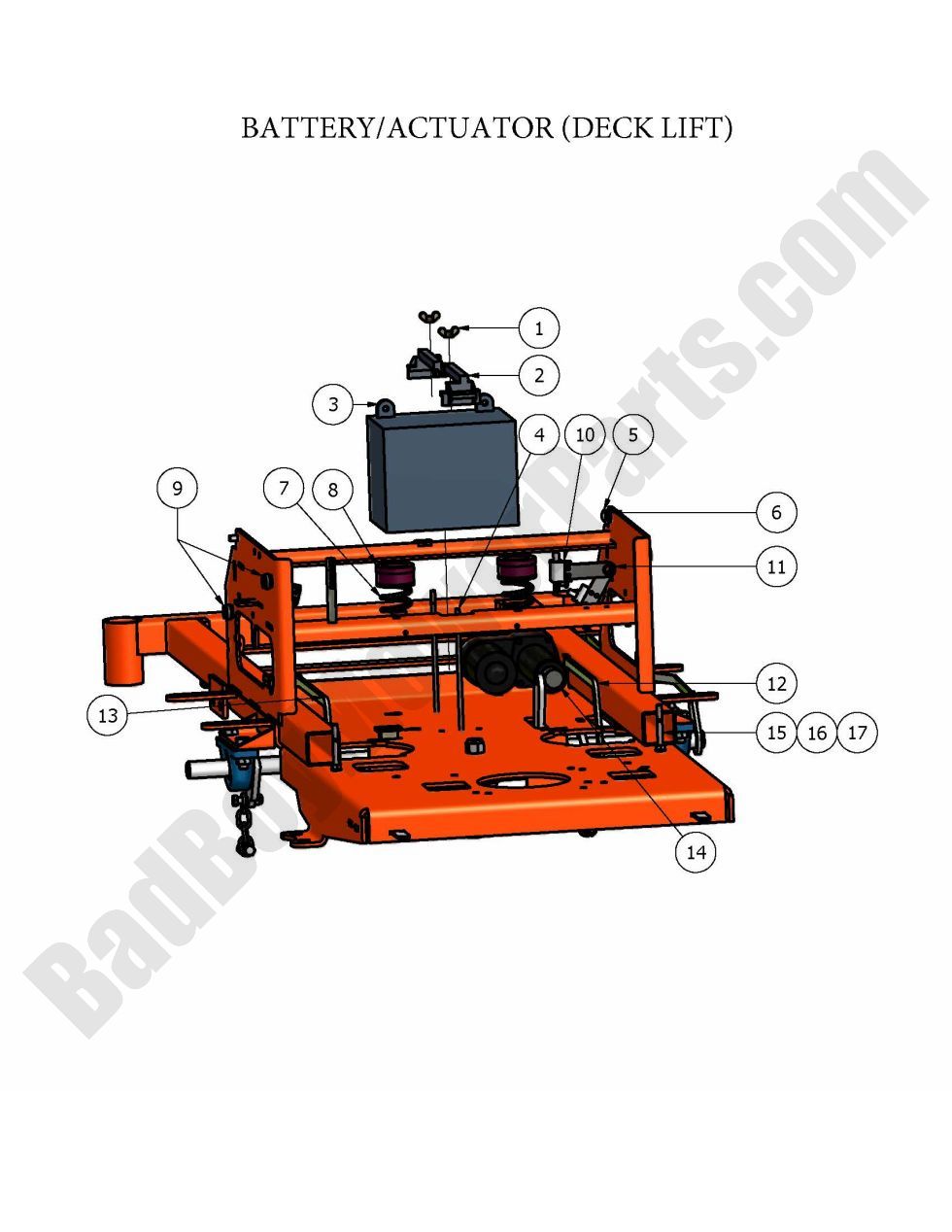

Click Image to Change Diagram
The 2009 ZT Battery & Actuator system is essential for smooth operation and consistent performance. If your mower's battery or actuator needs replacement, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts to ensure reliability. Our Bad Boy Mower Part Diagrams help you find the correct components for your 2009 ZT, from batteries to actuator systems. Keeping your mower powered and functioning properly is essential for efficiency, and we provide only the best Bad Boy Lawn Mower Parts to maintain peak performance. Shopping for Bad Boy Parts Online is quick and easy, so you can get back to mowing without unnecessary downtime. Plus, enjoy Free Shipping On Orders Over $100, making it even more cost-effective to maintain your mower. Whether you need a new battery, actuator, or related components, we have everything you need to keep your 2009 ZT in top shape.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 013-8051-00 | 013-8051-00 - 1/4-20 Wing Nuts Zinc |
$2.99
|
||
2 | 043-8929-00 | 043-8929-00 - Battery Hold Down Kit |
$17.49
|
||
4 | 018-8050-00 | 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down |
$2.99
|
||
5 | 018-8062-00 | 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts |
$2.99
|
||
6 | 019-6042-00 | 019-6042-00 -.360 ID Plastic Washer |
$2.99
|
||
7 | 034-8045-00 | 034-8045-00 - Seat Spring |
$20.49
|
||
8 | 014-8047-00 | 014-8047-00 - Rubber Cap Cover |
$2.99
|
||
9 | 025-2000-00 | 025-2000-00 -.380x.735x.470 Nylon Spacer |
$2.99
|
||
10 | 077-8073-00 | 077-8073-00 - Safety Switch (See Models Used On For Detail) |
$10.99
|
||
12 | 035-5400-00 | 035-5400-00 - 2007-2012 CZT/ZT Right Steering Push Rod |
$30.87
|
||
13 | 035-5401-00 | 035-5401-00 - 2007-2012 CZT/ZT Left Steering Push Rod |
$30.87
|
||
14 | 035-7033-00 | 035-7033-00 - Actuator |
$408.75
|
||
15 | 018-4701-00 | 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc |
$2.99
|
||
16 | 019-8051-00 | 019-8051-00 - 5/16" Lockwasher Zinc |
$2.99
|
||
17 | 013-8043-00 | 013-8043-00 - 5/16-18 Hex Nut |
$2.99
|
