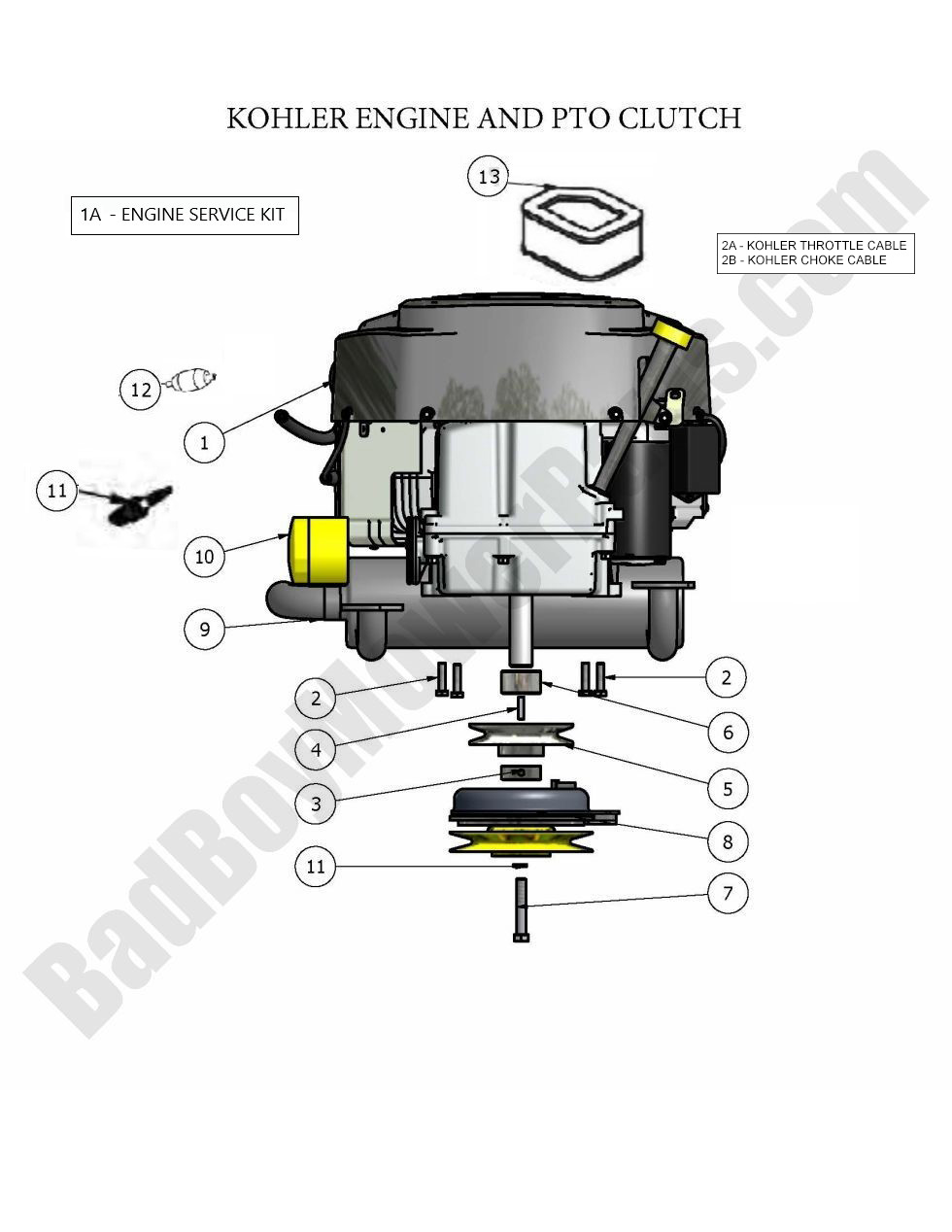

2009 ZT - Engine - Kohler

2009 ZT - Engine - Kohler

The 2009 ZT Engine - Kohler is a high-performance engine designed for durability and efficiency. Keeping it in top condition is essential for ensuring the longevity of your Bad Boy Mower. At BadBoyMowerParts.com, we carry a full range of Bad Boy Mower Parts specifically for Kohler engines, including filters, spark plugs, and internal components. Our Bad Boy Mower Part Diagrams make it easy to find the right parts for your 2009 ZT mower. Whether you need routine maintenance or a major repair, our selection of Bad Boy Lawn Mower Parts ensures your Kohler engine runs at peak efficiency. Ordering Bad Boy Parts Online is convenient and hassle-free, giving you quick access to the components you need. Plus, enjoy Free Shipping On Orders Over $100, saving you money while keeping your mower running strong. Keep your 2009 ZT Engine - Kohler performing at its best with genuine replacement parts today.

Bad Boy Mower Parts Lookup

2009 ZT - Engine - Kohler
  Position Number SKU Product Title Price
1A 063-2001-00 063-2001-00 - Kohler Courage Engine Service Kit (Courage Engines Only)
$89.50
1B 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
1 015-2700-00 015-2700-00 - 27hp Kohler Courage (obsolete)
use part #015-2026-00
$2399.00
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 018-5051-00 018-5051-00 - OBSOLETE use 018-1075-00 3/8x1 1/8 HWH Engine Bolt (obsolete)
use part #018-1075-00
$2.99
3 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer
$12.83
4 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
5 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
6 025-6000-00 025-6000-00 - 1 1/8 x.910 Spacer (Clutch)
$12.77
7 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
8 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
9 015-2750-00 015-2750-00 - Exhaust-27hp Kohler Courage
$318.45
10 063-5400-00 063-5400-00 - Oil Filter (Long) for Kohler Engines
$22.46
11 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
11 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
12 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
13 063-8080-00 063-8080-00 - Air Filter/Precleaner-27hp Kohler Courage
$34.23
