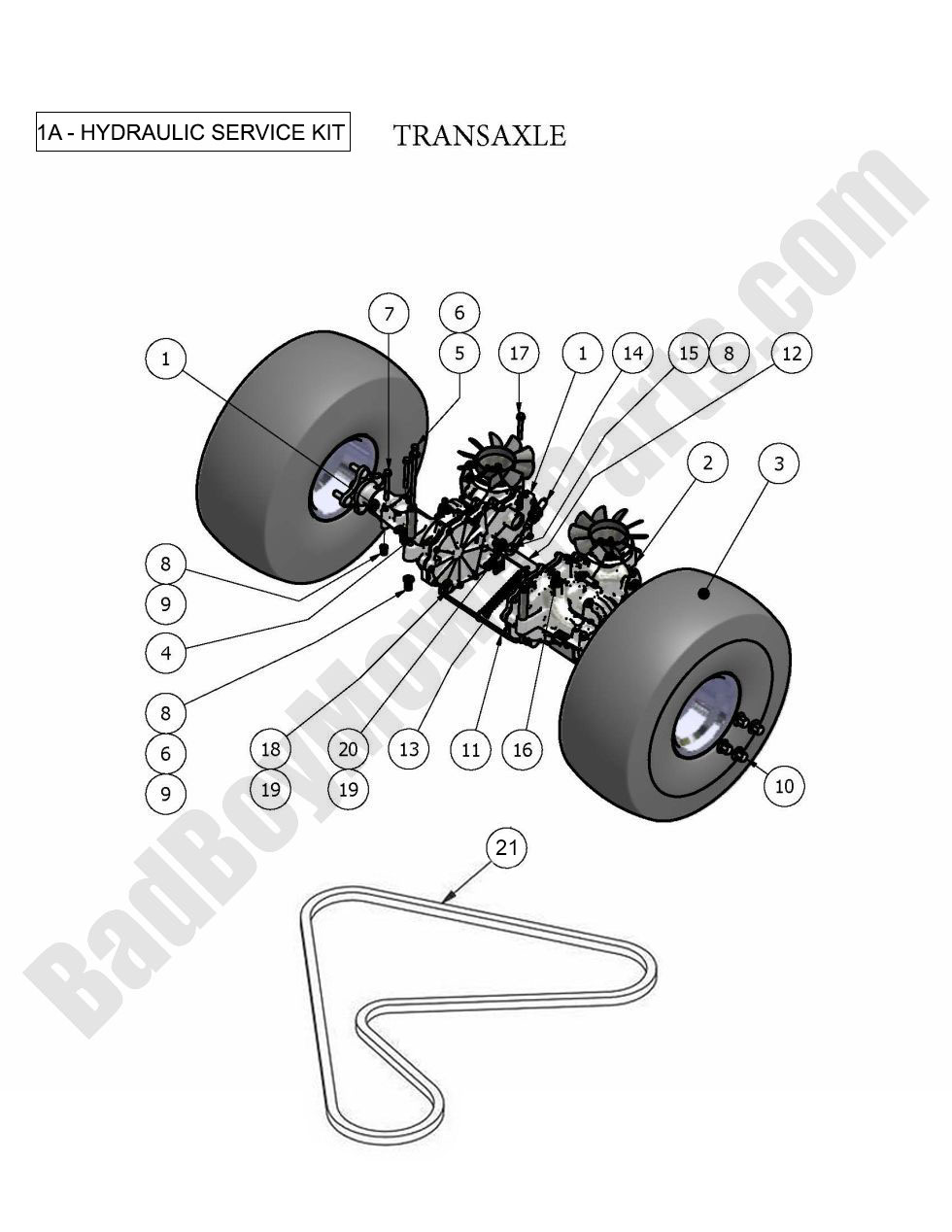

2009 ZT - Transaxle

2009 ZT - Transaxle

The 2009 ZT Transaxle is responsible for power transmission and smooth operation of your Bad Boy Mower. If your transaxle is experiencing performance issues, replacing it with high-quality Bad Boy Mower Parts from BadBoyMowerParts.com is the best solution. Our Bad Boy Mower Part Diagrams allow you to easily find the exact transaxle components you need for your 2009 ZT mower. Whether you're replacing a worn-out transaxle or upgrading for better efficiency, we provide only the best Bad Boy Lawn Mower Parts to keep your mower running at peak performance. Shopping for Bad Boy Parts Online is quick and convenient, ensuring fast access to essential replacement parts. Plus, take advantage of Free Shipping On Orders Over $100, making your purchase even more cost-effective. Order your 2009 ZT Transaxle today and keep your mower running smoothly for years to come.

Bad Boy Mower Parts Lookup

2009 ZT - Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-2081-00 050-2081-00 - Left ZT Transaxle ZL-KCEE-3BKC-1RXX (obsolete)
use part #050-2096-01
$729.99
2 050-2080-00 050-2080-00 - Right ZT Transaxle ZL-GCEE-3BKV-1RXX - Obsolete - USE PART #050-2095-01 (obsolete)
use part #050-2095-01
$729.99
3 022-6000-00 022-6000-00 - 20x10.50-8 Tire/Wheel Assy Carlisle Tire (Priced Per Assembly) for 022-6002-00
$174.99
4 025-5340-00 025-5340-00 - .365 ID X .752 OD X 3.313 Length Spacer Zinc
$8.74
5 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
6 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
11 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
12 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
13 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
14 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
15 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
16 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
17 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
18 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
19 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
20 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
21 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
