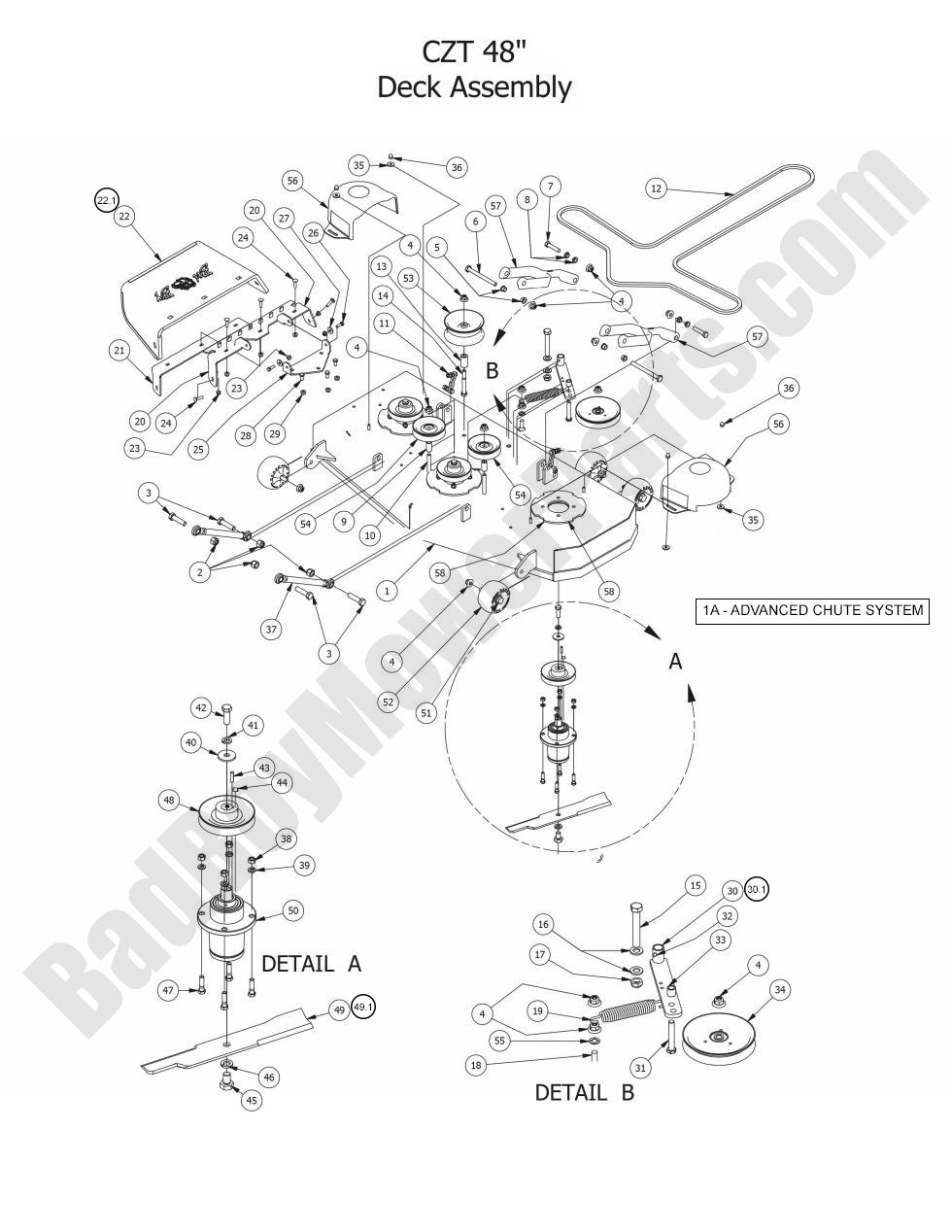

2015 CZT Elite - 48" Deck Assembly

2015 CZT Elite - 48" Deck Assembly

The 2015 CZT Elite 48" Deck Assembly is built for durability, but over time, deck components may require replacement. If your deck assembly needs new spindles, belts, or idler pulleys, BadBoyMowerParts.com is your trusted source for genuine Bad Boy Mower Parts. Our Bad Boy Mower Part Diagrams help you identify the exact parts needed to restore your deck’s performance. A well-maintained Bad Boy Lawn Mower Parts system ensures a clean, even cut every time you mow. Ordering Bad Boy Parts Online has never been easier, and with Free Shipping On Orders Over $100, you can save on essential deck components. Don’t let worn-out parts slow down your productivity—browse our inventory today and keep your CZT Elite cutting with precision. Trust BadBoyMowerParts.com for all your deck assembly needs.

Bad Boy Mower Parts Lookup

2015 CZT Elite - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1 060-6048-00 060-6048-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Maverick 48" Deck Shell
$1196.14
2 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
3 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
6 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
7 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
8 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
9 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 047-7000-00 047-7000-00 - 2015 CZT Deck Hanger Chain
$8.74
12 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
13 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
17 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
18 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
19 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
20 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
21 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
22.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
22 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
23 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
25 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
26 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
27 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
28 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
29 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
30.1 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
30 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
31 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
32 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
33 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
34 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
35 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
36 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
37 048-6060-00 048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle (See Models Used On For Details)
$56.77
38 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
39 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
40 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
41 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
42 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
45 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
46 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
47 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
48 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
49.1 038-1000-00 038-1000-00 - 48/50" Fusion Blades - 6-Pack (038-5350-00)
$118.99
49 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
50 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
51 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
52A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
52 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
53 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
54 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
55 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
56 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
57 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
58 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
