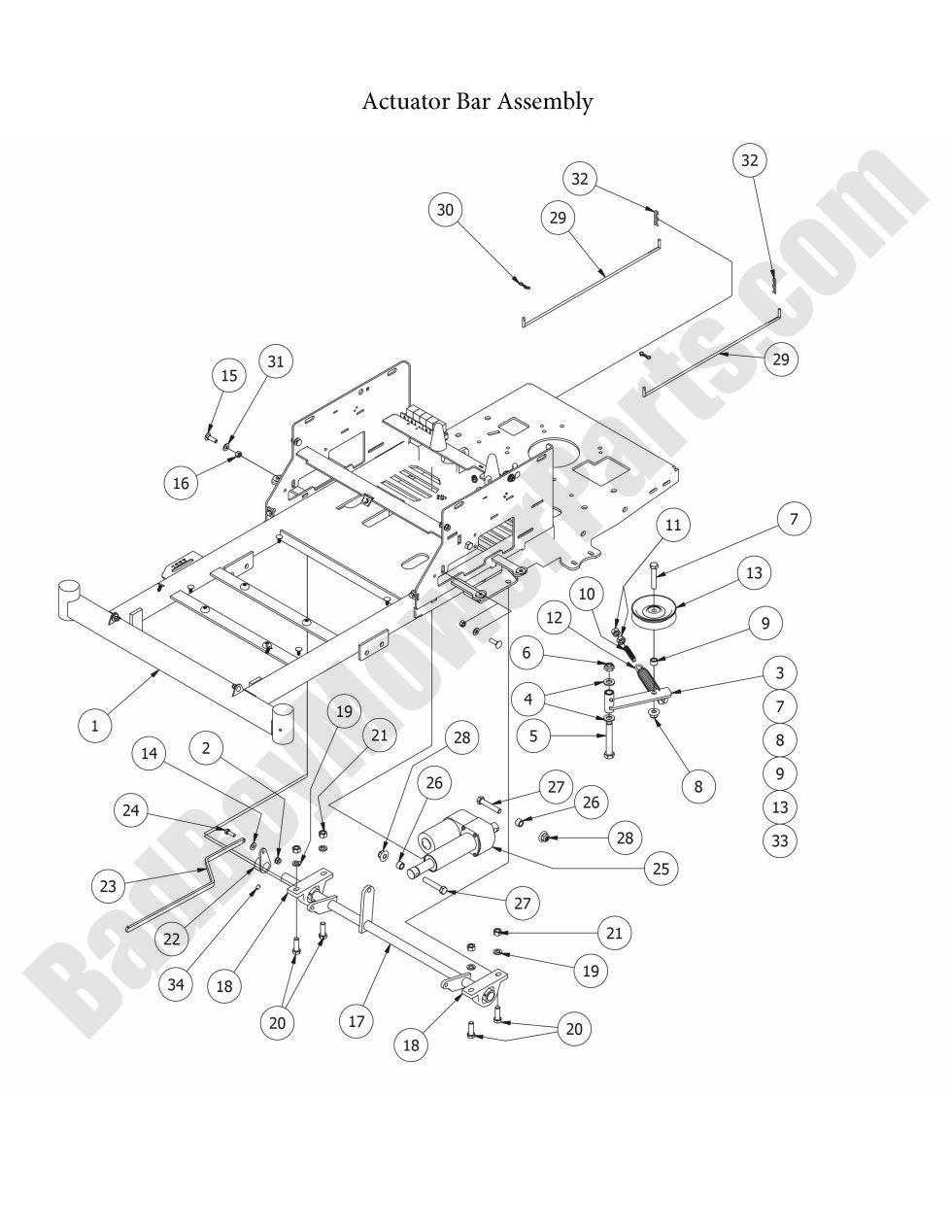

2015 CZT Elite - Battery, Frame & Actuator

2015 CZT Elite - Battery, Frame & Actuator

The 2015 CZT Elite Battery, Frame & Actuator parts are essential for ensuring your mower operates at full capacity. If your battery needs replacement or your actuator requires service, BadBoyMowerParts.com has the Bad Boy Mower Parts to meet your needs. Our comprehensive Bad Boy Mower Part Diagrams make it easy to pinpoint the exact battery or actuator parts required for your 2015 CZT Elite. By keeping your Bad Boy Lawn Mower Parts in top condition, you can ensure smooth starting and precise operation. Order Bad Boy Parts Online from our user-friendly website and enjoy a hassle-free shopping experience. Additionally, you can take advantage of our Free Shipping On Orders Over $100, so you don’t have to worry about added shipping costs when you order your parts. Ensure your mower’s electrical components are functioning optimally by shopping at BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2015 CZT Elite - Battery, Frame & Actuator
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
4 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
5 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
6 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
10 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
11 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
12 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
18 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
19 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
20 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
22 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
24 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
25 035-7033-00 035-7033-00 - Actuator
$408.75
29 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
30 044-2004-00 044-2004-00 - Bow Pin
$2.99
31 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
32 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
33 039-5944-98 039-5944-98 - Pump Idler Assembly (obsolete)
use part #039-5944-01
$62.46
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
