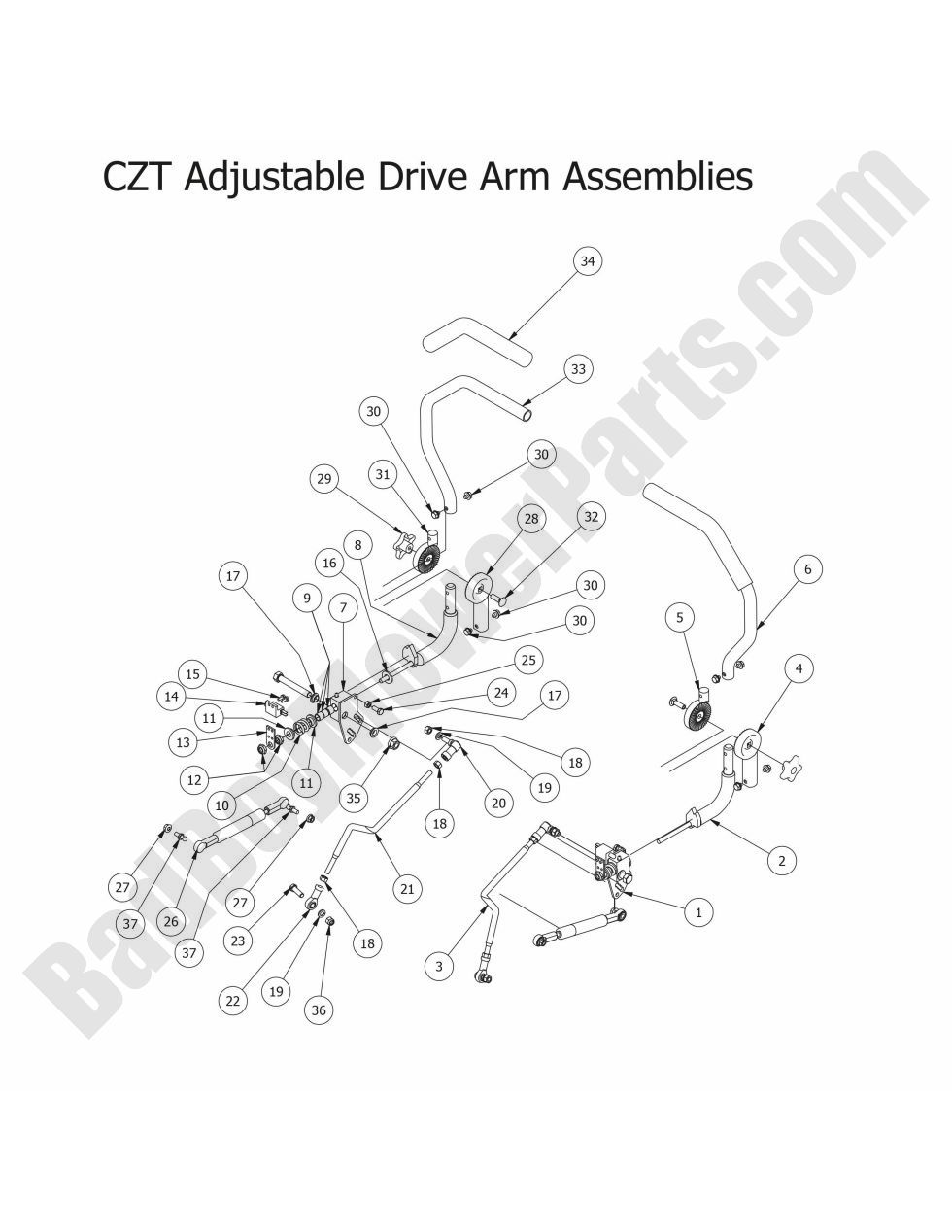

2015 CZT Elite - Drive Arms

2015 CZT Elite - Drive Arms

The 2015 CZT Elite Drive Arms are crucial components in ensuring your mower’s drive system functions properly. If your mower is having issues with its drive system, it may be time to replace the drive arms. BadBoyMowerParts.com has a full range of Bad Boy Mower Parts to keep your CZT Elite running smoothly. Our Bad Boy Mower Part Diagrams provide you with the specific parts and instructions you need to identify the correct drive arms for your mower. Using high-quality Bad Boy Lawn Mower Parts ensures you’re getting long-lasting performance from your mower’s drive system. Bad Boy Parts Online offers easy ordering options, and with Free Shipping On Orders Over $100, you can save on your purchase. Keep your mower moving forward by choosing the right drive arms and parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2015 CZT Elite - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 027-8901-00 027-8901-00 - 2013-2015 ZT/CZT, 2013-2016 Outlaw, 2016 Maverick Drive Lever Housing (Right)
$14.19
2 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
3 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
4 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
5 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
6 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
7 027-8900-00 027-8900-00 - Drive Lever Housing (Left)2013 cZT, ZT, (obsolete)
use part #031-0017-98
$31.23
8 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
9 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
10 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
13 039-1125-00 039-1125-00 - MZ Switch Bracket
$5.22
14 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
15 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
16 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
17 032-5000-00 032-5000-00 - 1/2" Oil Impregnated Bushing
$3.78
18 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
20 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
21 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
22 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
23 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
24 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
25 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
26 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
27 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
28 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
29 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
30 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
31 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
32 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
34 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
35 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
36 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
37 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
