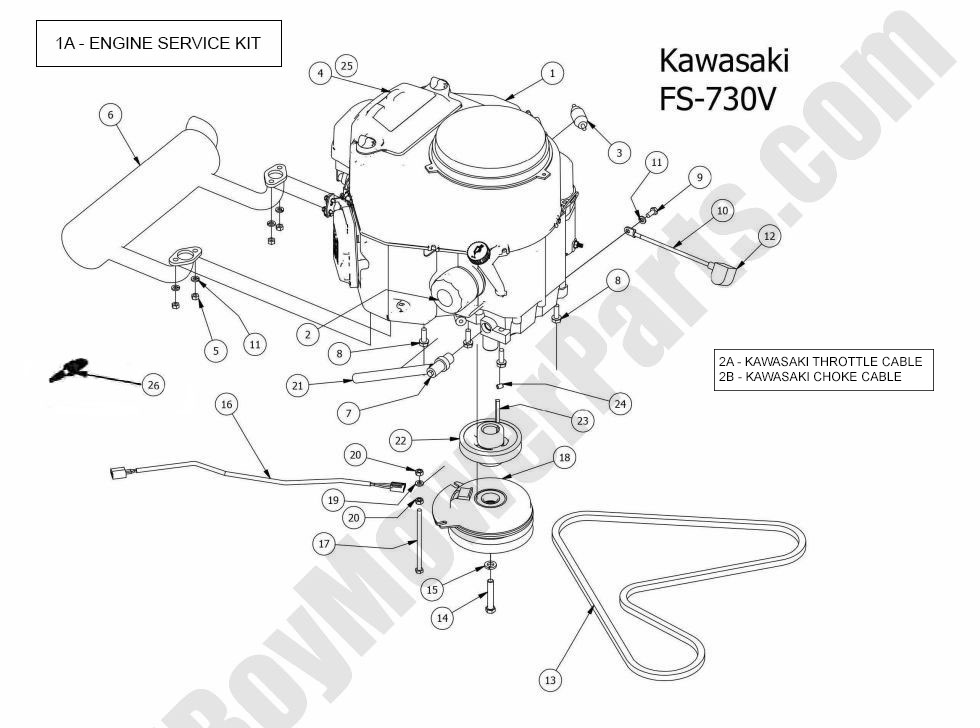

2015 CZT Elite - Engine - Kawasaki FS730

2015 CZT Elite - Engine - Kawasaki FS730

The 2015 CZT Elite Engine - Kawasaki FS730 is an important engine model for your mower. To keep your engine running efficiently, you’ll need to replace parts as they wear out. BadBoyMowerParts.com carries a full selection of Bad Boy Mower Parts for this engine model. Our Bad Boy Mower Part Diagrams help you quickly find the necessary components, from filters and belts to spark plugs and more. Maintaining your Bad Boy Lawn Mower Parts ensures that your Kawasaki FS730 engine runs at peak performance, extending its life and improving efficiency. Bad Boy Parts Online makes it easy to order exactly what you need, and with Free Shipping On Orders Over $100, you’ll save on the shipping costs as well. Keep your engine running strong and reliable with quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2015 CZT Elite - Engine - Kawasaki FS730
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1B 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
1 015-0045-00 015-0045-00 - 26hp FS730V Engine FS730V-S14-R (See Models Used On For Details)
$2299.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
3 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
4 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
6 015-0012-00 015-0012-00 - Exhaust-Kawasaki FS/FR (See Models Used On For Details)
$209.99
7 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$42.58
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
11 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
12 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
13 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
15 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
16 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
17 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
18 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
20 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
21 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
22 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
23 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
24 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
25 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
26 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
