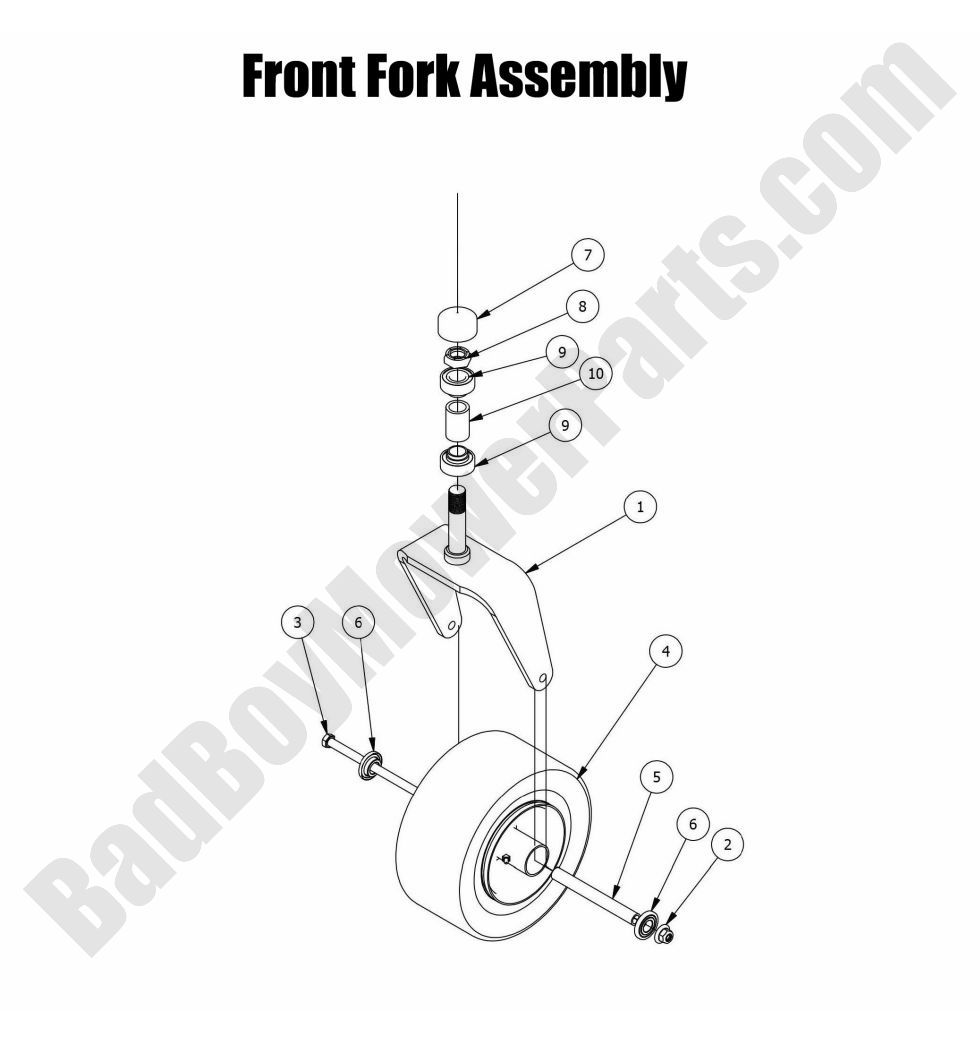

2015 CZT Elite - Front Fork Assembly

2015 CZT Elite - Front Fork Assembly

The 2015 CZT Elite Front Fork Assembly is a crucial component that ensures the stability and handling of your mower. If you need to replace or maintain your front fork assembly, BadBoyMowerParts.com is your go-to source for high-quality Bad Boy Mower Parts. With our detailed Bad Boy Mower Part Diagrams, finding the right front fork parts for your 2015 CZT Elite has never been easier. From the fork tubes to the steering components, we offer a complete range of Bad Boy Lawn Mower Parts to help you maintain a smooth, responsive ride. Ordering Bad Boy Parts Online makes the process even more convenient, and with Free Shipping On Orders Over $100, you can save on shipping costs when you order everything you need for your mower. Keep your CZT Elite handling smoothly with the right parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2015 CZT Elite - Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
4 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$119.99
5 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
6 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
7 014-2050-00 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details)
$3.73
8 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
9 010-2000-00 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details)
$16.68
10 025-0004-00 025-0004-00 - Caster Bearing Spacer (See Models Used On For Details)
$12.77
