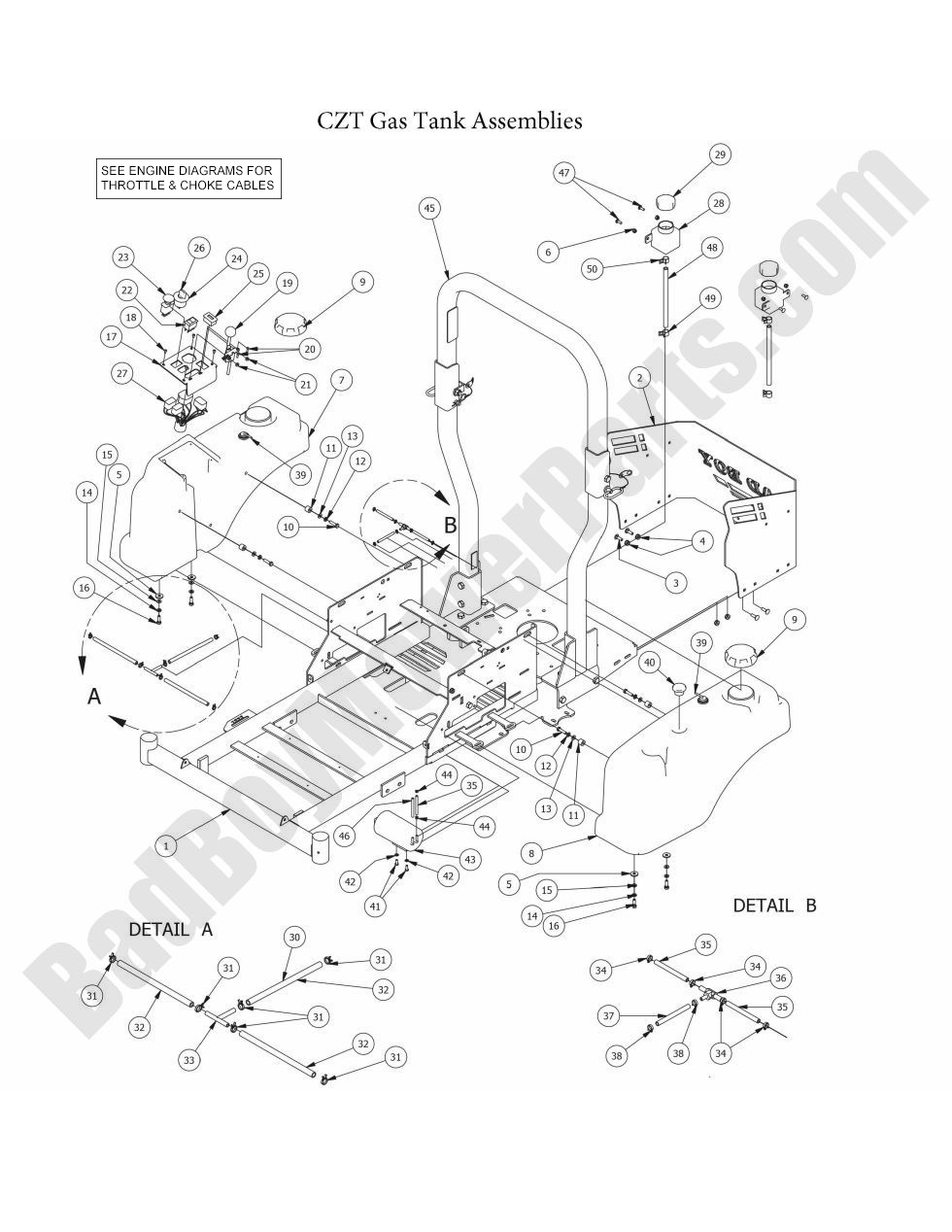

2015 CZT Elite - Gas Tank Assembly

2015 CZT Elite - Gas Tank Assembly

The 2015 CZT Elite Gas Tank Assembly is an essential part of your mower’s fuel system. If you need a replacement or to perform maintenance, BadBoyMowerParts.com offers the perfect selection of Bad Boy Mower Parts to ensure that your fuel tank is working at its best. Our Bad Boy Mower Part Diagrams provide a clear guide to help you find the correct parts, whether you're looking for a new tank or specific components such as caps, fuel lines, or hardware. Proper maintenance of your Bad Boy Lawn Mower Parts can prevent fuel-related issues and improve engine performance. By shopping for Bad Boy Parts Online, you can easily place an order and have your parts delivered directly to your home. Plus, with Free Shipping On Orders Over $100, you can enjoy added savings when purchasing the parts you need. Keep your gas tank in top condition with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2015 CZT Elite - Gas Tank Assembly
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 026-0080-00 026-0080-00 - Rear Plate (See Models Used On For Details)
$229.99
3 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
7 067-5000-50 067-5000-50 - Right Fuel Tank (See Models Used On For Details)
$329.99
8 067-5001-50 067-5001-50 - Left Fuel Tank (See Models Used On For Details)
$329.99
9 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
10 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
11 025-2000-00 025-2000-00 -.380x.735x.470 Nylon Spacer
$2.99
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
16 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
17 079-3450-00 079-3450-00 - 2013-2017 Control Panel (See Models Used On For Details)
$31.22
18 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
22 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
23 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
24 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
25 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
26 042-9000-00 042-9000-00 - Ignition Key
$4.06
27 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
28 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
29 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
30 051-2013-00 051-2013-00 - 2013 ZT, 2013-2015 CZT Fuel Line Assembly
$36.84
31 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
32 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
33 073-8068-00 073-8068-00 - Fuel Line T
$9.70
34 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
35 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
36 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
37 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
39 067-6052-00 067-6052-00 - Rollover Valve-White (obsolete)
use part #067-6070-00
$24.60
40 067-4050-00 067-4050-00 - Fuel Gauge (See Models Used On For Details)
$46.00
41 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
42 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
43 067-0020-00 067-0020-00 - Carbon Canister
$62.40
44 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
45 089-3075-00 089-3075-00 - Folding ROPS For 2013-2015 CZT/ZT
$1099.99
47 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
48 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
49 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
50 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
