2015 CZT Elite - Seat Assembly

2015 CZT Elite - Seat Assembly

The 2015 CZT Elite Seat Assembly ensures your comfort while operating your mower. Over time, your seat may need repair or replacement due to wear and tear. BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts for the seat assembly on your 2015 CZT Elite. From the seat cushion to the frame, we have all the components you need to restore comfort and functionality. Our Bad Boy Mower Part Diagrams make it easy to locate the correct parts, ensuring that you can replace your seat efficiently. Keeping your Bad Boy Lawn Mower Parts in excellent condition is important not only for comfort but also for safety and performance. When you shop Bad Boy Parts Online, you’ll find everything you need, and with Free Shipping On Orders Over $100, you’ll enjoy even more savings on your purchase. Get back to mowing with a comfortable and secure seat from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

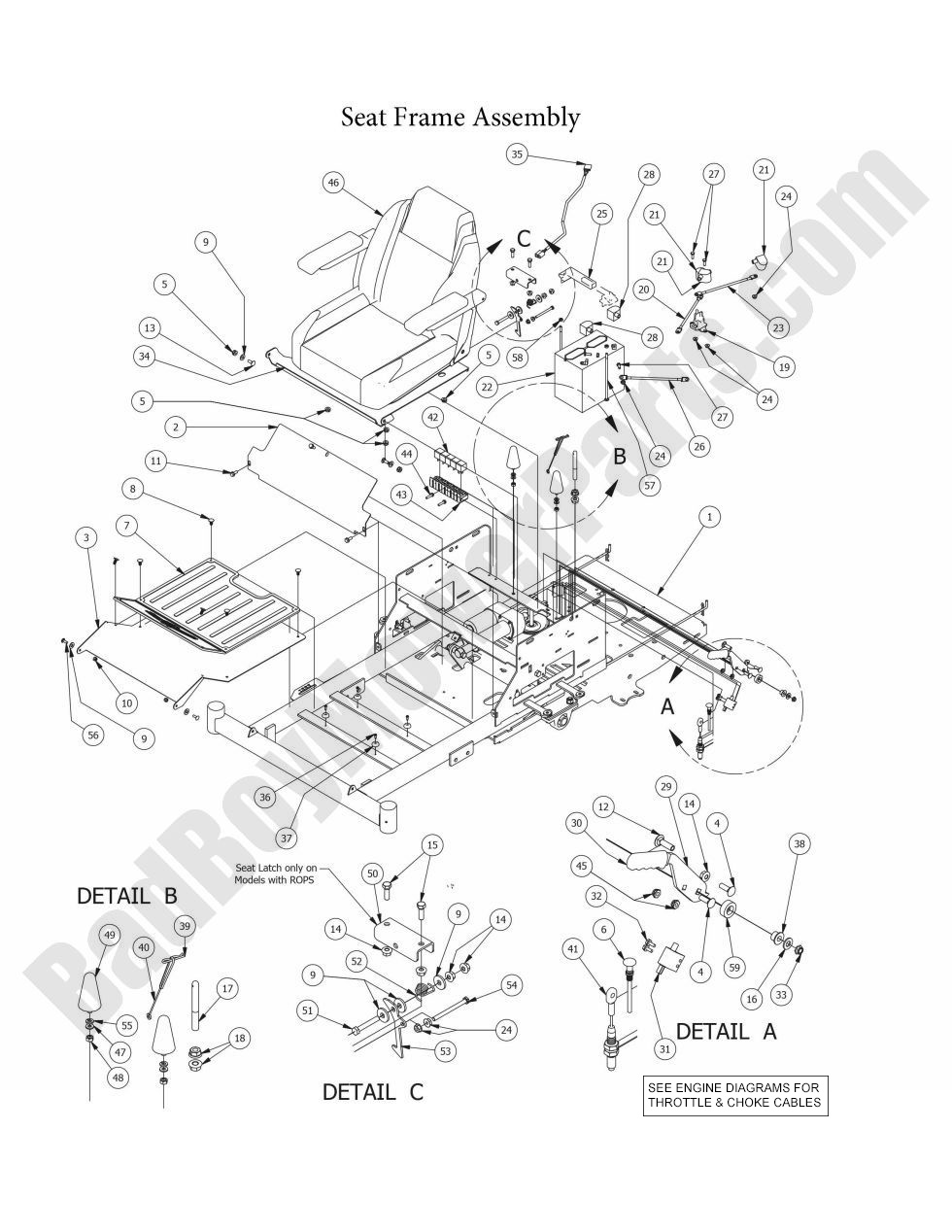

2015 CZT Elite - Seat Assembly
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99

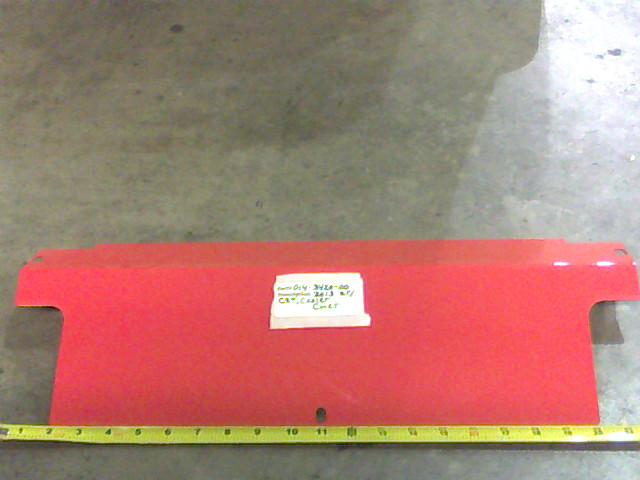

2 014-3420-00 014-3420-00 - 2013-2015 CZT & 2013-2016 ZT Elite Cooler Cover
$64.19
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 081-2010-00 081-2010-00 - 2010-2015 CZT & 2010-2013 ZT Floor Mat
$28.45
8 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
11 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
12 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
13 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
14 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
15 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
16 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
17 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
18 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
19 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
20 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
21 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
23 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
24 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
25 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
26 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
27 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
28 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
29 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
30 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
31 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
32 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
33 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
34 026-1013-00 026-1013-00 -Seat Plate (See Models Used On For Details)
$42.58
35 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
36 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
37 029-4010-00 029-4010-00 - Button Bumper
$2.99
38 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
39 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
40 064-1000-00 064-1000-00 - Seat Pin Lanyard
$5.49
41 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
42 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
43 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
44 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
45 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
46 071-2020-00 071-2020-00 - Black/Orange Seat 2018 & Older (See Models Used On For Details) (obsolete)
use part #071-2040-17
$559.99
47 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
48 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
49 034-1444-00 034-1444-00 - Rubber Cone (obsolete)
use part #034-8045-98
$29.80
50 039-2020-00 039-2020-00 - ZT/cZT Seat Latch Bracket
$21.39
51 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
52 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
53 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
54 018-2072-00 018-2072-00 - 1/4 x 3 Hex Bolt - Gr 8 - ACS
$2.99
55 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
56 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
57 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
58 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
59 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
