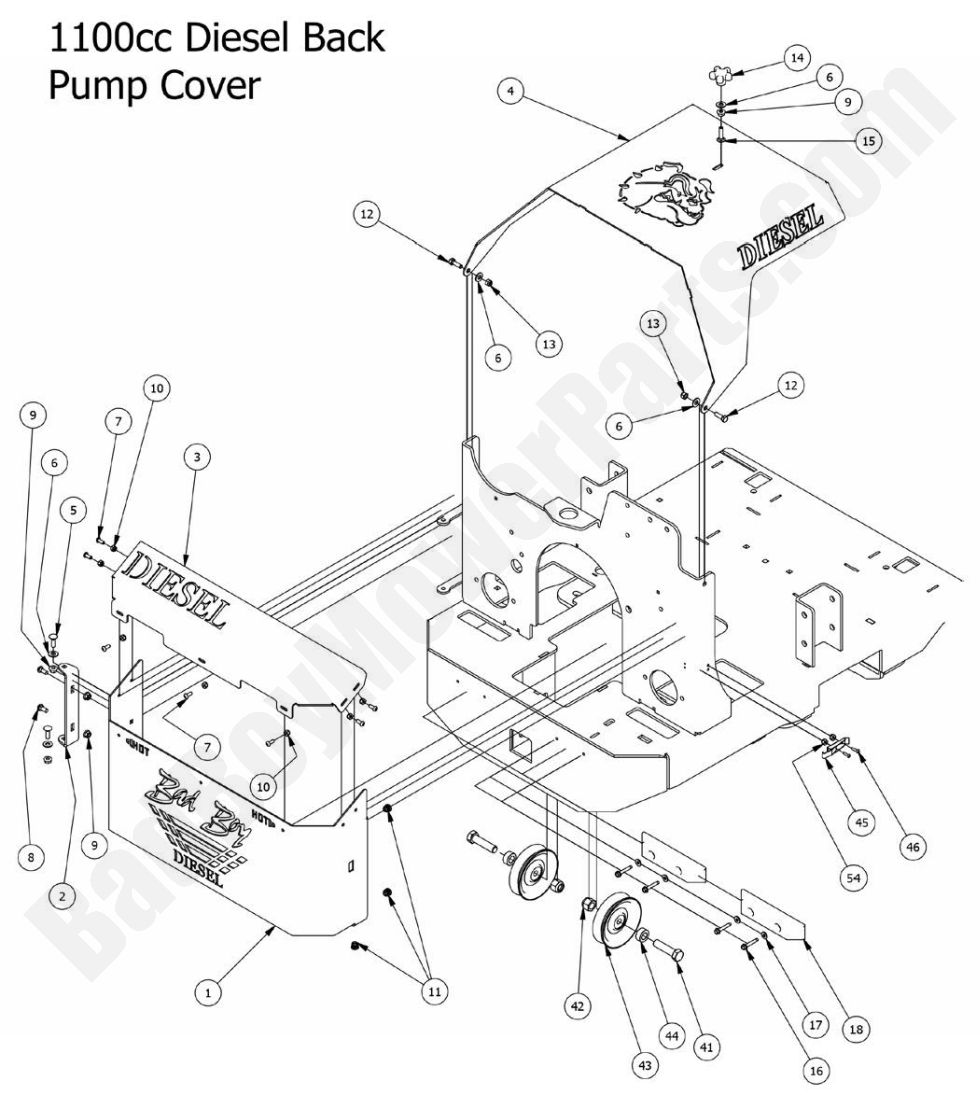

2015 Compact Diesel - Back Pump Cover

2015 Compact Diesel - Back Pump Cover

The 2015 Compact Diesel Back Pump Cover is a vital component that protects the hydraulic pump from debris and damage, ensuring smooth operation of your mower. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to keep your machine in top condition. Using our Bad Boy Mower Part Diagrams, you can easily find the correct back pump cover for your model. Proper maintenance of Bad Boy Lawn Mower Parts, including hydraulic components, prevents costly repairs and extends the life of your mower. Whether replacing a worn cover or upgrading for better protection, our selection of Bad Boy Parts Online has what you need. Designed for durability, these covers help shield vital parts from impact and contamination. Plus, take advantage of Free Shipping On Orders Over $100 for added savings. Keep your hydraulic system running smoothly with reliable parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2015 Compact Diesel - Back Pump Cover
  Position Number SKU Product Title Price
1 014-5920-00 014-5920-00 - Diesel Back Pump Cover 2008
$42.79
2 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
3 014-5921-00 014-5921-00 - Diesel Back Pump Cover - Top
$26.75
4 059-8020-00 059-8020-00 - 2008-2017 Diesel Hood 3 Cyl
$159.99
5 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
8 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
9 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
10 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
11 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
14 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
15 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
16 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
17 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
18 029-7038-00 029-7038-00 - 8 Bumper
$28.32
41 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
42 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
43 033-7025-00 033-7025-00 - 5 V Idler Pulley - BCVI-81 Frame Mounted AOS/Diesel
$28.39
44 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
45 052-3000-00 052-3000-00 - Steel Pump Cover Latch-Diesel 97-60-120-15
$29.95
46 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
54 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
