2015 Compact Diesel - Drive Arms

2015 Compact Diesel - Drive Arms

The 2015 Compact Diesel Drive Arms play a crucial role in maneuvering your mower efficiently, ensuring precise control and durability. If your mower's drive arms are showing signs of wear, BadBoyMowerParts.com has the Bad Boy Mower Parts you need for reliable replacement. Using our Bad Boy Mower Part Diagrams, you can easily identify the correct drive arm components for your machine. Keeping your Bad Boy Lawn Mower Parts in excellent shape prevents operational issues and extends your mower’s lifespan. Whether you need a new drive arm assembly or bushings, we stock everything under Bad Boy Parts Online. Upgrading your drive arms restores your mower’s responsiveness, improving performance on any terrain. Plus, take advantage of Free Shipping On Orders Over $100, making part replacements even more affordable. Shop at BadBoyMowerParts.com for the highest quality drive arm replacements and keep your mower moving smoothly.

Bad Boy Mower Parts Lookup

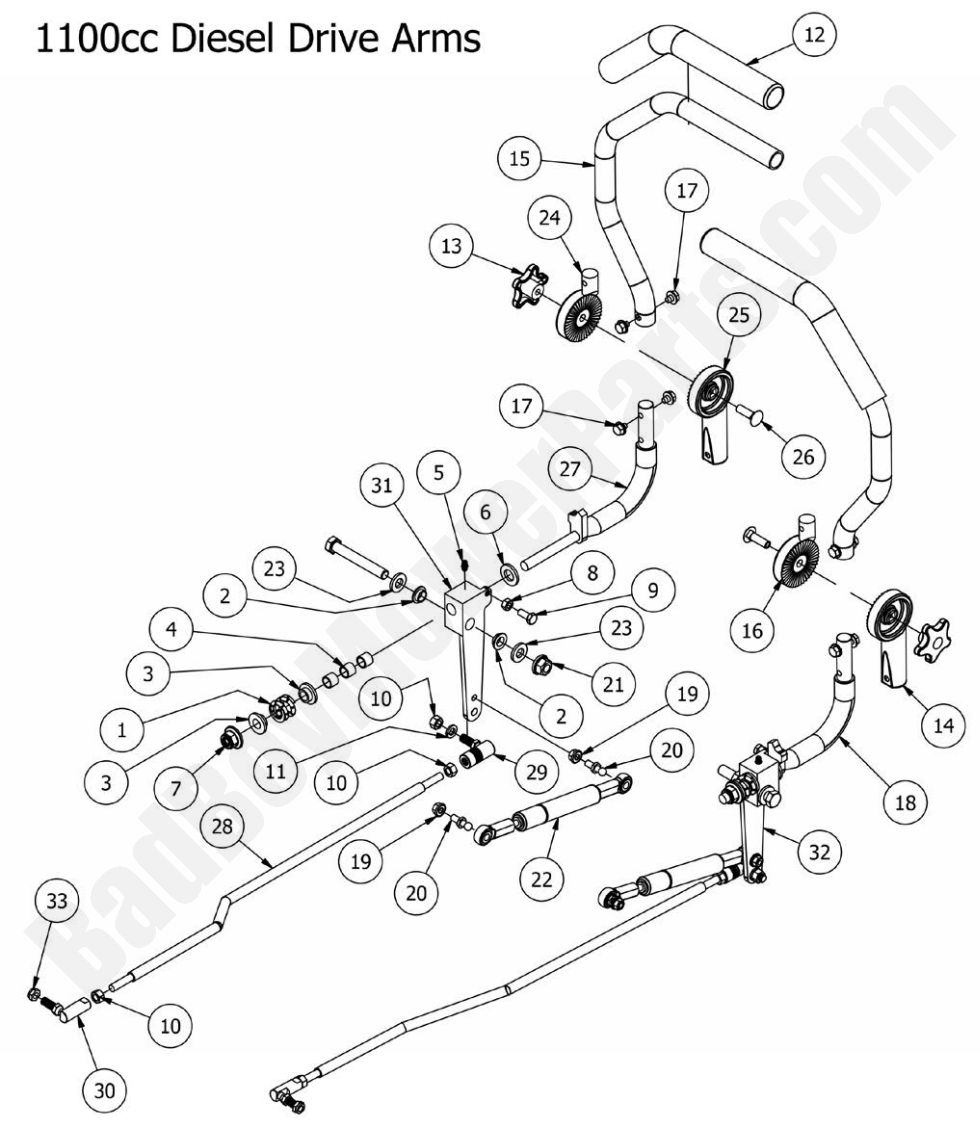

2015 Compact Diesel - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
10 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
11 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
12 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
13 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
14 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
15 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
16 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
17 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
18 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
19 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
20 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
21 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
22 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
23 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
24 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
25 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
26 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
27 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
28 035-6060-00 035-6060-00 - Steering Push Rod (See Models Used On For Details)
$35.67
29 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
30 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
31 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
32 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
33 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
