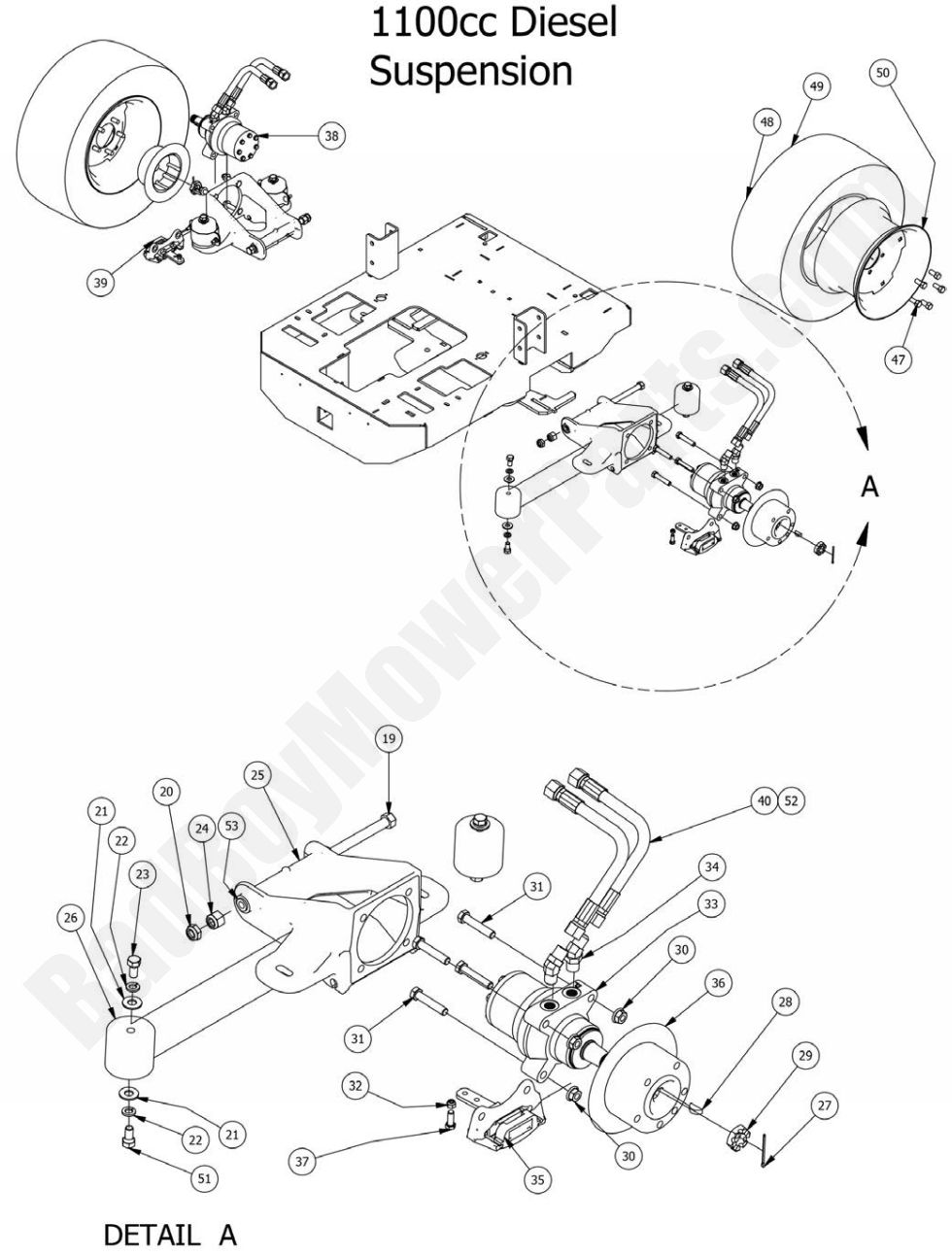

2015 Compact Diesel - Wheel Motor & Suspension

2015 Compact Diesel - Wheel Motor & Suspension

The 2015 Compact Diesel Wheel Motor & Suspension system plays a crucial role in maintaining smooth maneuverability and stability on rough terrain. If your wheel motor is malfunctioning or your suspension is worn, prompt replacement is essential for optimal performance. BadBoyMowerParts.com provides top-tier Bad Boy Mower Parts, including high-quality wheel motors and suspension components. Our Bad Boy Mower Part Diagrams simplify the process of finding the right parts for your mower. Keeping Bad Boy Lawn Mower Parts like the wheel motor in good condition ensures smooth operation and extended mower life. Shop from our selection of Bad Boy Parts Online to find the perfect fit for your machine. Best of all, we offer Free Shipping On Orders Over $100, making repairs more convenient and affordable. Trust BadBoyMowerParts.com for all your wheel motor and suspension replacement needs, ensuring superior mower performance.

Bad Boy Mower Parts Lookup

2015 Compact Diesel - Wheel Motor & Suspension
  Position Number SKU Product Title Price
19 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
20 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
21 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
24 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
25 070-8000-00 070-8000-00 - Suspension Kit Wheel Motor (See Models Used On For Details)
$291.91
26 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
27 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
28 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
29 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
30 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
31 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
32 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
33 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
34 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting
$17.02
35 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
36 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
37 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
38 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
39 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
40 051-2080-00 051-2080-00 - 26" Hydraulic Hose Assembly w/Adaptors
$145.95
47 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
48 022-7031-00 022-7031-00 - 26x12.00-12 Orange Wheel and Tire Assembly
$428.99
49 022-7032-00 022-7032-00 - 26x12.00-12 Tire (One Tire Only)
$309.99
50 022-7034-00 022-7034-00 - 12 x 10.5 Wheel - AOS/Diesel Rear
$219.99
51 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
52 051-6085-00 051-6085-00 - 26" Hydro Hose Only
$40.53
53 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
