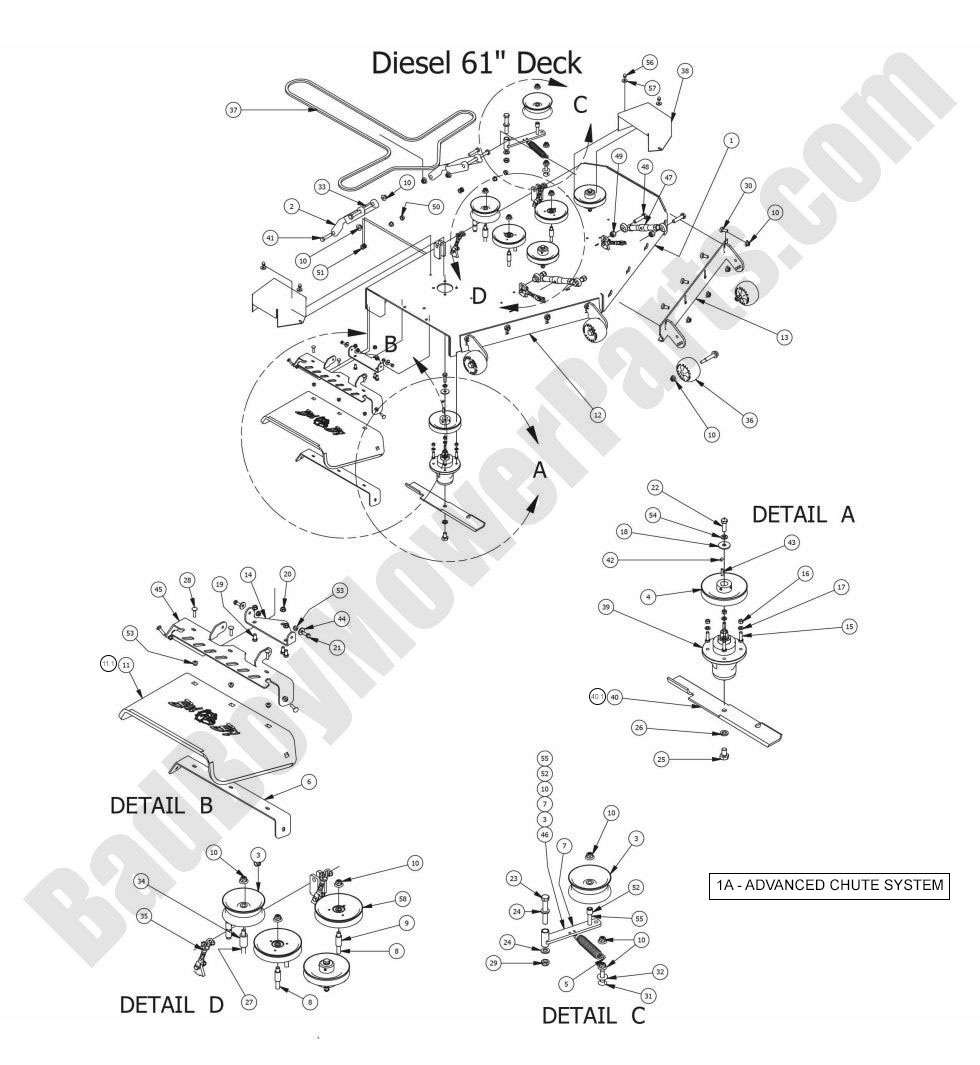

2015 Diesels - 61" Deck Assembly

2015 Diesels - 61" Deck Assembly

The 2015 Diesels 61" Deck Assembly is crucial for maintaining the cutting performance of your mower, and BadBoyMowerParts.com offers top-quality Bad Boy Mower Parts to keep it in excellent condition. From pulleys to spindles, we offer all the essential Bad Boy Lawn Mower Parts necessary to ensure your deck functions smoothly. With our helpful Bad Boy Mower Part diagrams, locating the right components for your deck assembly is fast and easy. Whether you're performing regular maintenance or replacing worn-out parts, our online store makes it simple to order everything you need. By shopping Bad Boy Parts Online, you can find exactly what you need for your mower deck in no time. We also offer Free Shipping On Orders Over $100, making it more affordable to keep your mower running at peak performance. Whether you’re looking to upgrade or replace the 2015 Diesels 61" Deck Assembly, you can trust BadBoyMowerParts.com for top-quality parts and service.

Bad Boy Mower Parts Lookup

2015 Diesels - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-6130-00 060-6130-00 - 2012-2018 61" AOS Diesel (35hp, 1500CC) Deck Shell
$1199.99
2 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
3 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
4 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
5 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
6 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
7 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
8 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
9 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
10 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
11.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
11 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
12 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
13 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
14 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
20 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
21 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
22 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
23 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
26 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
27 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
30 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
31 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
32 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
33 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
34 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
35 047-4000-00 047-4000-00 - 4 - Link Adjustable Deck Hanger - Pup Models (obsolete)
use part #046-6048-98
$32.09
36A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
36 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
37 041-0236-00 041-0236-00 - B236 Deck Belt for 61" 35hp Diesel (2012-2020 Only)
$109.99
38 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
39 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
40.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
40 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
41 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
42 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
45 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
46 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08
47 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
48 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
49 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
50 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
51 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
52 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
53 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
54 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
55 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
56 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
57 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
58 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
