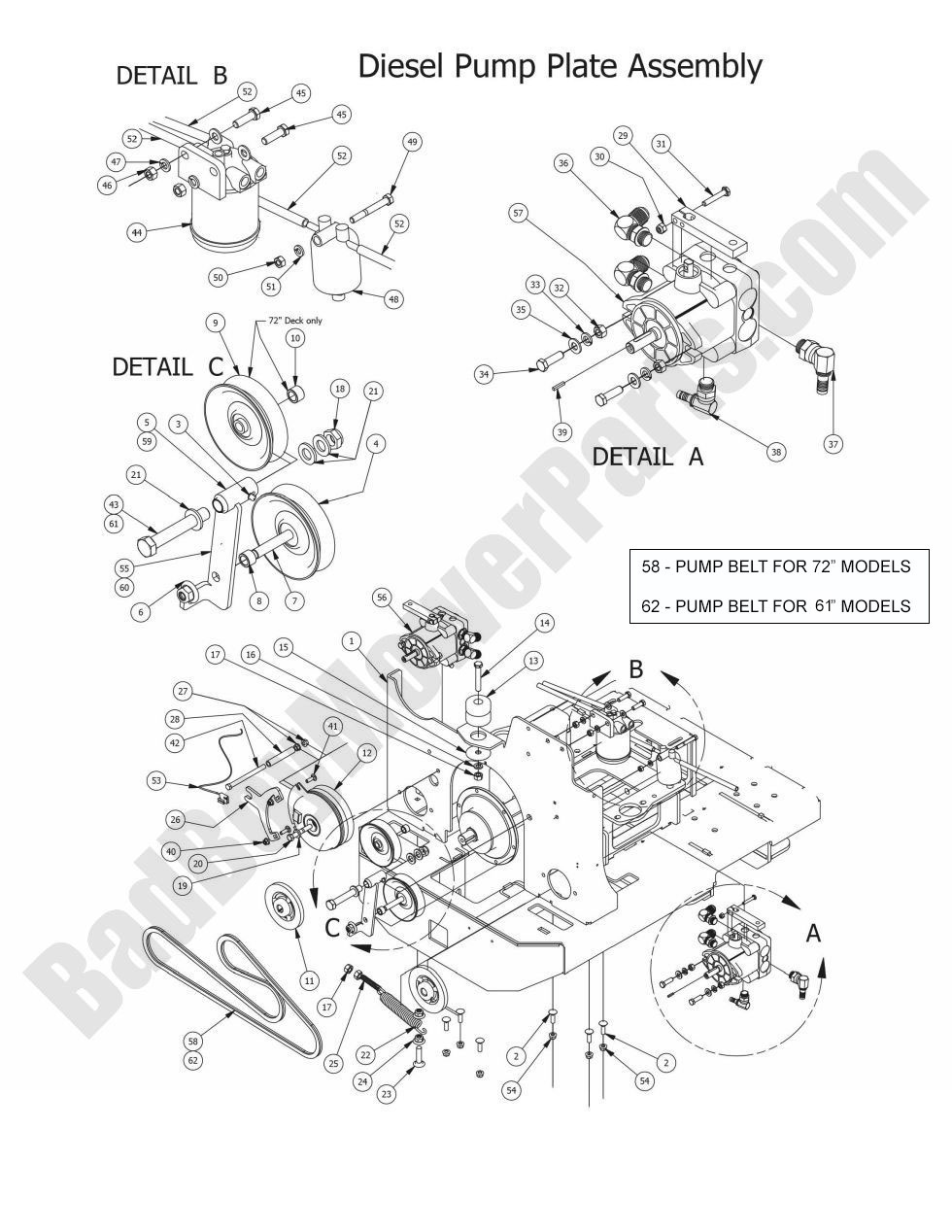

2015 Diesels - Pump Plate Assembly

2015 Diesels - Pump Plate Assembly

The 2015 Diesels Pump Plate Assembly is an important part of your mower's pump system, ensuring proper operation and power transmission. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to replace or upgrade your pump plate assembly. Whether you're experiencing issues with your current pump plate or just performing regular maintenance, we have the Bad Boy Lawn Mower Parts you need. Our website features detailed Bad Boy Mower Part diagrams to help you quickly locate the correct pump plate for your 2015 Diesels model. Shopping Bad Boy Parts Online is easy, and you’ll find everything you need with just a few clicks. Plus, we offer Free Shipping On Orders Over $100, making it even more affordable to maintain your mower. Trust BadBoyMowerParts.com to provide the highest-quality pump plate assembly for your 2015 Diesels mower and all other essential parts.

Bad Boy Mower Parts Lookup

2015 Diesels - Pump Plate Assembly
  Position Number SKU Product Title Price
1 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 039-5950-00 039-5950-00 - Pump Idler Bracket 60 Diesel
$32.65
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
8 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
9 033-4050-00 033-4050-00 - 5" V Idler 35hp Diesel
$37.79
10 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
11 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
12 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
13 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
15 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
16 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
17 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
19 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
20 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
21 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
22 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
23 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
25 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
26 057-5910-10 057-5910-10 - 2010-2020 Diesel PTO Engager Holder
$22.71
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
29 031-5923-00 031-5923-00 - Pump Arm
$30.07
30 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
31 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
32 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
33 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
34 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
35 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
36 024-2080-00 024-2080-00 - 90 Degree Adaptor-Diesel Models (See Models Used On For Details)
$9.67
37 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
38 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
39 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
40 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
41 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
42 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt -
$2.99
43 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
44 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
45 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
48 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
49 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
50 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
51 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
52 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
53 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
54 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
55 039-5946-98 039-5946-98 - Pump Idler Bracket Assy Diesel
$56.77
56 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
57 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
58 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
59 039-5945-00 039-5945-00 - Diesel Pump Idler 72 (35HP)
$32.65
60 039-5945-98 039-5945-98 - Pump Idler 72" (35HP) Assy (See Models Used On For Details)
$56.77
61 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
62 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
