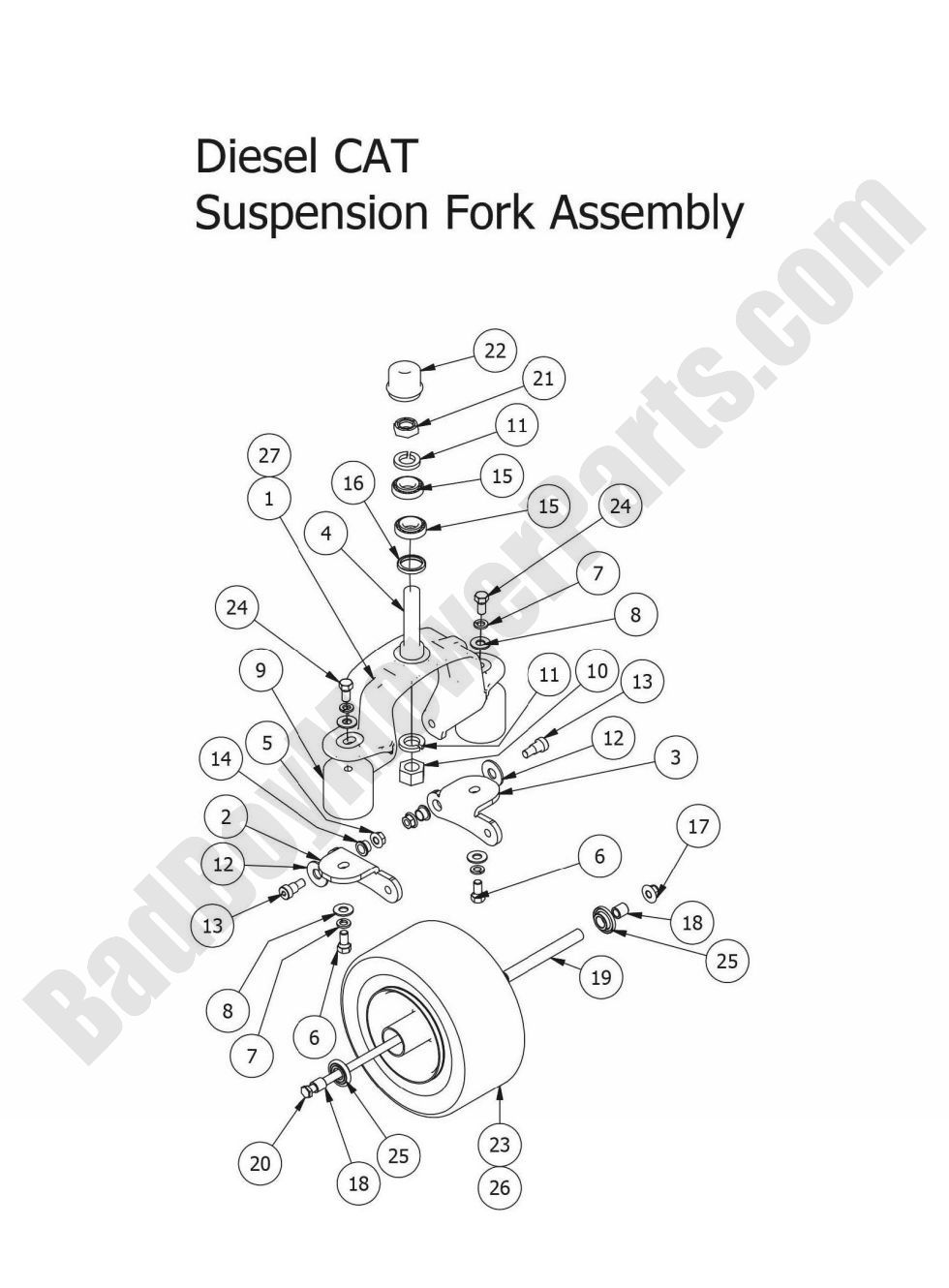

2015 Diesels - Suspension Fork Assembly

2015 Diesels - Suspension Fork Assembly

The 2015 Diesels Suspension Fork Assembly is vital for providing a smooth ride over rough and uneven surfaces. It ensures that your mower maintains stability and comfort, even when navigating challenging terrains. At BadBoyMowerParts.com, we offer a wide selection of high-quality Bad Boy Mower Parts that keep your mower in top working order. Whether you are replacing a damaged fork assembly or upgrading your existing components, you can find the right parts using our easy-to-navigate Bad Boy Mower Part diagrams. Our inventory of Bad Boy Lawn Mower Parts includes the 2015 Diesels Suspension Fork Assembly and many other essential parts. Shopping Bad Boy Parts Online is convenient, and we offer Free Shipping On Orders Over $100 for added savings. Get the parts you need to maintain your mower’s performance and durability with ease from BadBoyMowerParts.com, where you can trust in our reliable parts and exceptional customer service.

Bad Boy Mower Parts Lookup

2015 Diesels - Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
9 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
10 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
11 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
14 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
15A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
15 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
16A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
16 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
20 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
22 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
24 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
25 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
26 022-1050-00 022-1050-00 - 13 x 6.50-6 No-Flat Tire and Wheel Assembly
$177.99
27 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
