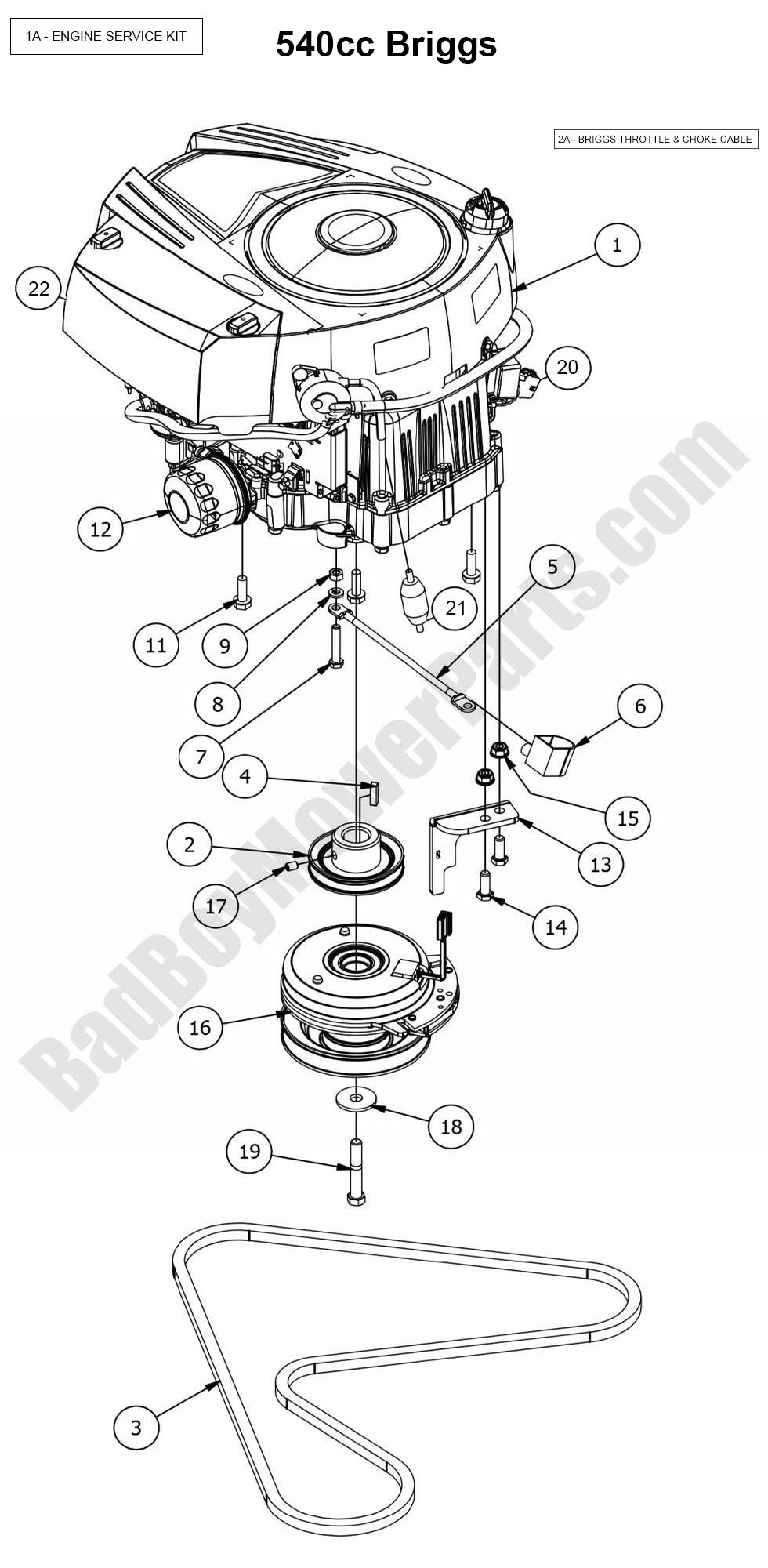

2015 MZ - Engine - Briggs 540

2015 MZ - Engine - Briggs 540

When your 2015 MZ mower is powered by the Briggs 540 engine, you know you're getting the durability and performance needed for tough mowing tasks. If your engine requires replacement parts or repairs, BadBoyMowerParts.com is your go-to destination. We offer a vast selection of Bad Boy Mower Parts, including those specifically for the Briggs 540 engine. With our Bad Boy Mower Part diagrams, you can easily find the exact parts you need to keep your mower running smoothly. We understand how important it is to have high-quality Bad Boy Lawn Mower Parts for your engine, which is why we only carry the best products. Plus, you’ll get Free Shipping On Orders Over $100 to help you save on all your mower needs. Don’t settle for less—order your replacement engine parts from Bad Boy Parts Online and experience the difference in quality and service.

Bad Boy Mower Parts Lookup

2015 MZ - Engine - Briggs 540
  Position Number SKU Product Title Price
1A 063-2000-08 063-2000-08 - MZ Briggs Intek 21HP Engine Service Kit
$94.79
1 015-0021-00 015-0021-00 - 540cc Briggs Intek Engine-MZ
$1799.99
2A 055-3021-00 055-3021-00 - 25" Throttle Cable for Briggs Smart Choke Engines
$48.14
2 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
3 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
4 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
5 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
6 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
11 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 063-8018-00 063-8018-00 - Oil Filter
$21.39
13 039-1220-00 039-1220-00 - Warner Clutch Bracket For MZ and Magnums
$12.63
14 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
15 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 070-0050-00 070-0050-00 - 2015 & 2016 MZ/Magnum PTO Clutch
$252.05
17 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
20 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
21 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
22 063-4026-00 063-4026-00 - 21hp Briggs Air Filer and Pre-cleaner - MZ
$39.04
