2015 MZ Frame

Frame

BadBoyMowerParts.com has the parts diagrams for the 2015 MZ models. Find all of your Bad Boy parts for your 2015 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 MZ Frame. If you are not able to find the Bad Boy parts for your 2015 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

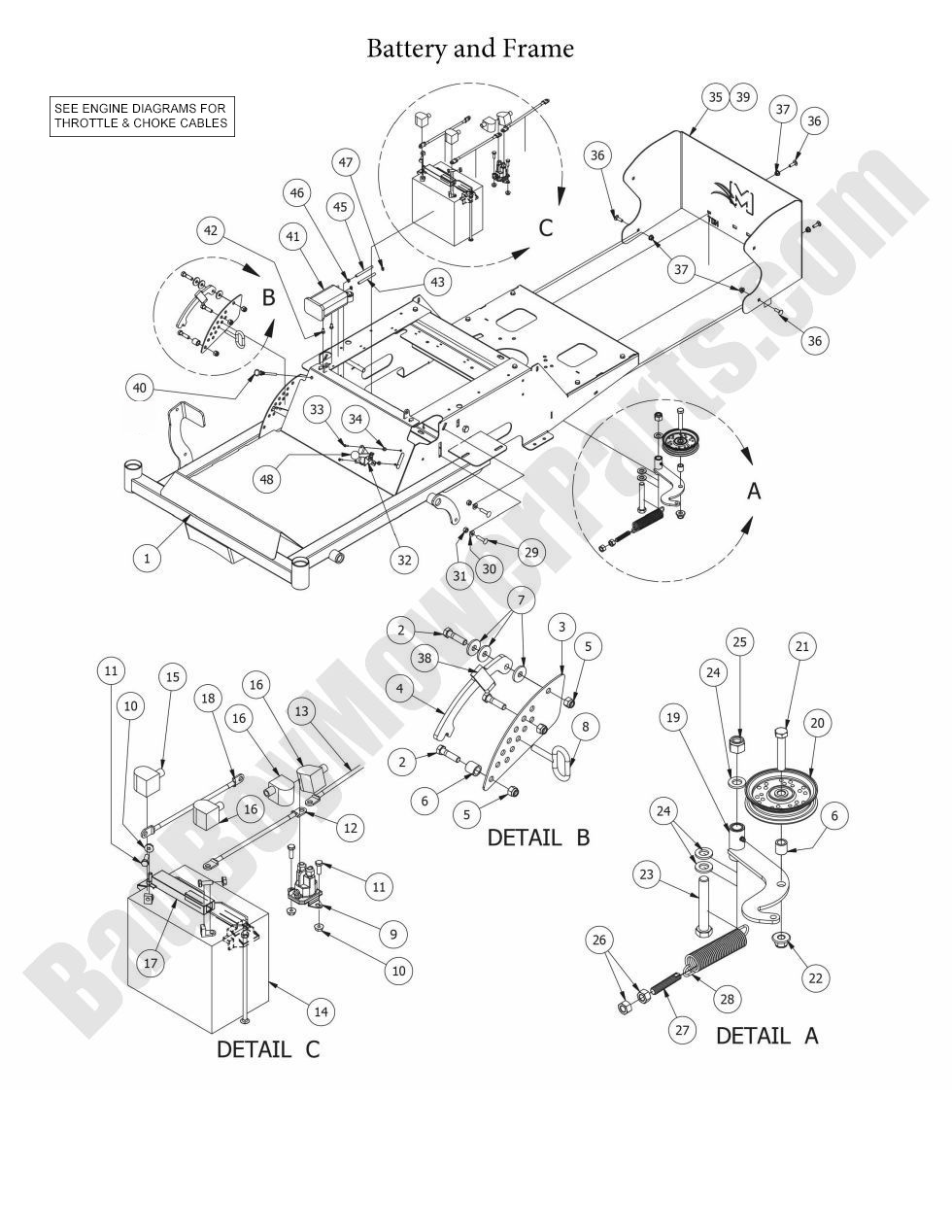

2015 MZ Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5800-00 070-5800-00 - 2012-2016 MZ, 2013-2016 MZ Magnum Frame
$1563.84
2 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
3 026-2020-00 026-2020-00 - MZ Height Indicator Plate
$14.11
4 031-1050-00 031-1050-00 - 2010-2016 MZ, 2013-2016 MZ Magnum Deck Level Lock Lever
$31.23
5 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
6 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
7 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
8 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
9 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
10 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
12 064-0025-00 064-0025-00 - 10 inch Red Cable
$11.34
13 064-0050-00 064-0050-00 - 62 inch Red Cable - MZ
$21.39
15 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
16 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
17 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
18 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
19 039-7000-00 039-7000-00 - MZ Pump Idler Arm Bracket
$38.32
20 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
21 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
22 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
26 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
27 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
28 034-9050-00 034-9050-00 - Idler/Deck Spring - Big Diameter
$17.11
29 018-0001-00 018-0001-00 - 3/8-16 X 1-1/2 Short Neck Carr iage Bolt
$2.99
30 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
31 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
32 064-8057-00 064-8057-00 - Brake Cable for MZ (See Models Used On For Details)
$49.96
33 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
34 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
35 026-0110-00 026-0110-00 - MZ Rear Plate (27BS/26KA/22KA)
$88.99
36 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
37 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
38 014-2051-00 014-2051-00 - Deck Height Handle Grip MZ
$2.99
41 067-0015-00 067-0015-00 - Carbon Canister for Magnum/MZ RY320CC
$46.78
42 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt 8.8
$2.99
43 051-2025-00 051-2025-00 - 2015-2016 MZ/MZ Magnum 3/16" EPA Air Line 61"
$14.19
45 051-2023-00 051-2023-00 - 2015 MZ 3/16" EPA Air Line 52"
$10.99
46 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
47 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
48A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
48 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
