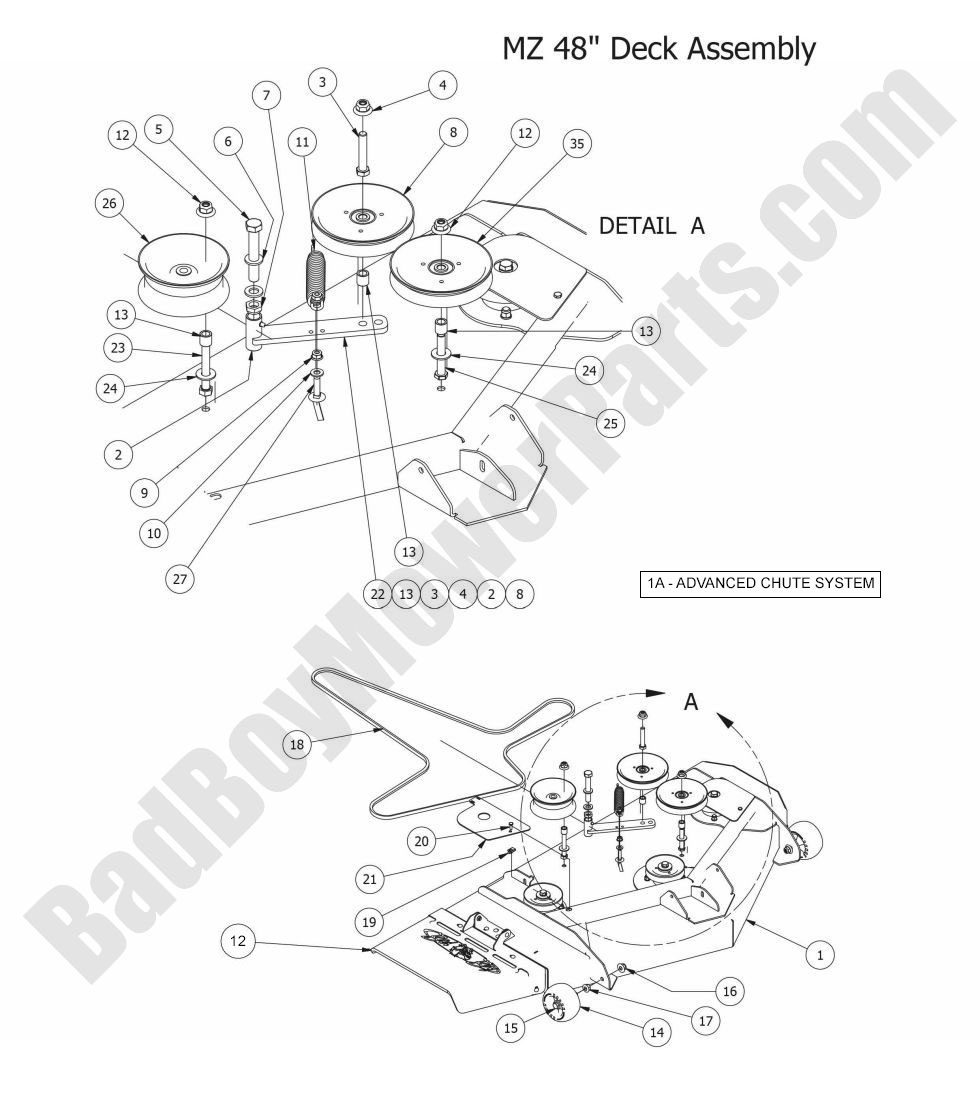

2015 MZ Magnum - 48" Deck Assembly

2015 MZ Magnum - 48" Deck Assembly

The 2015 MZ Magnum 48" Deck Assembly plays a pivotal role in the overall performance of your mower. If your deck assembly is damaged or worn out, replacing it with high-quality parts is essential to maintain cutting efficiency. At BadBoyMowerParts.com, we offer a complete selection of Bad Boy Mower Parts, including the 2015 MZ Magnum 48" Deck Assembly. With the help of our Bad Boy Mower Part diagrams, you can quickly identify the components you need to repair or replace. We provide everything you need to keep your mower performing like new, including replacement parts for spindles, pulleys, and more. When you shop with us, enjoy Free Shipping On Orders Over $100, so you can keep your mower in peak condition without breaking the bank. For all your Bad Boy Lawn Mower Parts, visit Bad Boy Parts Online.

Bad Boy Mower Parts Lookup

2015 MZ Magnum - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1 060-2000-00 060-2000-00 - 2010-2016 48" MZ Deck - Shell Only
$1194.83
2 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
3 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
8 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
11 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
12 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
13 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
14A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
14 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
15 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
17 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
18 041-6027-00 041-6027-00 - B128 Deck Belt for 2010-2016 48" MZ & MZ Magnum & 2020 - 2023 Walk-Behind 54"
$80.24
19 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
20 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
21 014-4850-00 014-4850-00 - 2010-2016 MZ/MZ Magnum Pulley Cover - 48"
$28.39
22 039-7001-98 039-7001-98 - MZ DECK IDLER ASSEMBLY
$56.77
23 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
24 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
25 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
26 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
27 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
