2015 MZ Magnum - Axle Assembly

2015 MZ Magnum - Axle Assembly

The 2015 MZ Magnum Axle Assembly is crucial for ensuring that your mower operates smoothly and efficiently. A faulty or damaged axle can lead to uneven mowing and affect the overall functionality of your machine. At BadBoyMowerParts.com, we carry a wide selection of Bad Boy Mower Parts, including the 2015 MZ Magnum Axle Assembly, to help you maintain or repair your mower. Our Bad Boy Mower Part diagrams make it easy to locate the exact parts you need for your mower's axle system. We are committed to offering high-quality Bad Boy Lawn Mower Parts that are designed to last, ensuring that your mower performs like new. Plus, when you shop with us, you’ll get Free Shipping On Orders Over $100, making it even easier to get the parts you need for your 2015 MZ Magnum. Shop now at Bad Boy Parts Online.

Bad Boy Mower Parts Lookup

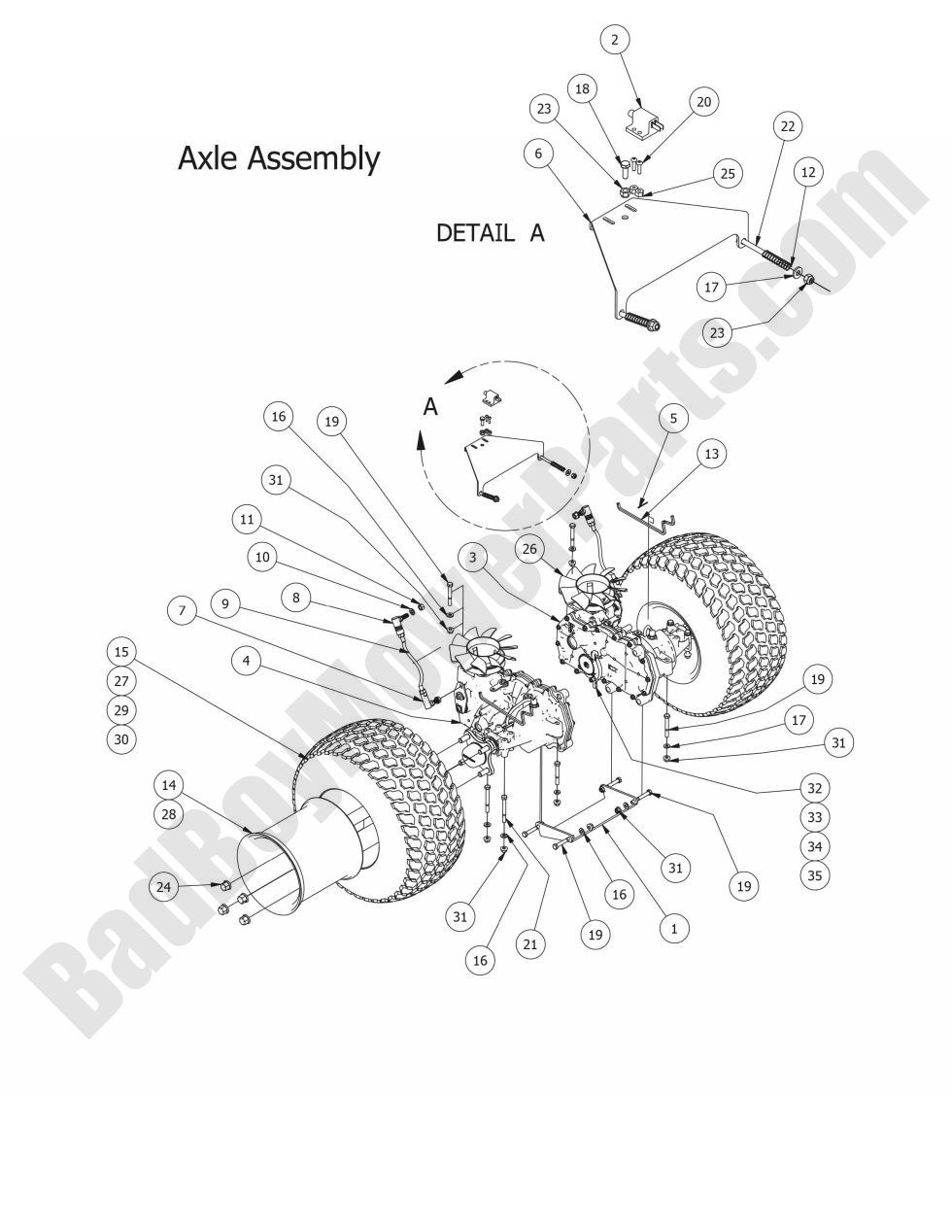

2015 MZ Magnum - Axle Assembly
  Position Number SKU Product Title Price

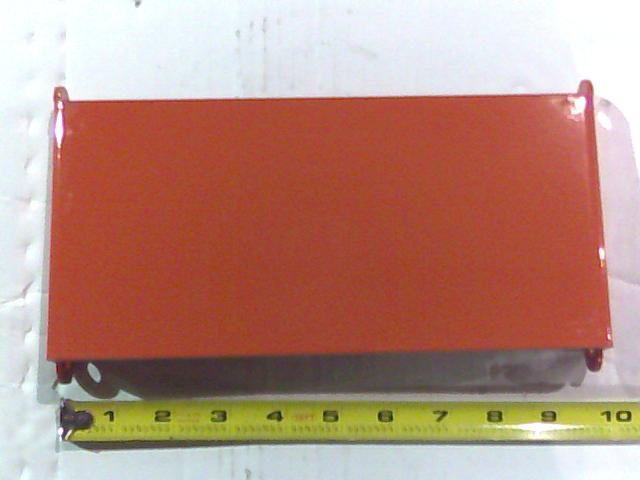

1 201-2020-00 201-2020-00 - MZ Transaxle Support (Lower)
$19.81
2 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99

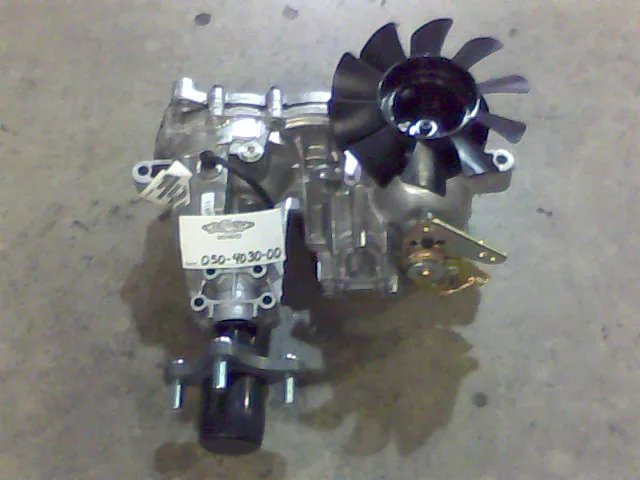

3 050-4030-00 050-4030-00 - EZT - Right - MZ Models ZC-APBB-3DKB-1FPX
$999.99

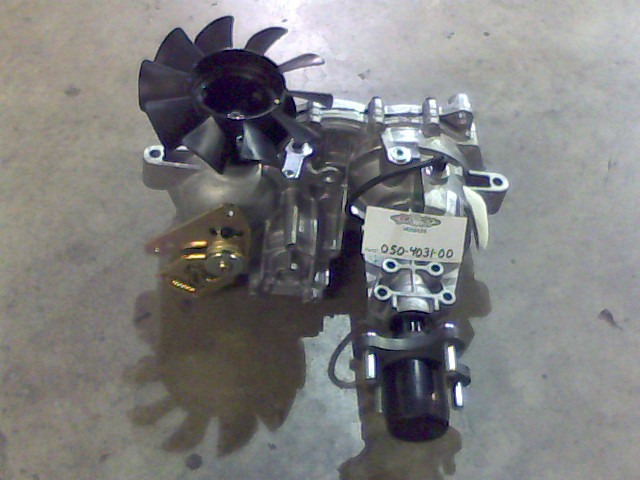

4 050-4031-00 050-4031-00 - EZT - Left Transaxle- MZ Models ZC-DPBB-3DKC-1FPX
$999.99
5 040-2025-00 040-2025-00 - Cotter Pin-Brake Bar on MZ
$2.99

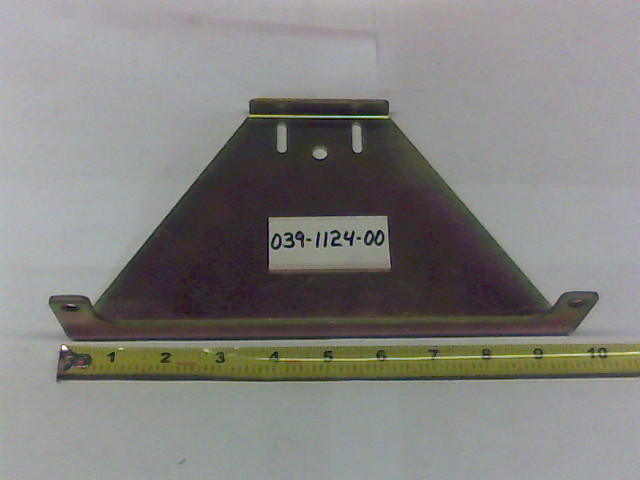

6 039-1124-00 039-1124-00 - Brake Lock Bracket
$9.89
7 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
8 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89

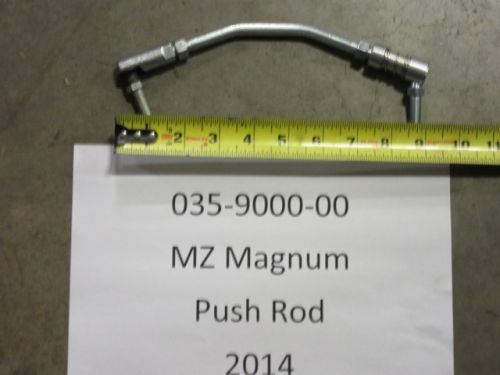

9 035-9000-00 035-9000-00 - MZ/Magnum Push Rod - Also replaces part numbers 035-8001-00 - 035-8000-00
$22.64
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
12 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99

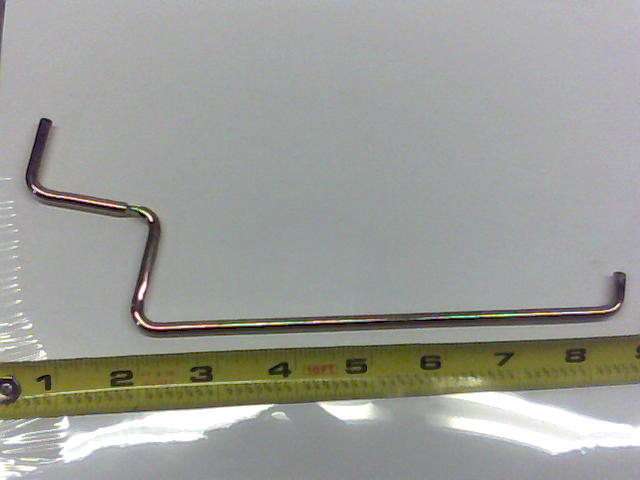

13 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28

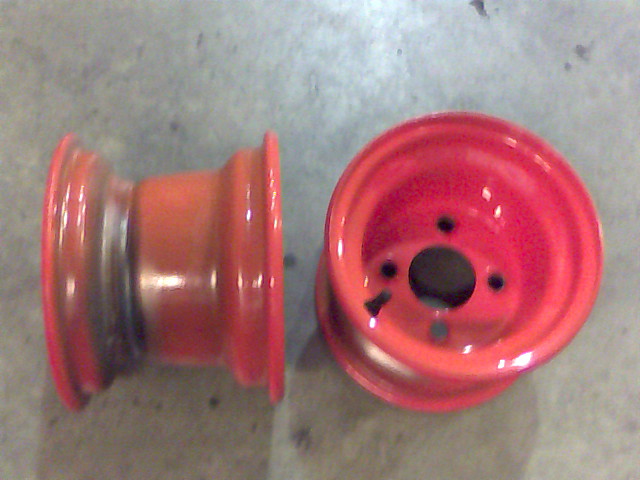

14 022-8026-00 022-8026-00 - Rear Wheel 48in MZ (One Rim Only)
$106.19

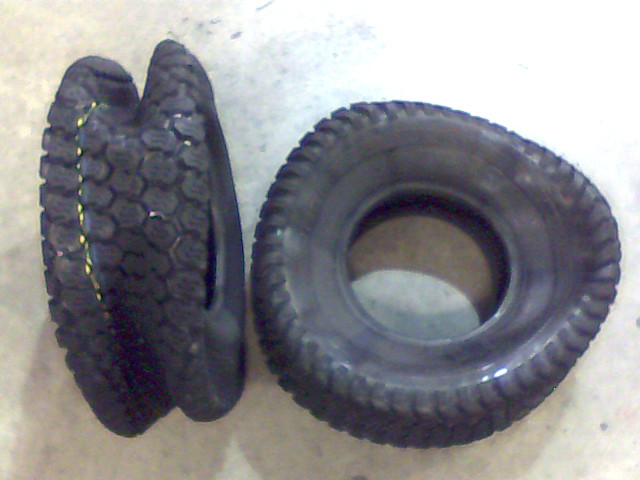

15 022-8025-00 022-8025-00 - 18x9.50-8 Rear Tire Only (One Tire Only)
$197.99
16 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
17 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
18 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
19 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
22 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
23 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
24 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
25 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99

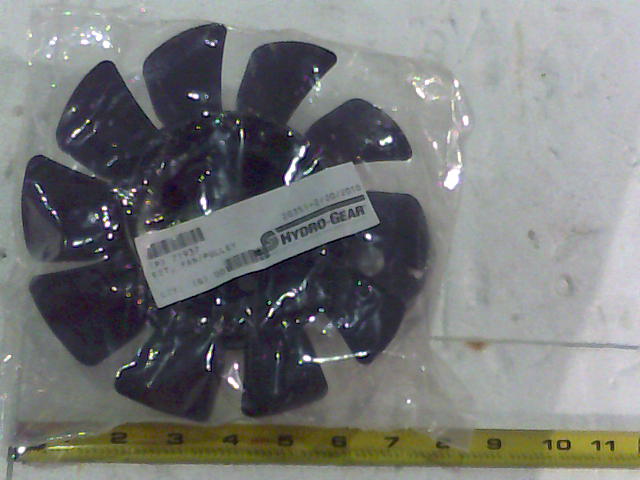

26 050-2074-00 050-2074-00 - Fan/Pulley Kit for 2012-2016 MZ/MZ Magnum
$65.26

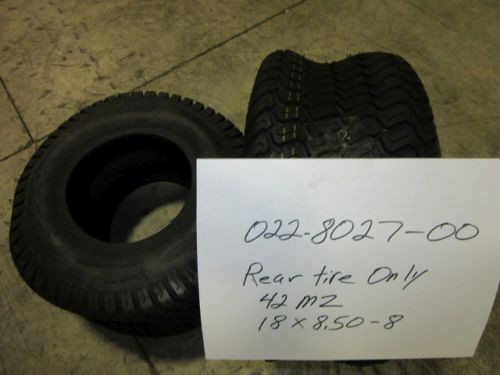

27 022-8027-00 022-8027-00 - 18x8.50-8 Rear Tire Only 42 MZ (One Tire Only)
$136.99

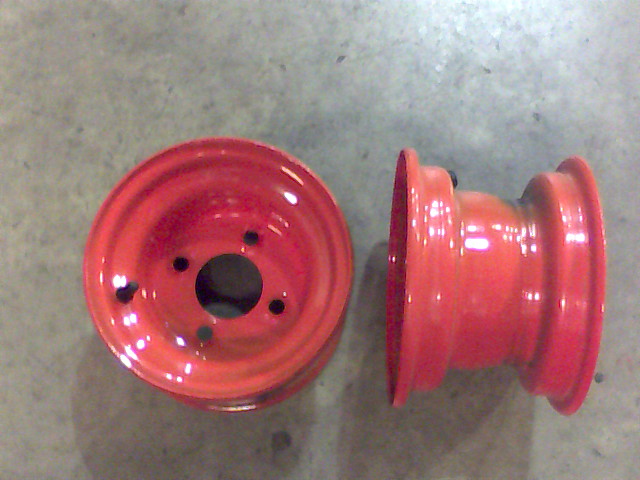

28 022-8028-00 022-8028-00 - Rear Wheel 42in MZ (One Rim Only)
$85.27
29 022-8050-00 022-8050-00 - 18x9.50-8 Tire and Wheel Assembly (One Tire & Rim Assy)
$229.99
31 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99

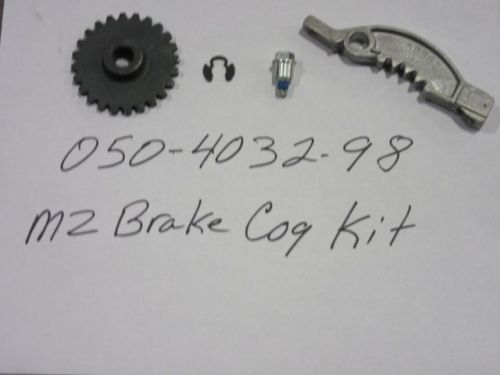

32 050-4032-98 050-4032-98 - MZ Brake Cog Kit (See Models Used On For Details)
$65.27

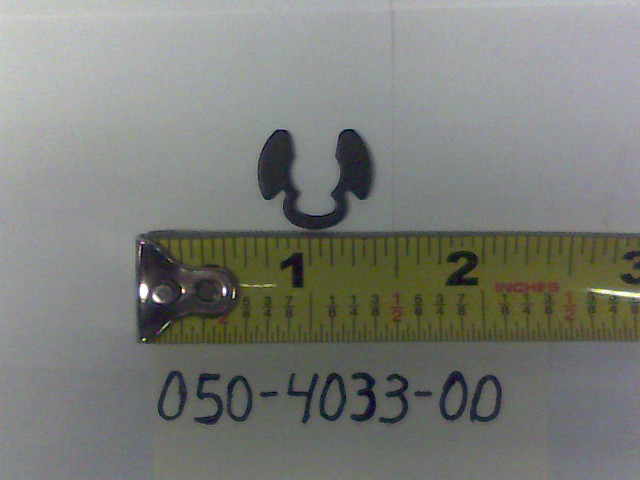

33 050-4033-00 050-4033-00 - MZ Retainer Ring for Brake
$19.86

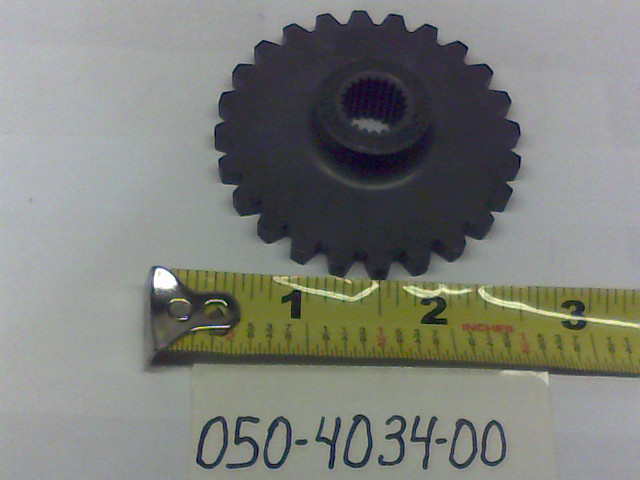

34 050-4034-00 050-4034-00 - MZ Brake Gear Hydro Gear
$32.78

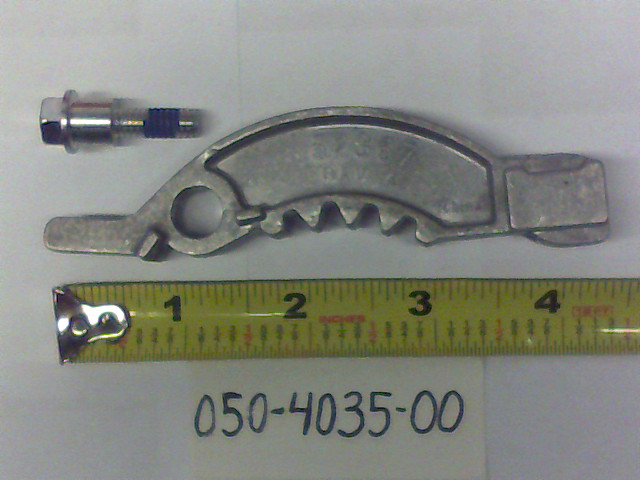

35 050-4035-00 050-4035-00 - MZ Brake Arm Kit
$24.97
