2015 MZ Magnum - Frame

2015 MZ Magnum - Frame

The 2015 MZ Magnum Frame is a crucial structural component of your mower. If the frame becomes damaged or bent, it can lead to serious performance issues. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts to repair or replace your mower’s frame. Whether you need a new frame or just specific components, we’ve got you covered. Our Bad Boy Mower Part diagrams help you identify the correct parts for your 2015 MZ Magnum. All of our parts are durable and designed to meet the high standards that Bad Boy mowers are known for. We offer a convenient online shopping experience at Bad Boy Parts Online, where you can find everything you need for your 2015 MZ Magnum. Plus, with Free Shipping On Orders Over $100, your frame parts will arrive quickly and at no additional cost.

Bad Boy Mower Parts Lookup

2015 MZ Magnum - Frame
  Position Number SKU Product Title Price
1A 070-5900-00 070-5900-00 - 2014 - 2016 54" MZ Magnum Frame
$1461.53
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5800-00 070-5800-00 - 2012-2016 MZ, 2013-2016 MZ Magnum Frame
$1461.53
2 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
3 026-2020-00 026-2020-00 - MZ Height Indicator Plate
$14.11
4 031-1050-00 031-1050-00 - 2010-2016 MZ, 2013-2016 MZ Magnum Deck Level Lock Lever
$31.23
5 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
6 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
7 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
8 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
9 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
10 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 064-0025-00 064-0025-00 - 10" Red Battery Cable
$13.90
13 064-0050-00 064-0050-00 - 62" Red Battery Cable
$21.39
15 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
16 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
17 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
18 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
19 039-7000-00 039-7000-00 - MZ Pump Idler Arm Bracket
$38.32
20 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
21 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
22 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
26 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
27 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
28 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
29 018-0001-00 018-0001-00 - 3/8-16 X 1-1/2 Short Neck Carriage Bolt
$2.99
30 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
31 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
32 064-8057-00 064-8057-00 - Brake Cable for MZ (See Models Used On For Details)
$49.96
33 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
34 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99

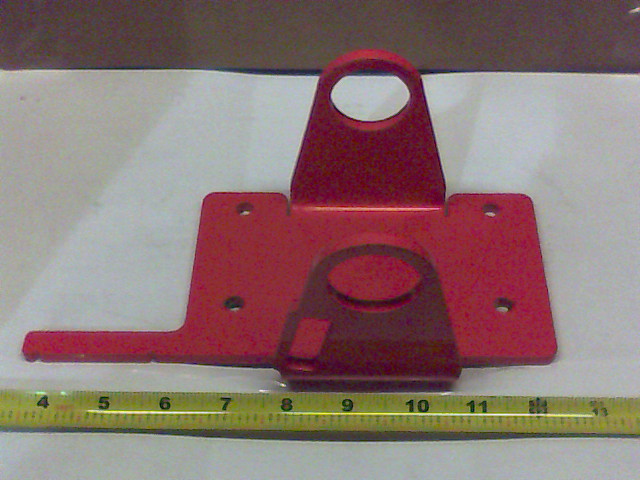

35 026-0010-00 026-0010-00 - Mounting Plate (foot assist)
$21.39
36 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
37 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
38 014-2051-00 014-2051-00 - Deck Height Handle Grip MZ
$2.99
39 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
40 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
41 051-2025-00 051-2025-00 - 2015-2016 MZ/MZ Magnum 3/16" EPA Air Line 61"
$14.19
43 051-2023-00 051-2023-00 - 2015 MZ 3/16" EPA Air Line 52"
$10.99
44 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
45 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
46A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
46 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
