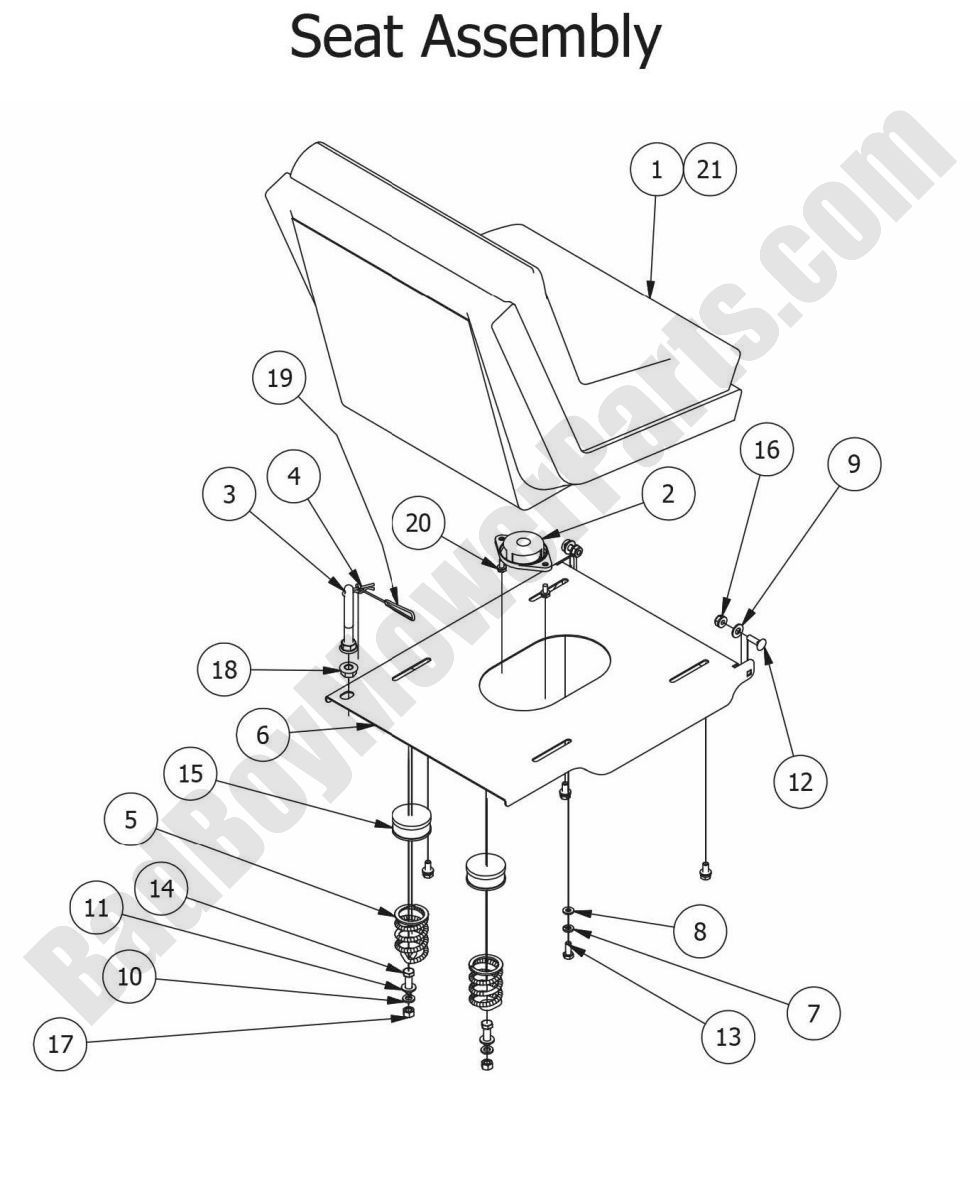

2015 MZ Magnum - Seat Assembly

2015 MZ Magnum - Seat Assembly

A comfortable and secure seat is crucial for an enjoyable mowing experience, and the 2015 MZ Magnum Seat Assembly ensures that you remain stable and comfortable while using your mower. If your seat assembly needs a replacement, BadBoyMowerParts.com is your go-to destination. We offer a wide selection of Bad Boy Mower Parts, including the 2015 MZ Magnum Seat Assembly, designed to fit your mower perfectly. With the assistance of our Bad Boy Mower Part diagrams, you can easily locate the parts needed for a smooth installation. Our Bad Boy Lawn Mower Parts are made of high-quality materials, ensuring durability and comfort. To make the repair process even easier, we offer Free Shipping On Orders Over $100, so you can replace your seat assembly without worrying about extra shipping costs. Browse Bad Boy Parts Online for all your mower needs, including the 2015 MZ Magnum Seat Assembly.

Bad Boy Mower Parts Lookup

2015 MZ Magnum - Seat Assembly
  Position Number SKU Product Title Price
1 071-9001-00 071-9001-00 - CZT/ZT/Magnum Seat Obsolete use 071-1000-00 (obsolete)
use part #071-1000-00
$429.99
2 071-8062-00 071-8062-00 - Seat Switch
$21.06
3 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
4 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
6 026-2010-00 026-2010-00 - MZ Seat Plate
$99.32
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
8 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
12 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
13 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
18 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
19 064-1000-00 064-1000-00 - Seat Pin Lanyard
$5.49
20 030-7041-00 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type
$2.99
21 071-8095-00 071-8095-00 - MZ Seat-no Arms/Slide OBSOLETE use 071-1000-00 (obsolete)
use part #071-1000-00
$429.99
