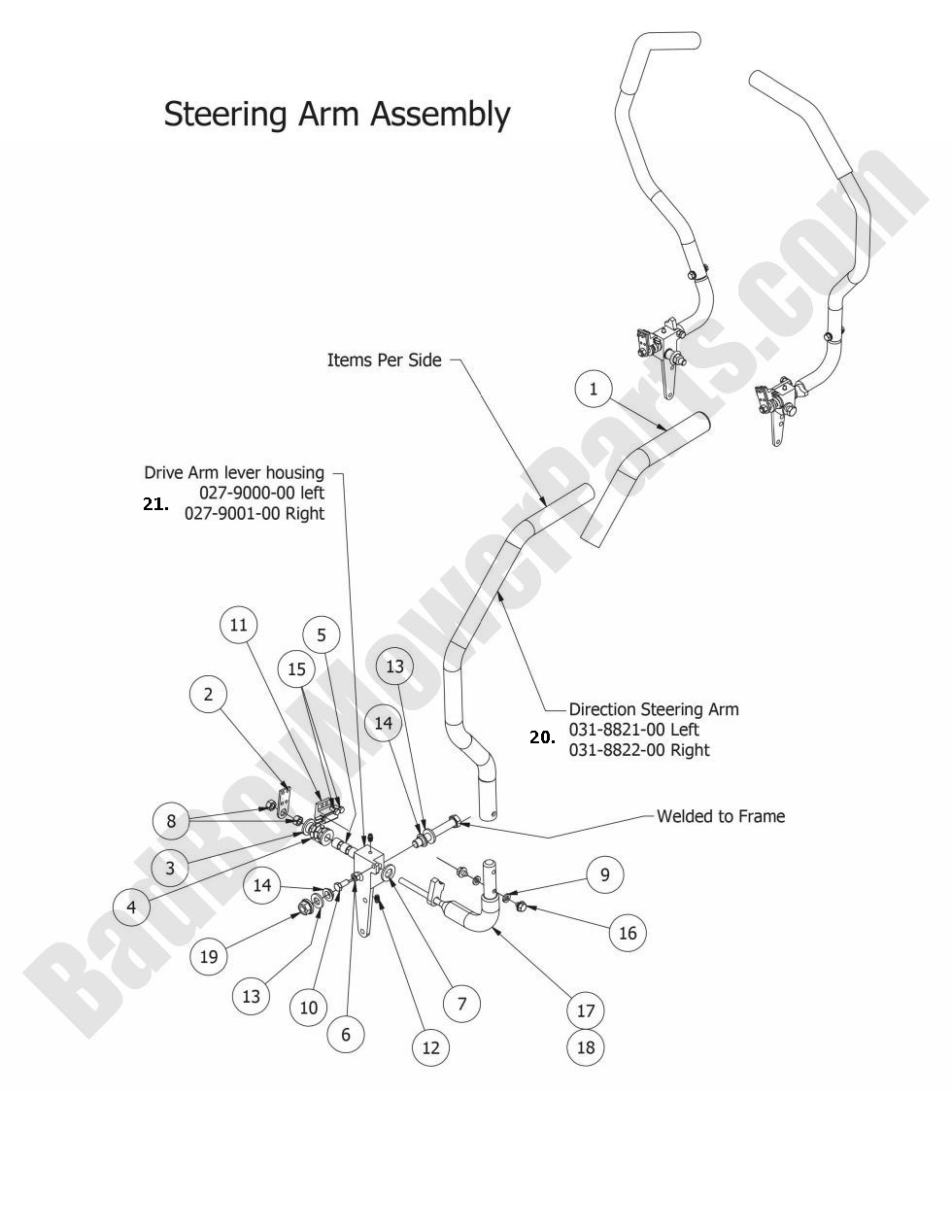

2015 MZ - Steering Arm Assembly

2015 MZ - Steering Arm Assembly

The 2015 MZ Steering Arm Assembly plays an important role in maintaining smooth and responsive steering for your mower. A damaged or worn-out steering arm can affect the overall handling of the mower, making it difficult to maneuver. If your 2015 MZ mower needs a new steering arm, visit BadBoyMowerParts.com for a wide selection of high-quality Bad Boy Mower Parts. Our website offers clear Bad Boy Mower Part diagrams that make it easy to locate the exact part you need for your mower. We pride ourselves on offering only durable, high-performance Bad Boy Lawn Mower Parts designed to keep your mower in top condition. Plus, when you order from us, you’ll enjoy Free Shipping On Orders Over $100. Keep your mower running smoothly and enjoy a seamless shopping experience with Bad Boy Parts Online, where you can find everything you need for your 2015 MZ mower.

Bad Boy Mower Parts Lookup

2015 MZ - Steering Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
2 039-1125-00 039-1125-00 - MZ Switch Bracket
$5.22
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
5 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
8 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
11 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
12 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
13 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
14 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
15 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
16 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
17 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
18 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
19 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
20 (Left) 031-8850-98 031-8850-98 - OBSOLETE USE Part # 031-8850-70 Left Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8850-70
$93.64
20 (Right) 031-8851-98 031-8851-98 - OBSOLETE USE Part # 031-8851-70 Right Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8851-70
$93.64
21 (Left) 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
21 (Right) 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
