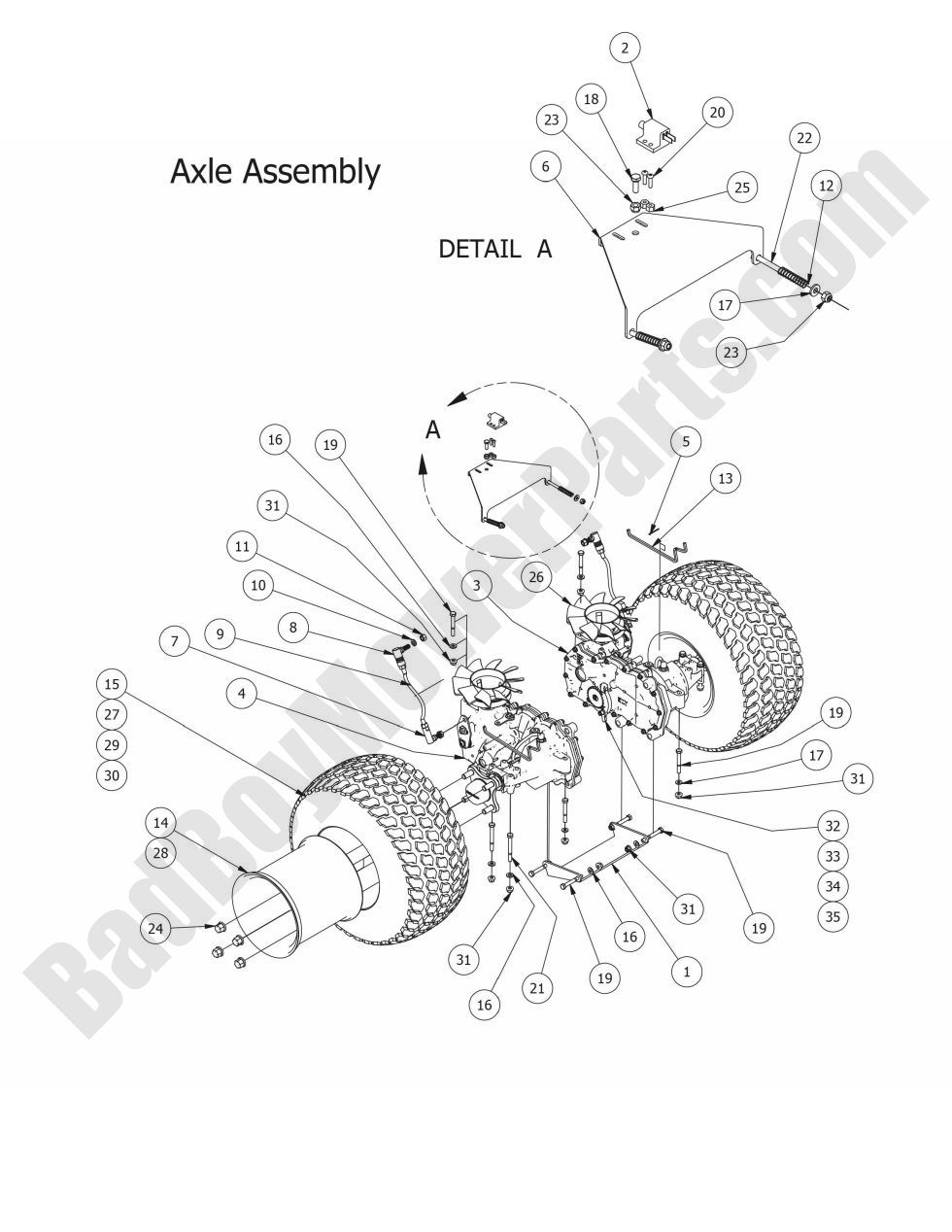

2015 MZ - Transaxle

2015 MZ - Transaxle

The 2015 MZ Transaxle is an essential part of your mower’s drivetrain, providing the power needed to drive the wheels and maintain the proper movement of your mower. If your transaxle is experiencing issues or has worn out, it's important to replace it with a high-quality part to avoid further damage and maintain the performance of your mower. BadBoyMowerParts.com has an extensive inventory of Bad Boy Mower Parts, including the 2015 MZ Transaxle, ensuring you get the right part for your mower model. Our Bad Boy Mower Part diagrams help you quickly find the exact parts needed for repairs or maintenance. We pride ourselves on providing top-notch Bad Boy Lawn Mower Parts that are built to last. Plus, with Free Shipping On Orders Over $100, you can keep your mower running smoothly at an affordable price. Visit Bad Boy Parts Online to get everything you need for your 2015 MZ mower today.

Bad Boy Mower Parts Lookup

2015 MZ - Transaxle
  Position Number SKU Product Title Price
1 201-2020-00 201-2020-00 - MZ Transaxle Support (Lower)
$19.81
2 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
3 050-4030-00 050-4030-00 - EZT - Right - MZ Models ZC-APBB-3DKB-1FPX
$999.99
4 050-4031-00 050-4031-00 - EZT - Left Transaxle- MZ Models ZC-DPBB-3DKC-1FPX
$999.99
5 040-2025-00 040-2025-00 - Cotter Pin-Brake Bar on MZ
$2.99
6 039-1124-00 039-1124-00 - Brake Lock Bracket
$9.89
7 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
8 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
9 035-9000-00 035-9000-00 - MZ/Magnum Push Rod - Also replaces part numbers 035-8001-00 - 035-8000-00
$22.64
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
12 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
13 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
14 022-8026-00 022-8026-00 - Rear Wheel 48in MZ (One Rim Only)
$106.19
15 022-8025-00 022-8025-00 - 18x9.50-8 Rear Tire Only (One Tire Only)
$197.99
16 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
17 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
18 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
19 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
22 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
23 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
24 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
25 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
26 050-2074-00 050-2074-00 - Fan/Pulley Kit for 2012-2016 MZ/MZ Magnum
$65.26
27 022-8027-00 022-8027-00 - 18x8.50-8 Rear Tire Only 42 MZ (One Tire Only)
$136.99
28 022-8028-00 022-8028-00 - Rear Wheel 42in MZ (One Rim Only)
$85.27
29 022-8050-00 022-8050-00 - 18x9.50-8 Tire and Wheel Assembly (One Tire & Rim Assy)
$229.99
30 022-2050-00 022-2050-00 - 18x8.50-8 w/8" Tire & Wheel Assembly Fits 42" MZ
$202.99
31 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
32 050-4032-98 050-4032-98 - MZ Brake Cog Kit (See Models Used On For Details)
$65.27
33 050-4033-00 050-4033-00 - MZ Retainer Ring for Brake
$19.86
34 050-4034-00 050-4034-00 - MZ Brake Gear Hydro Gear
$32.78
35 050-4035-00 050-4035-00 - MZ Brake Arm Kit
$24.97
