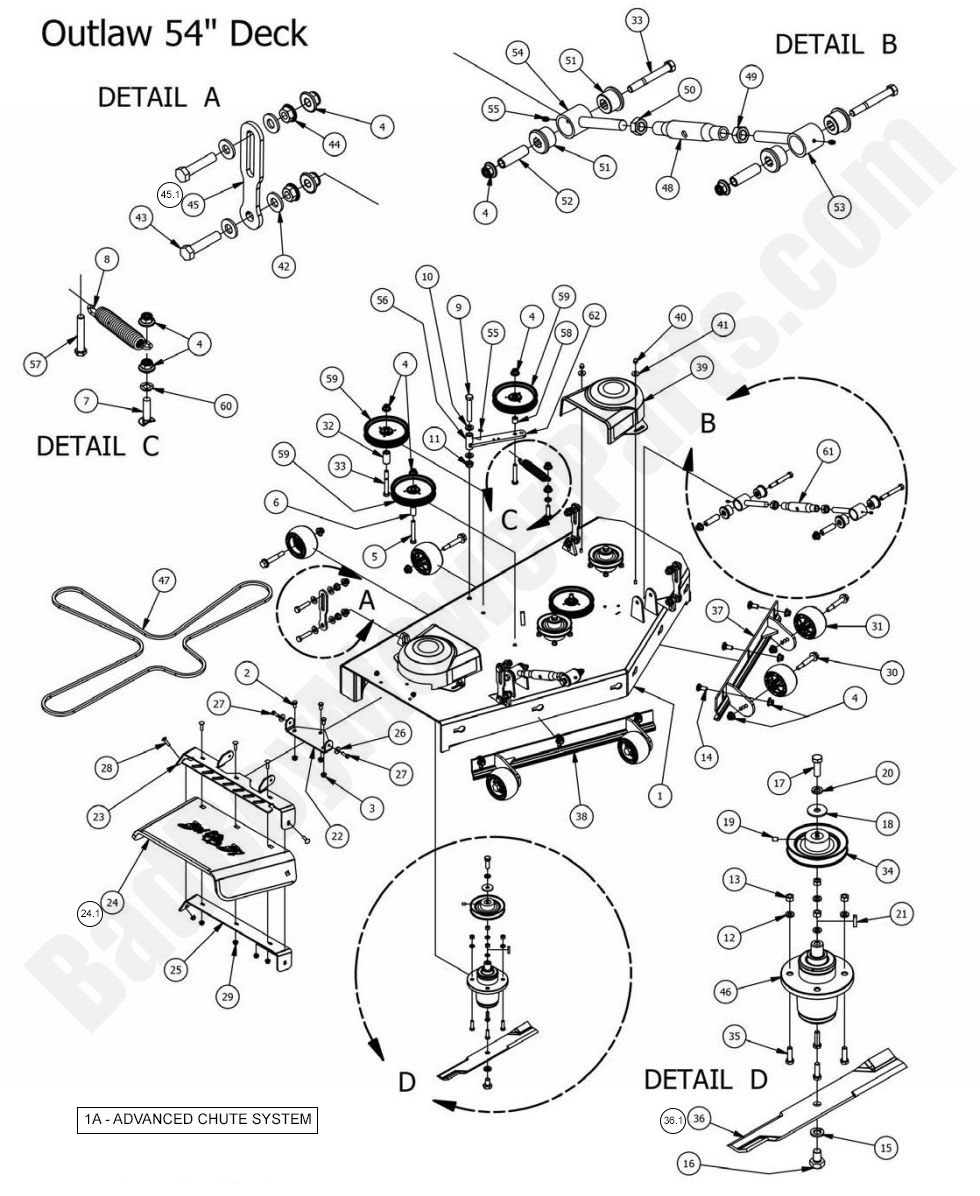

2015 Outlaw & Outlaw Extreme - 54" Deck Assembly

2015 Outlaw & Outlaw Extreme - 54" Deck Assembly

A properly functioning deck is essential for a clean, smooth mow, and BadBoyMowerParts.com has the 2015 Outlaw & Outlaw Extreme 54" Deck Assembly that will keep your mower performing at its best. Whether you need a full deck replacement or individual components, our Bad Boy Mower Parts inventory has everything you need. You can access Bad Boy Mower Part Diagrams to find the exact pieces for your mower. Browse through our Bad Boy Lawn Mower Parts catalog to find deck blades, pulleys, and more. Ordering Bad Boy Parts Online is easy and secure, and don’t forget that you get Free Shipping On Orders Over $100, making it even more affordable to keep your mower in excellent condition.

Bad Boy Mower Parts Lookup

2015 Outlaw & Outlaw Extreme - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6007-00 088-6007-00 - Advanced Chute System for 2010-2018 54" Outlaw Models
$249.00
1 060-5550-00 060-5550-00 - 2015-2018 54" Outlaw DeckShell/Hangs with Brackets
$1099.99
2 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
7 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
8 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
15 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
22 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
23 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
24.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
24 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
25 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
31A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
33 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
34 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
35 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
36.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
36 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
37 060-5520-00 060-5520-00 - Adjustable Deck Front Left (See Models Used On For Details)
$85.99
38 060-5530-00 060-5530-00 - Adjustable Deck Front Right (See Models Used On For Details)
$85.99
39 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
40 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
41 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
42 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
43 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
44 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
45.1 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
45 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
46 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
47 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
48 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
49 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
50 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
51 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
52 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
53 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
54 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
55 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
56 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
57 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
58 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
59 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
60 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
61 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
62 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
