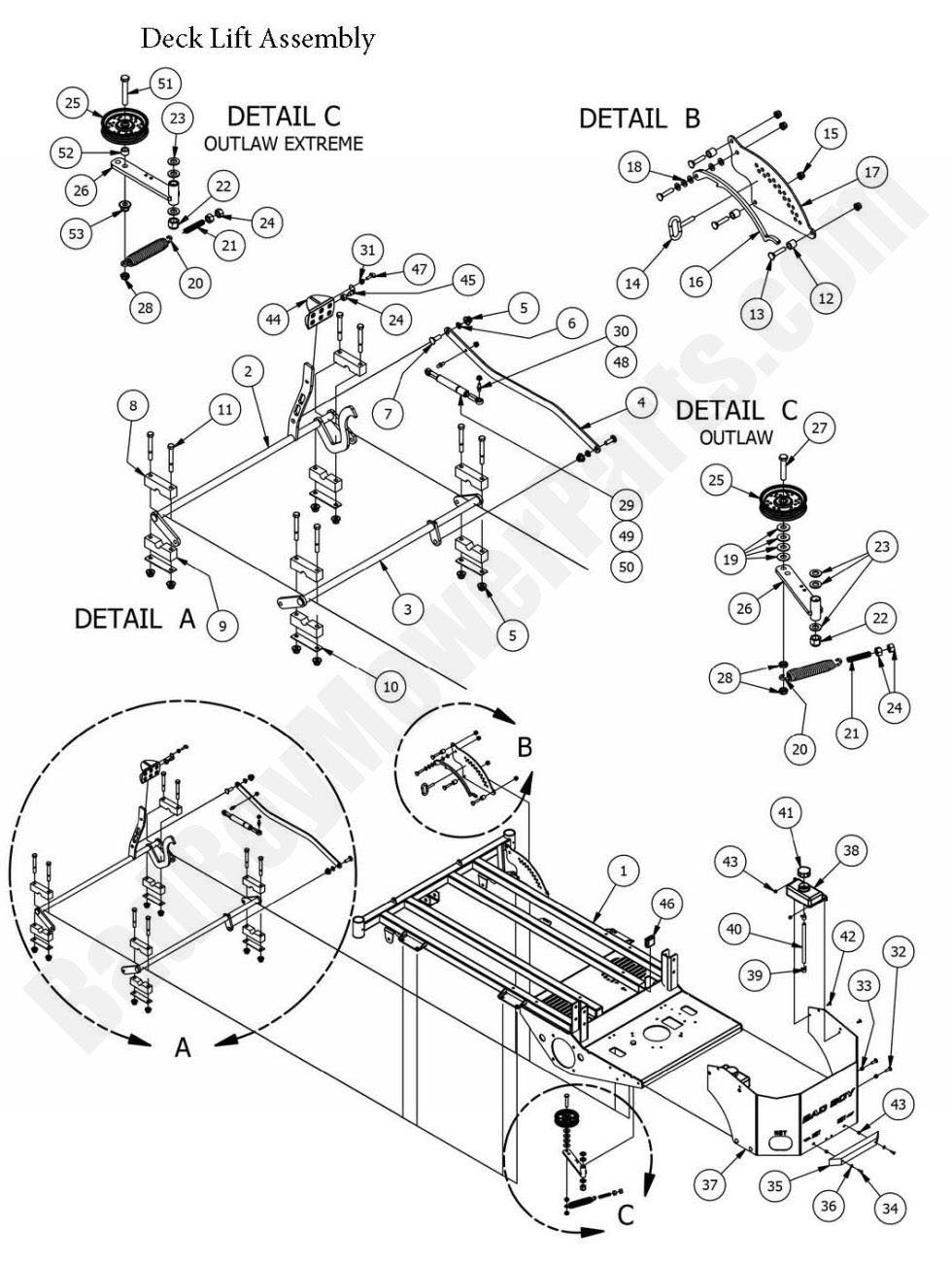

2015 Outlaw & Outlaw Extreme - Deck Lift Assembly & Idler Arm

2015 Outlaw & Outlaw Extreme - Deck Lift Assembly & Idler Arm

The Deck Lift Assembly & Idler Arm are critical components for your 2015 Outlaw & Outlaw Extreme, ensuring smooth operation of the deck. BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts to replace or upgrade these assemblies. You can use our Bad Boy Mower Part Diagrams to pinpoint the exact parts you need. Our collection of Bad Boy Lawn Mower Parts includes everything from lift assemblies to idler arms, so you can maintain your mower's functionality. Shop for Bad Boy Parts Online easily, and don’t forget that we offer Free Shipping On Orders Over $100, making it affordable to keep your mower in perfect working order.

Bad Boy Mower Parts Lookup

2015 Outlaw & Outlaw Extreme - Deck Lift Assembly & Idler Arm
  Position Number SKU Product Title Price
1 070-5370-00 070-5370-00 - 2015-2016 Outlaw/Outlaw Extreme Frame
$1299.99

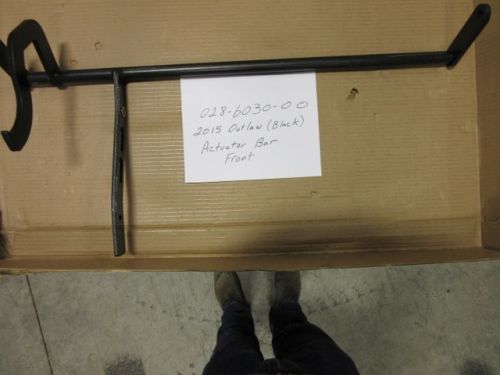

2 028-6030-00 028-6030-00 - Actuator Bar (Front) (See Models Used On For Detail)
$189.99

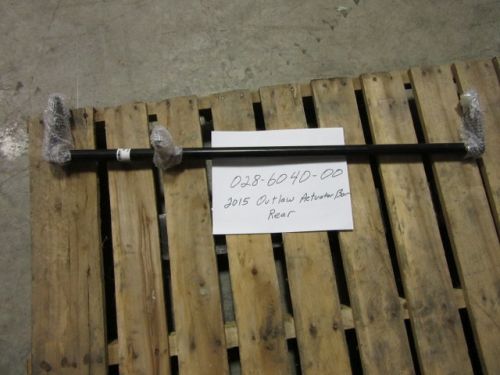

3 028-6040-00 028-6040-00 - Actuator Bar (Rear) (See Models Used On For Detail)
$175.99

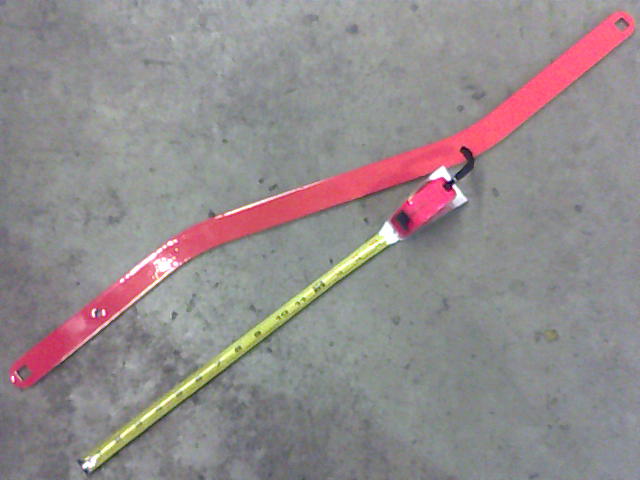

4 028-6050-00 028-6050-00 - Outlaw Deck Linkage Rod
$28.39
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
7 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
8 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
9 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
10A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
10 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
11 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
14 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
15 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
17 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
18 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
19 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
20 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
21 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
22 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
23 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
24 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
25 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
26 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
27 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
28 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
29 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
30 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
31 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
32 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
33 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
34 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
35 029-7037-00 029-7037-00 - 14" Bumper
$42.79
36 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
37 026-2180-00 026-2180-00 - Outlaw/XP Rear Plate (See Models Used On For Details)
$209.99
38 067-8085-00 067-8085-00 - Expansion Tank for Outlaw (See Models Used On For Details)
$31.22
39 072-8074-00 072-8074-00 - 5/8" Wire Clamp - Outlaw & Rebel
$4.81

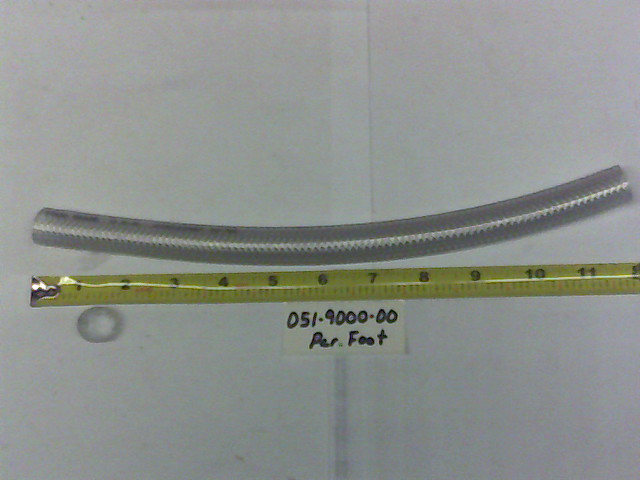

40 051-9000-00 051-9000-00 - 5/8 Braided Hose Priced per Foot
$4.81
41 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
42 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
43 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
44 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
45 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
46 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
47 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
48 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
49 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
50 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
51 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
52 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
