2015 Outlaw & Outlaw Extreme - Fuel Tanks

2015 Outlaw & Outlaw Extreme - Fuel Tanks

At BadBoyMowerParts.com, we carry a wide selection of Fuel Tanks for the 2015 Outlaw & Outlaw Extreme to ensure your mower runs smoothly. Whether you need a replacement fuel tank or a new fuel system, we have all the Bad Boy Mower Parts you need. Use our Bad Boy Mower Part Diagrams to identify and order the right parts for your mower’s fuel system. In addition to fuel tanks, our website offers a full selection of Bad Boy Lawn Mower Parts to maintain your mower’s performance. Shopping for Bad Boy Parts Online is easy, and don’t forget that we offer Free Shipping On Orders Over $100, making it more affordable to keep your mower operating at its best.

Bad Boy Mower Parts Lookup

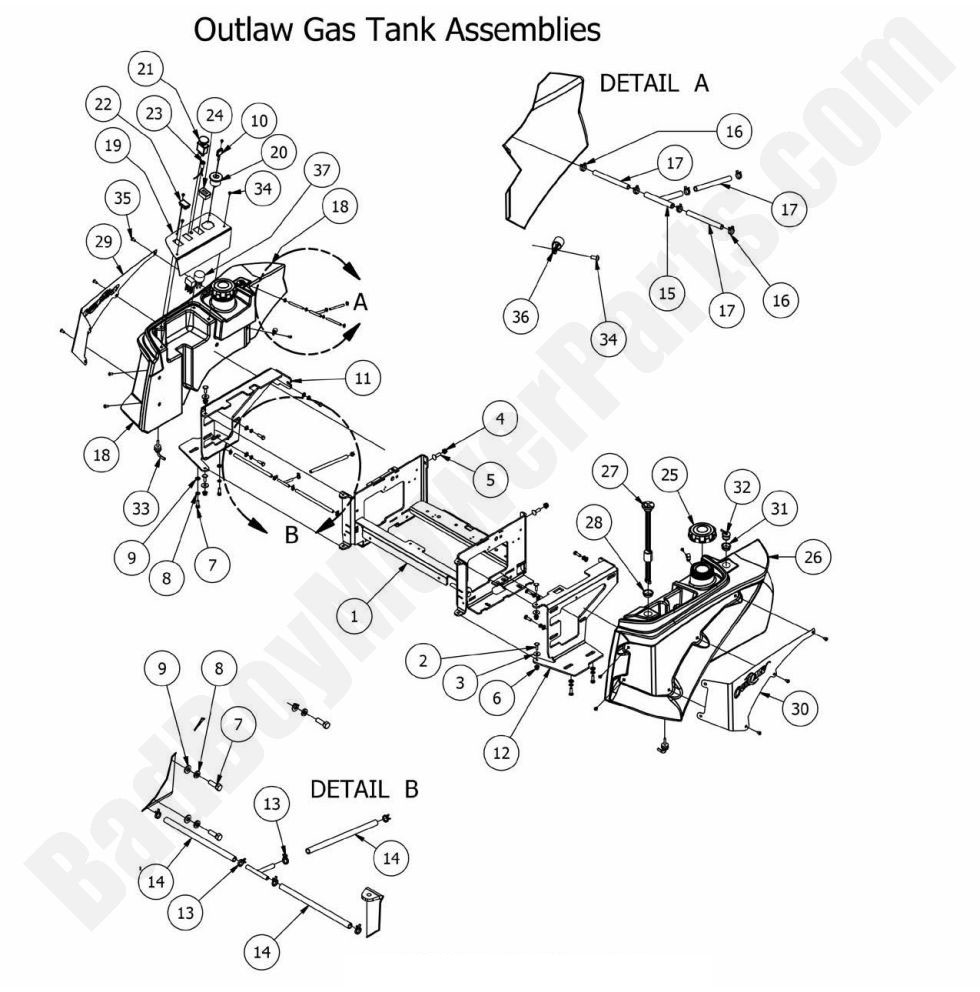

2015 Outlaw & Outlaw Extreme - Fuel Tanks
  Position Number SKU Product Title Price
1 080-5100-00 080-5100-00 - Outlaw Seat Bracket 2015
$399.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
12 031-2041-00 031-2041-00 - 2015 Outlaw Tank Support(Left)
$58.84
13 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15 073-8068-00 073-8068-00 - Fuel Line T
$9.70
16 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
17 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
18 067-1180-50 067-1180-50 - 2015-2018 Outlaw/XP Right Fuel Tank
$259.99
19 079-3360-00 079-3360-00 - 2015-2018 Outlaw/XP Control Panel
$28.39
20 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
21 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
22 018-1040-00 018-1040-00 - Light Plug
$2.99
23 089-1000-00 089-1000-00 - Oil Light
$12.63
24 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
25 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
26 067-1190-50 067-1190-50 - 2015-2018 Outlaw/XP Left Fuel Tank
$329.99
27 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
28 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
29 079-3280-00 079-3280-00 - 2015-2018 Outlaw/XP Right Tank Panel (Metal)
$26.74
30 079-3281-00 079-3281-00 - 2015-2018 Outlaw/XP Left Tank Panel (Metal)
$26.74
32 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
33 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48
34 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
35 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
36 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
37 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$363.44
