2015 Outlaw & Outlaw Extreme Transaxle

Transaxle

BadBoyMowerParts.com has the parts diagrams for the 2015 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2015 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Outlaw & Outlaw Extreme Transaxle. If you are not able to find the Bad Boy parts for your 2015 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

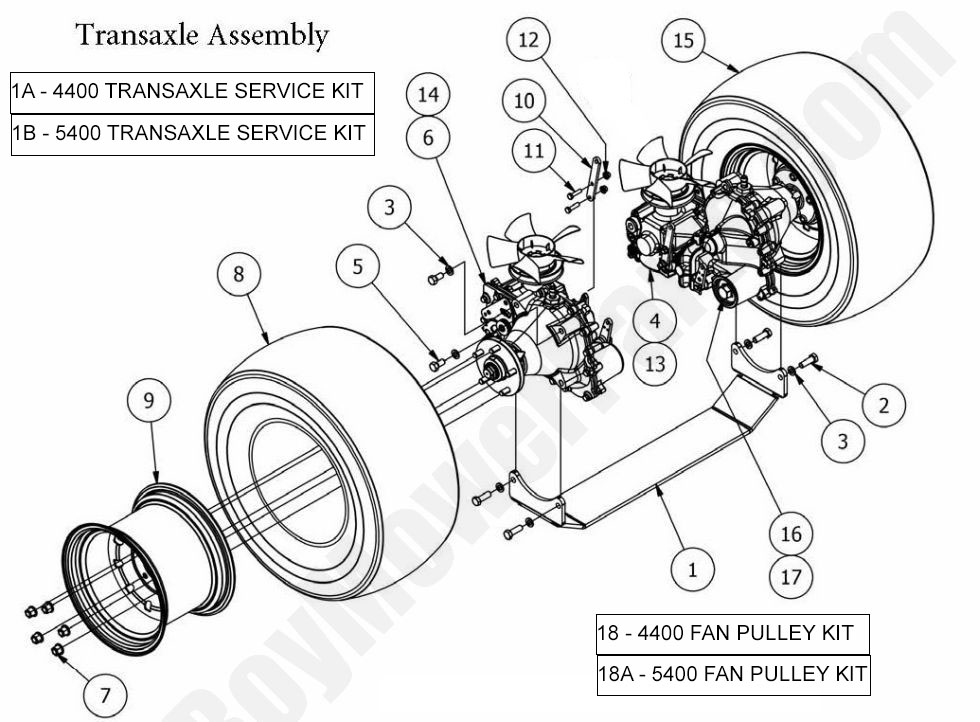

2015 Outlaw & Outlaw Extreme Transaxle
  Position Number SKU Product Title Price
1A 085-4050-00 085-4050-00 - Hydro-Gear ZT4400 Hydro Service Kit
$124.44
1B 085-4050-01 085-4050-01 - Hydro-Gear ZT5400 Hydro Service Kit
$159.92

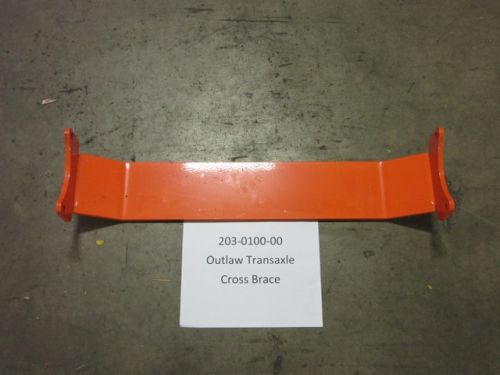

1 203-0100-00 203-0100-00 - Outlaw Transaxle Cross Brace
$64.19
2 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
3 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
4 050-7000-00 050-7000-00 - 5400 Transaxle - Left (See Models Used On)
$962.99
5 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
6 050-7001-00 050-7001-00 - 5400 Transaxle - Right (See Models Used On)
$909.49
7 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
8 022-5349-00 022-5349-00 - 24 x 12 - 12 Tire Pro Maxxis (One Tire Only)
$246.99
9 022-4070-00 022-4070-00 - Black Wheel 12x8.5" For 2015 & Newer Outlaw/Outlaw XP, Rebel & 54" Rogue
$151.99
10 039-2135-00 039-2135-00 - Brake Adapter Bracket - 4400 Transaxle (See Models Used On)
$7.69
11 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
13 050-1000-00 050-1000-00 - 4400 Transaxle-Left-Base Outlaw (Not 2015 Outlaw Extreme)
$973.69
14 050-1050-00 050-1050-00 - 4400 Transaxle - Right
$973.69
15 022-4050-00 022-4050-00 - Outlaw Black Assy24x12-12
$312.99
16 063-1060-00 063-1060-00 - Hydro Filter for Outlaw ZT5400 Transaxles
$28.88
17 063-1070-00 063-1070-00 - Hydraulic Filter for ZT4400 Transaxle
$26.74
18A 050-2073-00 050-2073-00 - Fan/Pulley Kit for Outlaw with ZT-5400 Transaxle See Product Details for More Info
$127.99
18 050-1025-00 050-1025-00 - Fan/Pulley Kit for Outlaw with ZT-4400 Transaxle See Product Details for More Info
$117.12
