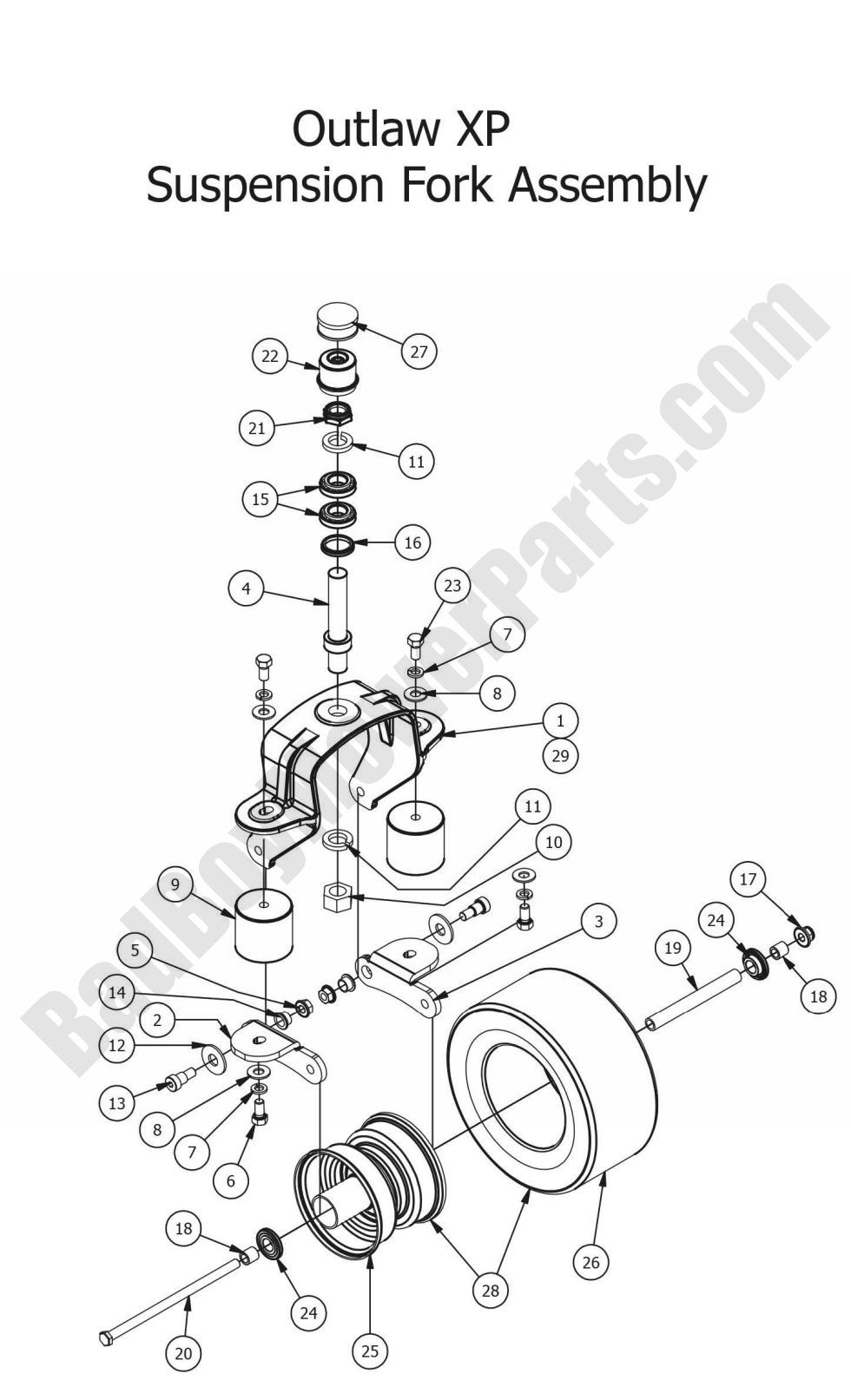

2015 Outlaw XP - Suspension Fork Assembly

2015 Outlaw XP - Suspension Fork Assembly

For a smooth ride and improved control, the 2015 Outlaw XP Suspension Fork Assembly plays a key role in your mower’s performance. At BadBoyMowerParts.com, we offer a range of Bad Boy Mower Parts to keep your suspension fork assembly working like new. Whether you need to replace the forks, bearings, or other suspension components, we have everything you need. Our Bad Boy Mower Part Diagrams help you identify and order the right parts for your suspension system. Along with suspension fork assemblies, we offer a variety of Bad Boy Lawn Mower Parts to ensure your mower performs at its best. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can get all the parts you need delivered to your door at no extra cost.

Bad Boy Mower Parts Lookup

2015 Outlaw XP - Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
9 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
10 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
11 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
14 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
15A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
15 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
16A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
16 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
20 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
22 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
23 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
24 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
25 022-3090-00 022-3090-00 - Black Front Rim Only (See Models Used For Detail) (obsolete)
use part #022-3085-00
$112.99
26 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
27 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
28 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
29 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
