2015 Stand-On - Frame & Idler Assembly

2015 Stand-On - Frame & Idler Assembly

The 2015 Stand-On Frame & Idler Assembly provides the foundation and smooth operation of your mower. At BadBoyMowerParts.com, we carry high-quality Bad Boy Mower Parts to keep your frame and idler system in perfect working order. Whether you need replacement brackets, idler pulleys, or tensioner assemblies, our Bad Boy Mower Part Diagrams help you find the exact parts needed for a secure fit. Alongside frame and idler components, we stock a full range of Bad Boy Lawn Mower Parts to ensure your mower stays in peak condition. Ordering Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can keep your mower’s frame and idler system in top shape without extra shipping costs.

Bad Boy Mower Parts Lookup

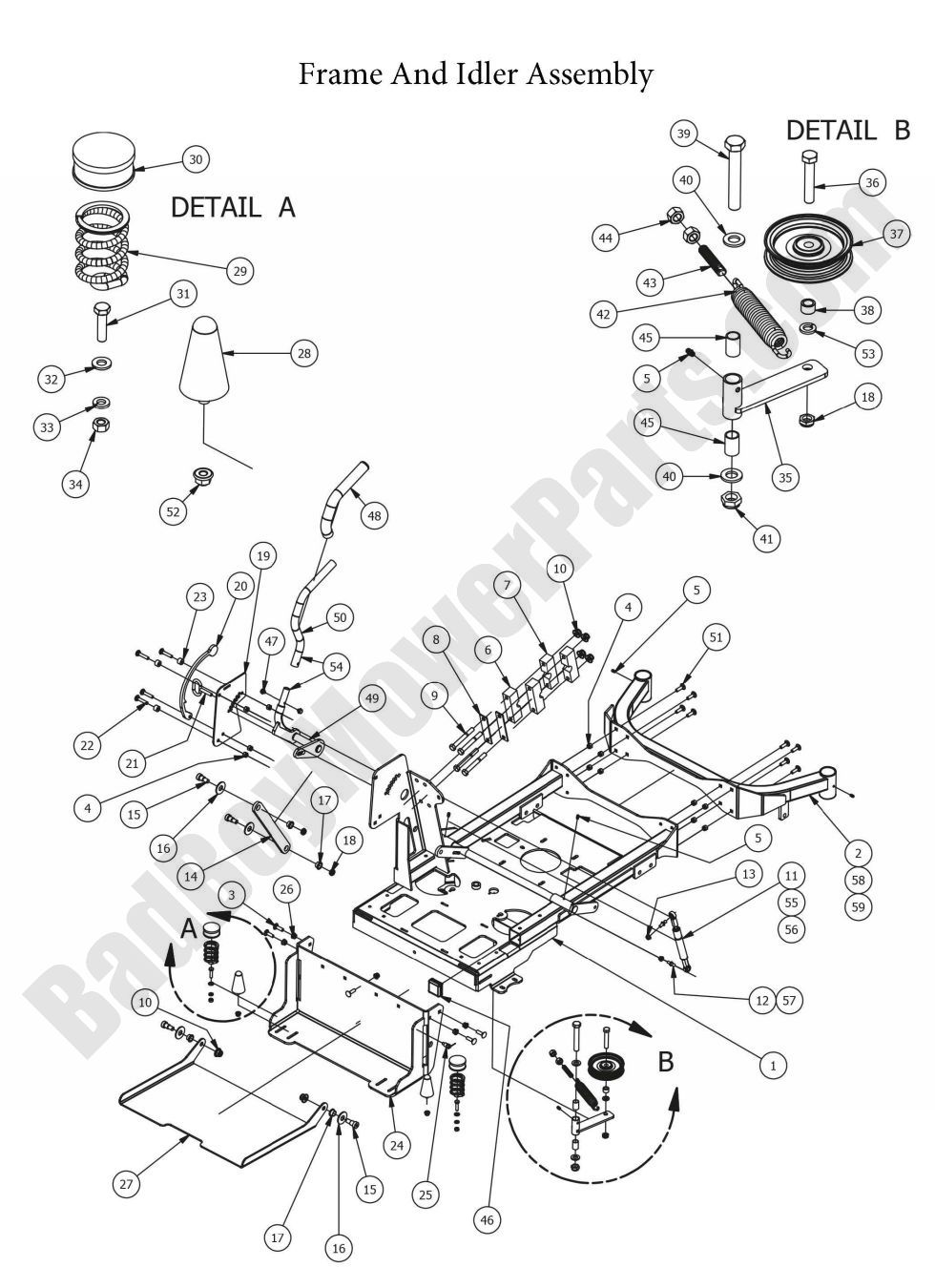

2015 Stand-On - Frame & Idler Assembly
  Position Number SKU Product Title Price
1 070-5220-00 070-5220-00 - 2015-2016 Stand-On Frame
$1149.99
2 070-9048-00 070-9048-00 - 48" Stand On Front End
$129.99
3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
4 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
7 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
8A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
8 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
9 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
10 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

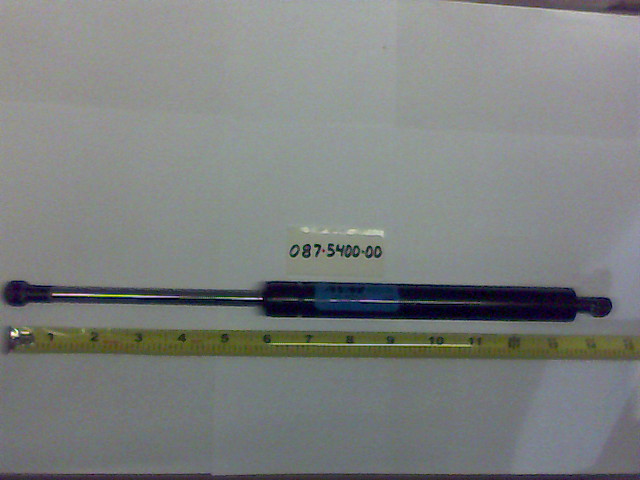

11 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
12 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
13 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
14 028-5000-00 028-5000-00 - Stand On Flat Linkage Bar
$12.83
15 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
16 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
17 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
18 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
19 026-5050-00 026-5050-00 - Stand On Adj Plate Bolt on Plate (See Models Used On For Details)
$16.04
20 031-0090-00 031-0090-00 - 2015-2017 Stand On Deck Lever Lock
$12.83
21 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
22 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99

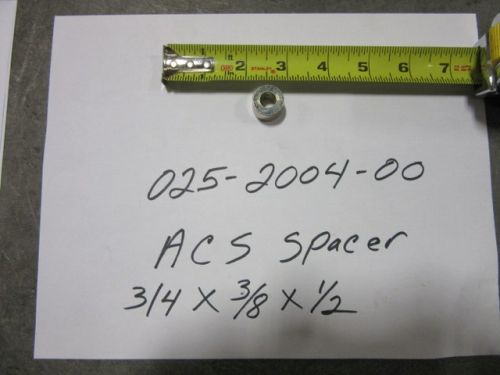

23 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
24 201-1100-00 201-1100-00 - Stand Frame Support Stand On Model
$53.49
25 040-4060-00 040-4060-00 - 48" Stand On Floorboard Pin (obsolete)
use part #040-5000-00
$21.39
26 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
27 026-5040-00 026-5040-00 - Stand Plate for Stand On
$26.74
28 034-1444-00 034-1444-00 - Rubber Cone (obsolete)
use part #034-8045-98
$29.80
29 034-8045-00 034-8045-00 - Seat Spring
$20.49
30 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
31 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
32 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
33 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
34 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
35 039-5949-00 039-5949-00 - Stand On Pump Idler Bracket
$37.47
36 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
37 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
38 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
39 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
40 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
41 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
42 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
43 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
44 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99

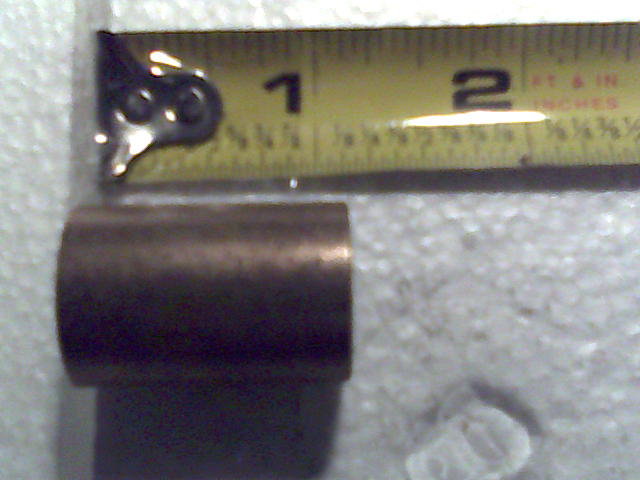

45 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84

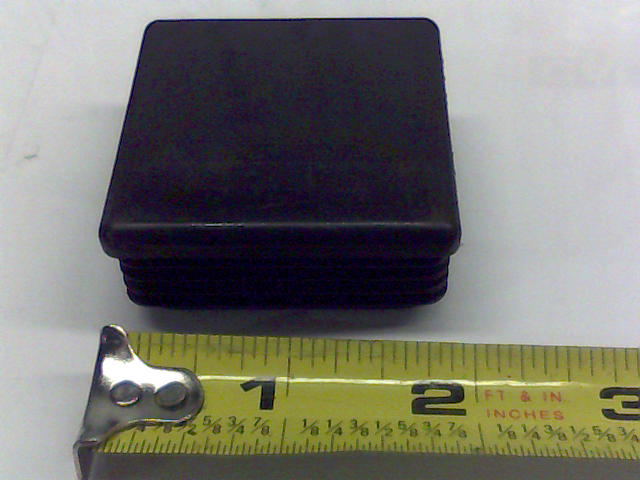

46 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
47 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
48 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
51 018-5045-00 018-5045-00 - 3/8-16 X 1-1/8 Carriage Bolt
$2.99
52 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
53 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
55 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01

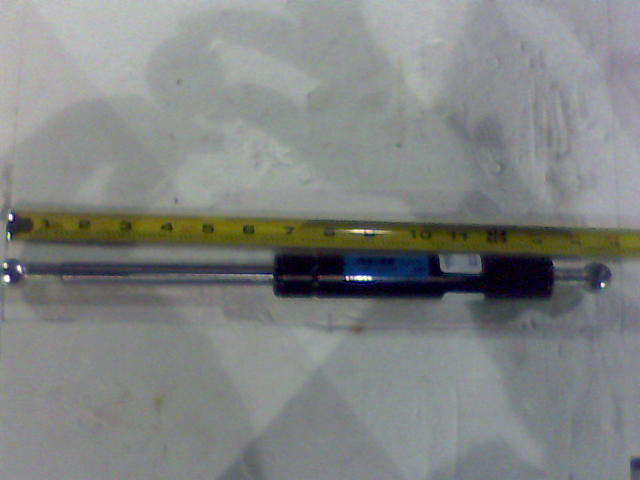

56 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
57 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
58 070-9054-00 070-9054-00 - 54" Stand On Front End 2015 Assembly
$129.99

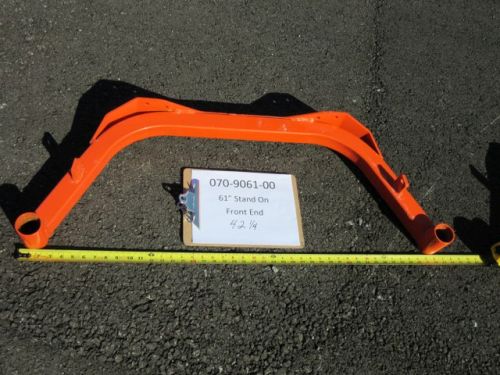

59 070-9061-00 070-9061-00 - 61" Stand On Front End 2015 Assembly
$129.99
