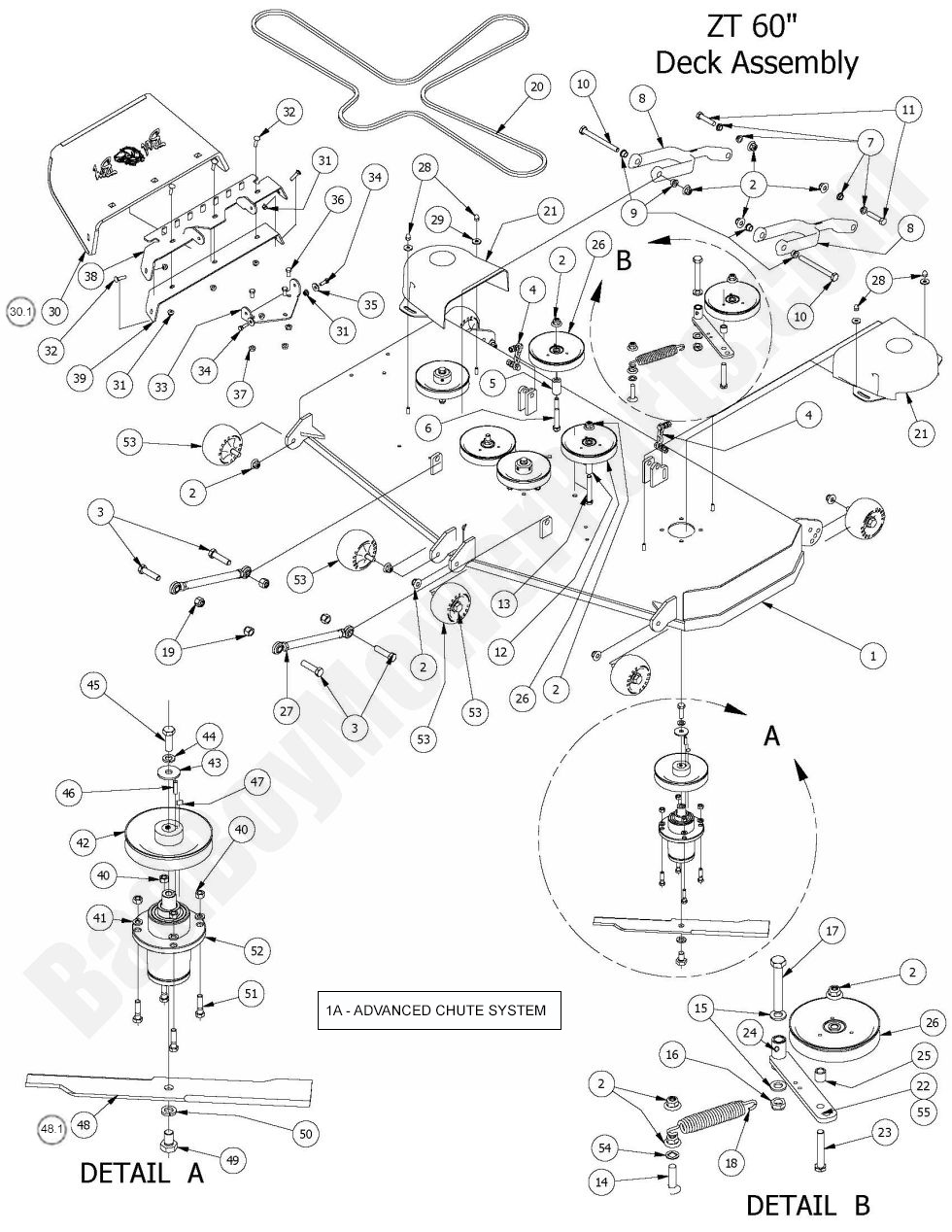

2015 ZT Elite - 60" Deck Assembly

2015 ZT Elite - 60" Deck Assembly

The 2015 ZT Elite 60" Deck Assembly provides a wider cutting path, perfect for large mowing jobs. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts to maintain your deck’s performance. Whether you need pulleys, spindles, belts, or blades, our Bad Boy Mower Part Diagrams make it easy to find the correct part. Regularly replacing worn-out deck components helps maintain cutting precision and overall efficiency. In addition to deck parts, we carry a complete inventory of Bad Boy Lawn Mower Parts for all mower maintenance needs. Ordering Bad Boy Parts Online is quick, and with Free Shipping On Orders Over $100, you can save on shipping costs.

Bad Boy Mower Parts Lookup

2015 ZT Elite - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-6060-00 060-6060-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Mav 60" Deck Shell
$1328.83
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
4 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
5 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
6 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
7 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
8 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
9 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
10 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
11 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
12 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
15 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
16 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
18 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
19 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
20 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
21 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
22 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
23 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
24 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
25 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
26 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
27 048-6060-00 048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle (See Models Used On For Details)
$56.77
28 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
29 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
30.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
30 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
31 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
32 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
33 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
34 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
35 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
36 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
37 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
38 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
39 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
40 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
41 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
42 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
43 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
44 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
45 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
46 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
47 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
48.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
48 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
49 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
50 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
51 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
52-1 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
52 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
53-1 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
53A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
53 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
54 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
55 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
