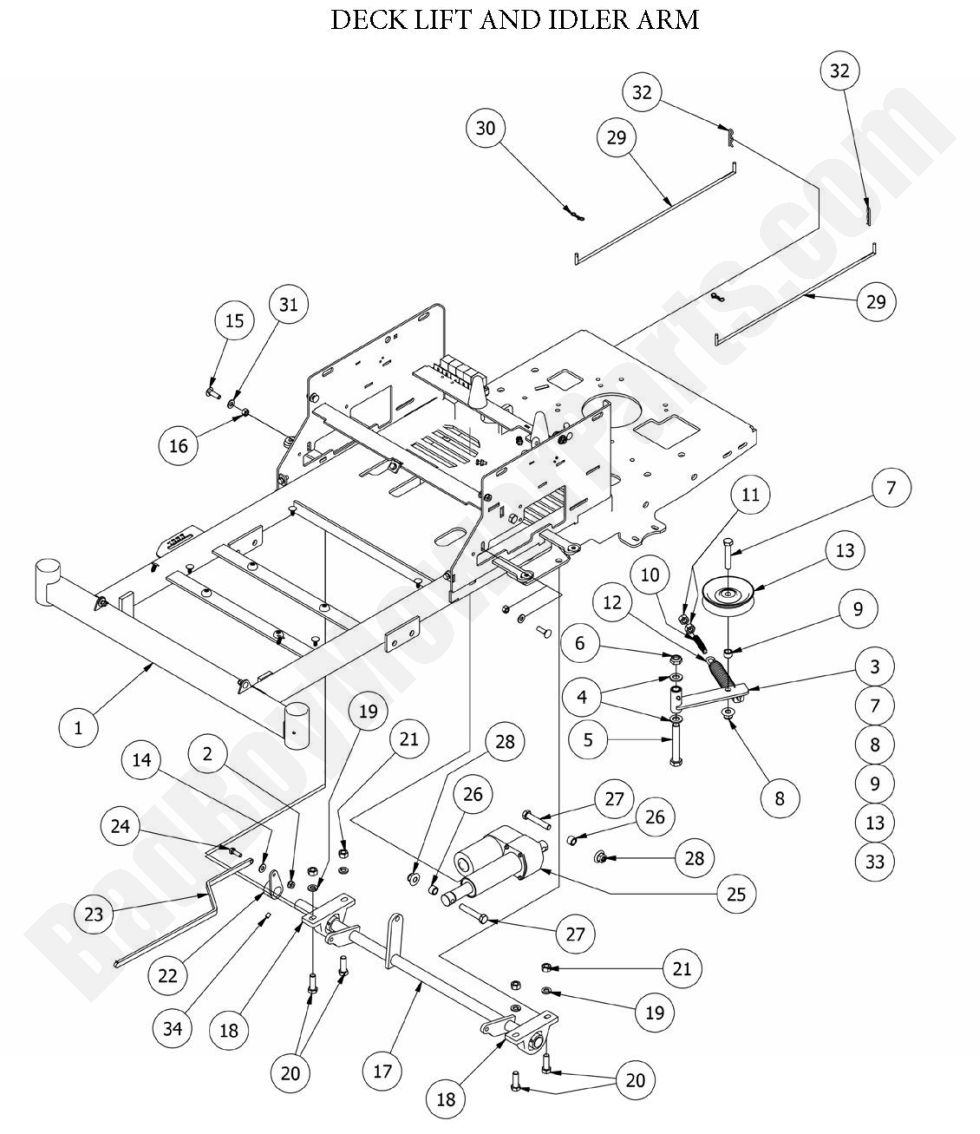

2015 ZT Elite - Deck Lift & Idler Arm

2015 ZT Elite - Deck Lift & Idler Arm

The 2015 ZT Elite Deck Lift & Idler Arm plays a crucial role in adjusting the deck height and maintaining proper belt tension. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to keep your mower operating smoothly. Whether you need new idler pulleys, springs, or brackets, our Bad Boy Mower Part Diagrams make finding the right parts easy. A well-maintained deck lift system ensures precise cutting height adjustments for an even mow. In addition to deck lift components, we stock a vast selection of Bad Boy Lawn Mower Parts to cover all your repair needs. Ordering Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can save on essential replacements.

Bad Boy Mower Parts Lookup

2015 ZT Elite - Deck Lift & Idler Arm
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
4 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
5 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
6 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
10 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
11 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
12 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
18 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
19 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
20 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
22 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
24 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
25 035-7033-00 035-7033-00 - Actuator
$408.75
29 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
30 044-2004-00 044-2004-00 - Bow Pin
$2.99
31 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
32 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
33 039-5944-98 039-5944-98 - Pump Idler Assembly (obsolete)
use part #039-5944-01
$62.46
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
