2015 ZT Elite - Transaxle

2015 ZT Elite - Transaxle

The 2015 ZT Elite Transaxle is responsible for transferring power from the engine to the wheels, ensuring smooth operation and precise control. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts to maintain or replace your transaxle. If your mower is experiencing difficulty in movement or loss of power, replacing worn-out transaxle components can restore performance. Our Bad Boy Mower Part Diagrams help you quickly identify and order the correct parts. A well-maintained transaxle improves efficiency and prolongs the life of your mower. Along with transaxle components, we carry a vast inventory of Bad Boy Lawn Mower Parts to support all maintenance needs. Ordering Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can save on essential repairs.

Bad Boy Mower Parts Lookup

2015 ZT Elite - Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-2081-00 050-2081-00 - Left ZT Transaxle ZL-KCEE-3BKC-1RXX (obsolete)
use part #050-2096-01
$729.99
2 050-2080-00 050-2080-00 - Right ZT Transaxle ZL-GCEE-3BKV-1RXX - Obsolete - USE PART #050-2095-01 (obsolete)
use part #050-2095-01
$729.99

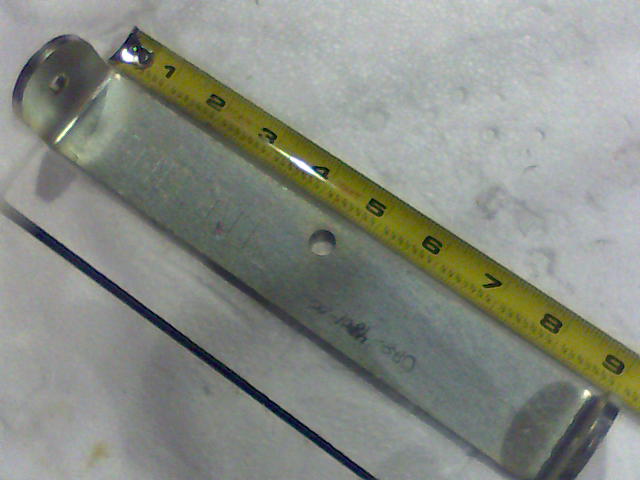

3 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
4 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
5 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
6 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 025-5340-00 025-5340-00 - .365 ID X .752 OD X 3.313 Length Spacer Zinc
$8.74
9 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
10 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
11 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
12 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
13-1 063-1055-00 063-1055-00 - ZT Hydro Filter 2 Pack
$45.99
13 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
14 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
17 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
18 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
19 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
20 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
22 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
23 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
24 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
25 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
26 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
27 050-2071-00 050-2071-00 - ZT Transaxle Charge Plate
$98.43

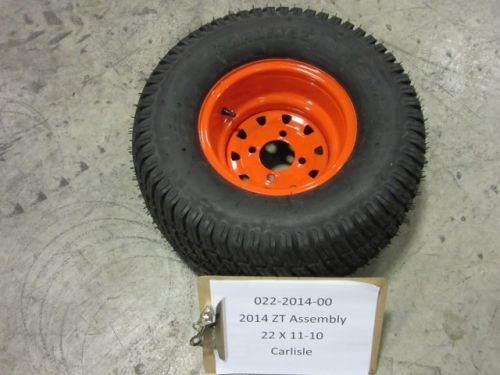

28 022-2014-00 022-2014-00 - ZT Assembly 22x11-10 Carlisle (obsolete)
use part #022-2014-19
$294.99
29 022-2021-00 022-2021-00 - ZT Wheel Only 22x11-10 Carlisle
$155.99
30 022-2020-00 022-2020-00 - ZT Tire Only 22x11-10 Carlisle
$289.99
