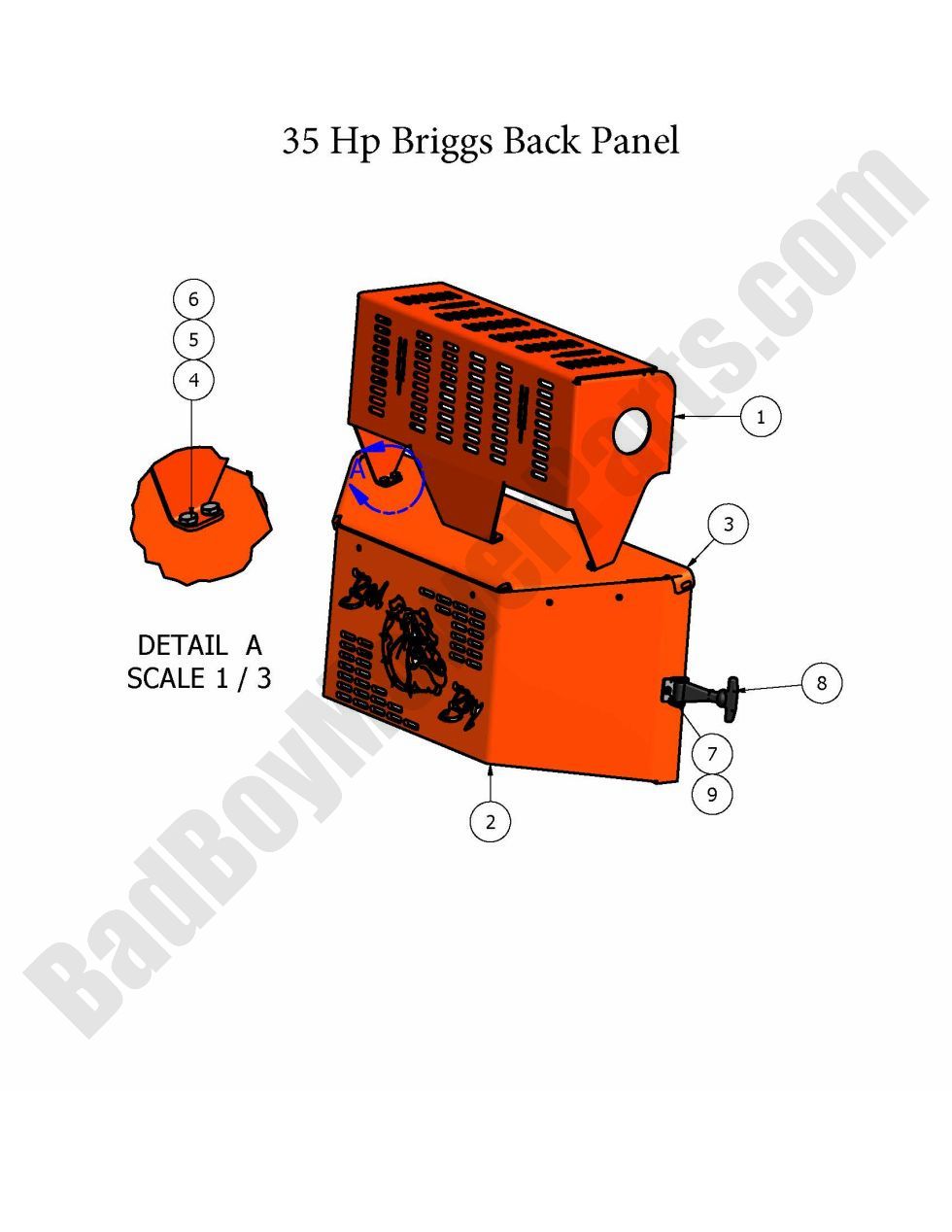

Click Image to Change Diagram
The 2008 AOS 35Hp Briggs Back Panel is designed for those who rely on the power of the Briggs engine in their 2008 AOS mower. If you need a replacement back panel or are in the process of performing maintenance, BadBoyMowerParts.com has the 2008 AOS 35Hp Briggs Back Panel available in stock. This high-quality replacement ensures that your mower’s engine is properly shielded and protected. With the full selection of Bad Boy Mower Parts, including the Bad Boy Mower Part diagrams, you can rest assured that every part is designed for optimal fit. Our website also makes it easy to browse through various Bad Boy Lawn Mower Parts and find the perfect match for your needs. Plus, enjoy the added benefit of Free Shipping On Orders Over $100 when shopping for Bad Boy Parts Online, making it easier than ever to get the parts you need.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 043-2004-00 | 043-2004-00 - 2007-2010 Muffler Guard (35) |
$33.81
|
||
2 | 014-5940-00 | 014-5940-00 - AOS Back Pump Cover |
$139.99
|
||
3 | 014-5912-00 | 014-5912-00 - AOS Back Cover Top 35BS |
$26.75
|
||
4 | 018-8052-00 | 018-8052-00 - 1/4-20 X 3/4 Hex Bolt |
$2.99
|
||
5 | 019-4008-00 | 019-4008-00 - 1/4 Lockwasher Zinc |
$2.99
|
||
6 | 013-8039-00 | 013-8039-00 - 1/4-20 Hex Nut |
$2.99
|
||
7 | 018-8057-00 | 018-8057-00 - 10-24 X 3/4 Button Screw |
$2.99
|
||
8 | 052-5020-00 | 052-5020-00 - Rubber Pump Cover Latch 2011 and below-Diesel and AOS |
$17.11
|
||
9 | 013-5019-00 | 013-5019-00 - 10-24 Nylon Insert Locknut Zinc |
$2.99
|
