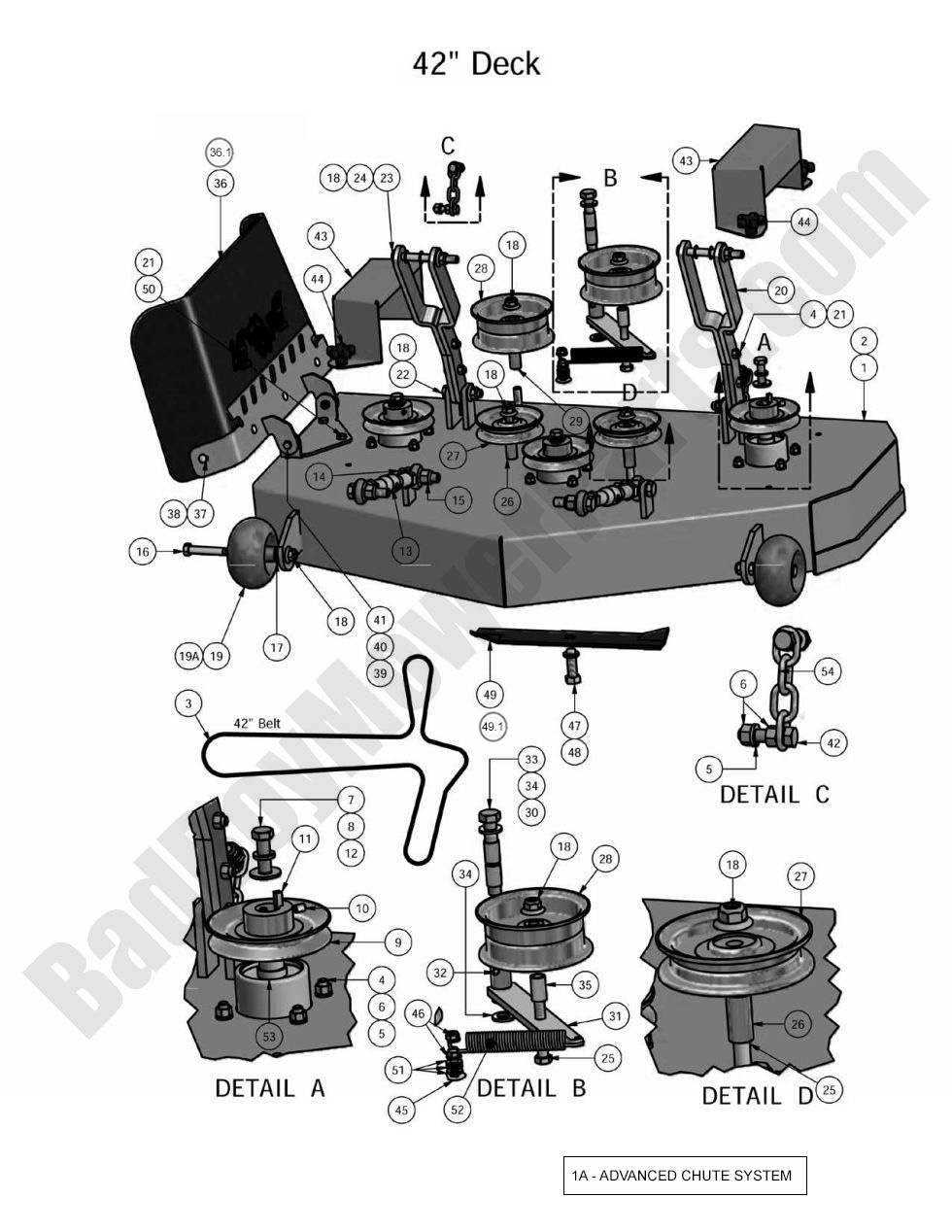

2010 CZT 42" Deck Assembly

42" Deck Assembly

The Bad Boy Mower parts diagram for the 2010 CZT 42" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 CZT models. Find all of your Bad Boy mowers 2010 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 CZT 42" Deck. If you are not able to find the Bad Boy parts for your 2010 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 CZT 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$266.99
1 060-4200-00 060-4200-00 - 2010-2012 42" CZT Deck - Shell Only
$1390.99
3 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
4 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
5 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
6 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
7 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
8 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
9 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
10 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
11 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
12 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
13 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
14 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
15 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
16 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
22 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
23 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 GR 5 Hex Bolts
$2.99
24 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
25 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
27 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
28 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
29 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
30 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
31 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
32 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
33 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
34 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
35 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$2.99
36.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$181.89
36 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
37 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
38 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
39 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
40 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
41 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
42 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
43 014-4801-00 014-4801-00 - 1/2 Metal Spindle Cover - Right (See Models Used On For Details)
$42.58
44 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
45 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
46 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
47 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
48 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
49.1 038-4227-00 038-4227-00 - 42" Gator Blade - Outlaw
$21.99
49 038-4226-00 038-4226-00 - 42" High Lift Blade-Outlaw
$21.99
50 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
51 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
52 034-2008-00 034-2008-00 - Deck Idler Spring (See Models Used On For Detail)
$17.11
53 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$213.99
54 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
