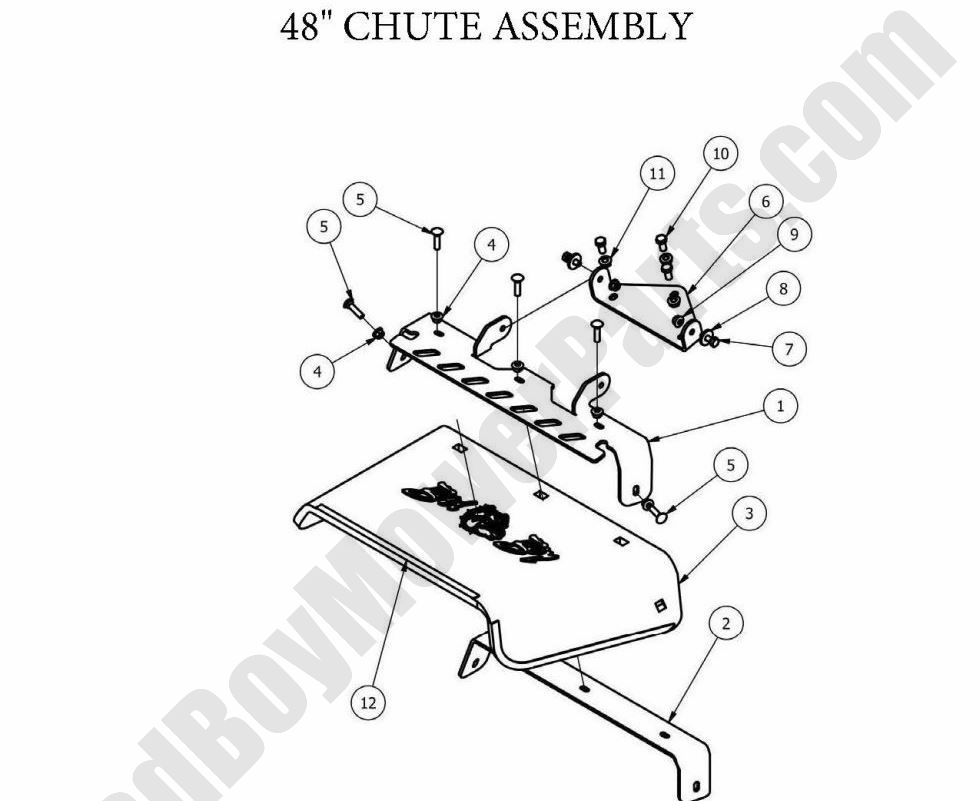

The Bad Boy Mower parts diagram for the 2013 ZT Elite 48" Chute Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 ZT Elite models. Find all of your Bad Boy mowers 2013 ZT Elite parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 ZT Elite 48" Chute Assembly. If you are not able to find the Bad Boy parts for your 2013 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 039-4870-00 | 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly |
$42.52
|
||
2 | 039-4871-00 | 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute |
$32.65
|
||
3 | 210-6005-00 | 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail) |
$59.91
|
||
4 | 013-8049-00 | 013-8049-00 - 5/16-18 Nylon Flange Nut |
$2.99
|
||
5 | 018-4703-00 | 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt |
$2.99
|
||
6 | 206-6017-00 | 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail) |
$39.03
|
||
7 | 018-2007-00 | 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc |
$2.99
|
||
8 | 019-6042-00 | 019-6042-00 -.360 ID Plastic Washer |
$2.99
|
||
10 | 018-5250-00 | 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts |
$2.99
|
||
11 | 013-5201-00 | 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations |
$2.99
|
||
12 | 210-5218-00 |
210-5218-00 - 48/52 Rubber Discharge Chute A ssy (obsolete) use part #210-6005-48 |
$181.89
|
