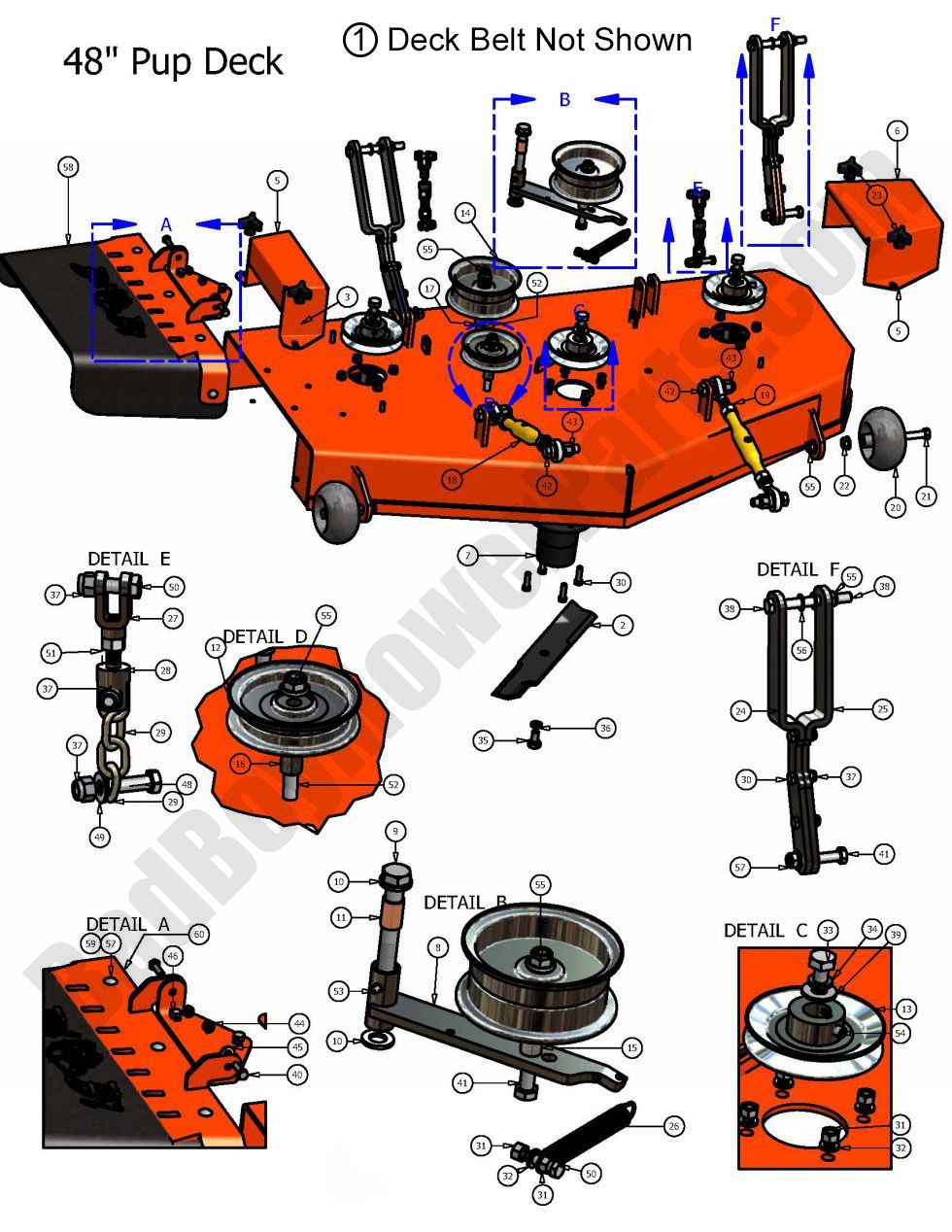

2007 Pup - 48" Deck Assembly

2007 Pup - 48" Deck Assembly

The 2007 Pup 48" Deck Assembly is a crucial component for ensuring smooth and efficient lawn care. At BadBoyMowerParts.com, we provide a wide selection of Bad Boy Mower Parts, including this essential deck assembly, tailored to fit your specific model. Our detailed Bad Boy Mower Part diagrams make it easier to locate the exact deck parts you need, from the blade mounts to the belt system. If you need to replace or upgrade the deck on your 2007 Pup, you'll find everything you need with our extensive inventory of Bad Boy Lawn Mower Parts. Order Bad Boy Parts Online to save time and hassle, and enjoy the added benefit of Free Shipping On Orders Over $100. Trust us to keep your mower in top condition so you can tackle your lawn with confidence.

Bad Boy Mower Parts Lookup

2007 Pup - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1 041-1420-00 041-1420-00 - B142 Deck Belt For 48" Pup/Lightning & PTO Belt For Gas Powered Mowers So Equipped
$88.80
3 060-5401-00 060-5401-00 - 2007-2010 48" Pup Deck - Shell Only
$1049.99
5 014-4801-00 014-4801-00 - 1/2 Metal Spindle Cover - Right (See Models Used On For Details)
$42.58
6 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
7 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
8 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
14 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
15 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
16 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
17 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
18 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
19 013-6058-00 013-6058-00 - 3/4-10 Left Hand Hex Nut
$3.52
20A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
22 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
24 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
26 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
27 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
28 046-6048-00 046-6048-00 - Male Yoke
$15.60
29 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
30 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
31 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
32 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
33 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
34 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
35 018-6021-00 018-6021-00 - OBSOLETE - Use Part 018-6020-00 (obsolete)
use part #018-6020-00
$2.99
36 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
37 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
38 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
39 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
40 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
41 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
42 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
43 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
44 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
48 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
49 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
50 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
51 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
52 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
53 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
54 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
56 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
57 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
58 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
59 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
60 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
