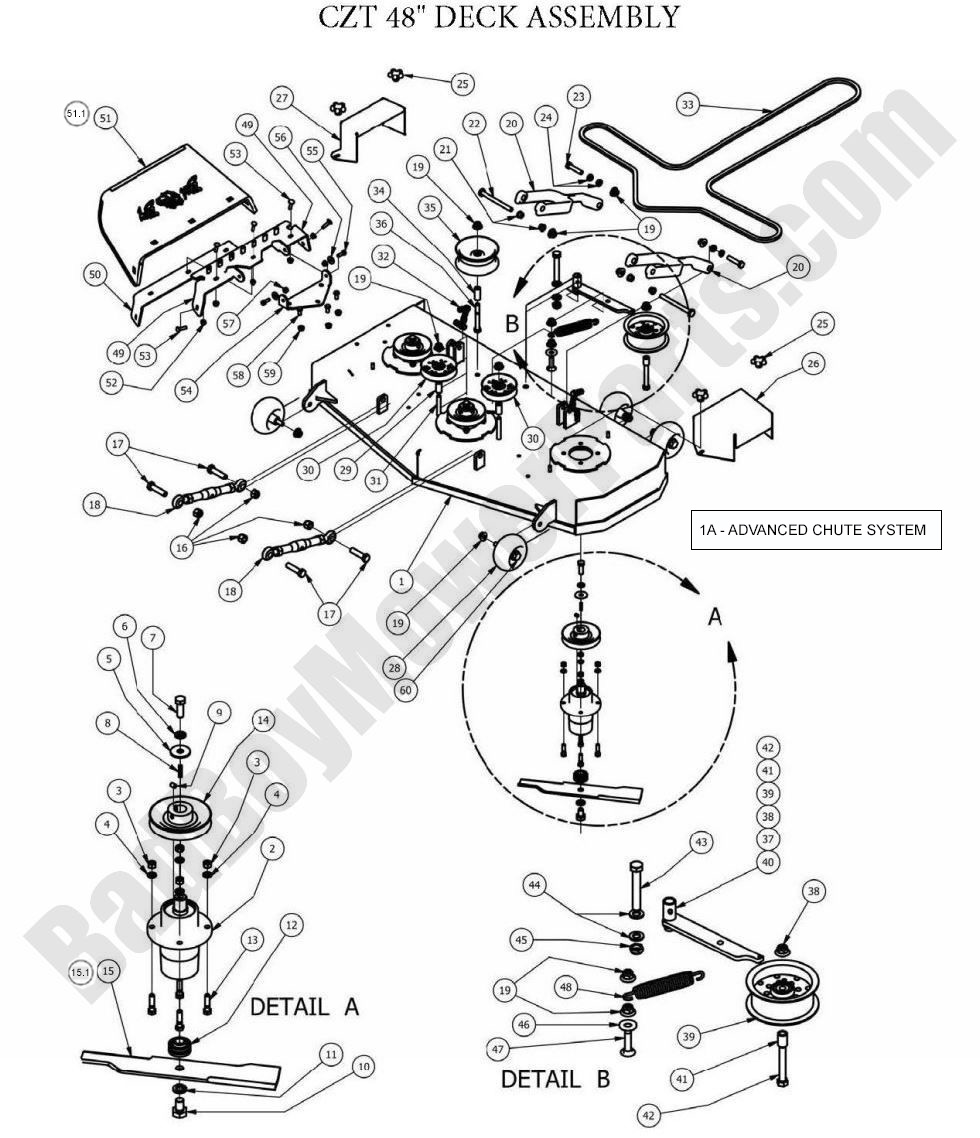

2013 CZT - 48" Deck Assembly

2013 CZT - 48" Deck Assembly

A properly functioning 2013 CZT 48" Deck Assembly is crucial for achieving a clean and even cut every time you mow. At BadBoyMowerParts.com, we carry a full selection of Bad Boy Mower Parts to maintain and repair your mower deck. Whether you need new spindles, pulleys, belts, or blades, our Bad Boy Mower Part diagrams help you find the exact components for your specific model. With high-quality Bad Boy Lawn Mower Parts, you can keep your deck operating at peak efficiency, ensuring a professional-grade finish on every lawn. Shopping for Bad Boy Parts Online is easy with our organized catalog, providing you with quick access to everything you need. Plus, enjoy Free Shipping On Orders Over $100, making it more affordable to keep your 2013 CZT 48" Deck Assembly in top condition. Order today and keep your mower performing like new!

Bad Boy Mower Parts Lookup

2013 CZT - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1 060-6048-00 060-6048-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Maverick 48" Deck Shell
$1196.14
2 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
5 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
6 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
7 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
8 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
9 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
10 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
11 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
12 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
13 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
14 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
15.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
15 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
16 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
18 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
21 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
22 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
23 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
24 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
25 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
26 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
27 014-4801-00 014-4801-00 - 1/2 Metal Spindle Cover - Right (See Models Used On For Details)
$42.58
28A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
28 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
31 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
32 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
33 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
34 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
35 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
36 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
37 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
41 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
42 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
43 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
44 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
45 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
46 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
47 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
48 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
49 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
50 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
51.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
51 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
52 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
53 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
54 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
55 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
56 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
58 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
59 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
60 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
