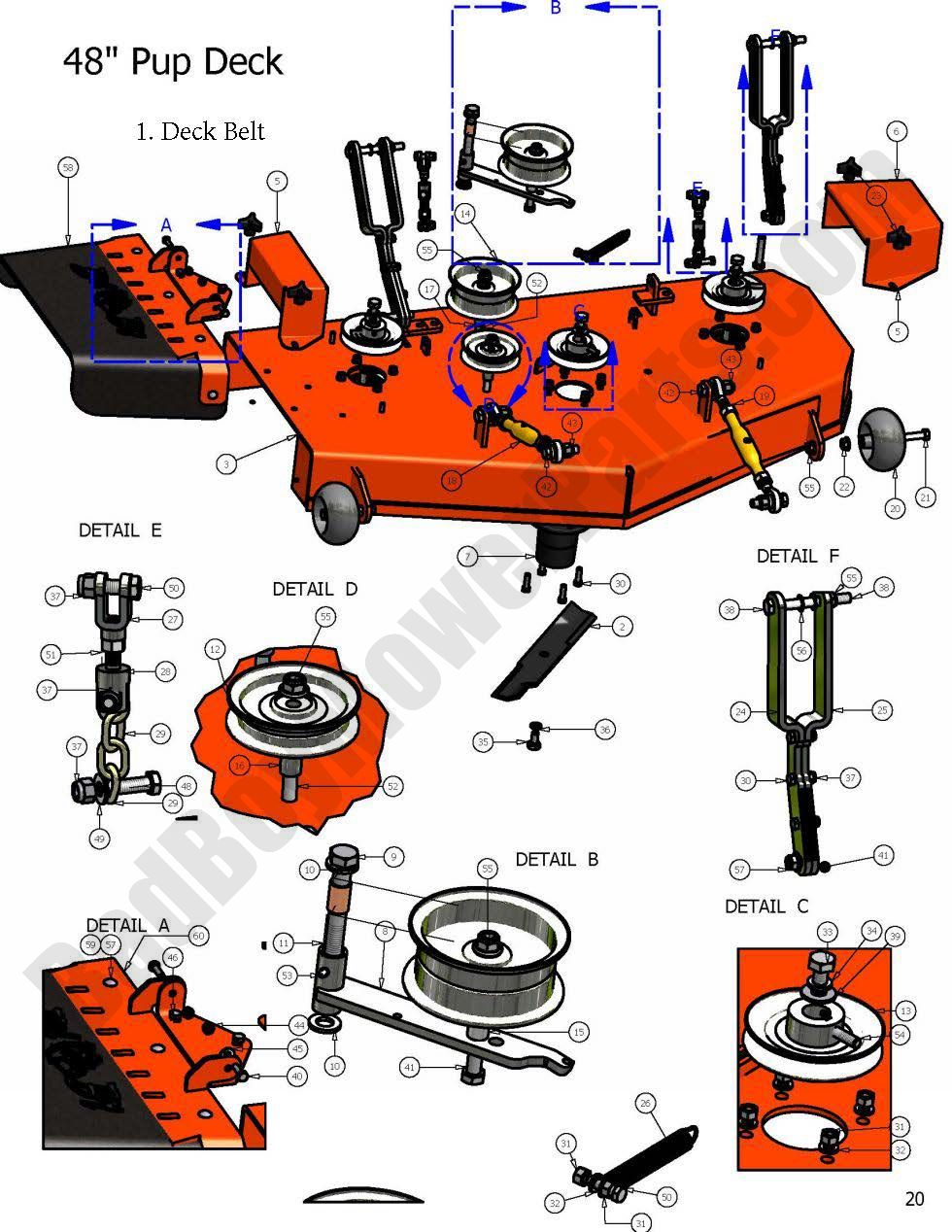

2008 Pup and Lightning - 48" Deck Assembly

2008 Pup and Lightning - 48" Deck Assembly

The 2008 Pup and Lightning 48" Deck Assembly is an essential part of your lawn mower, and BadBoyMowerParts.com makes it easy to find the parts you need. We offer high-quality Bad Boy Mower Parts to ensure your deck assembly is in top shape, providing a smooth and efficient mowing experience. Whether you’re replacing blades, pulleys, or other key components, our selection of Bad Boy Lawn Mower Parts includes everything needed for a complete deck overhaul. Our Bad Boy Mower Part diagrams help you identify and select the right pieces for your 2008 Pup and Lightning. When you shop Bad Boy Parts Online, you’ll get the best prices and enjoy the convenience of shopping from home. Plus, with Free Shipping On Orders Over $100, you can save on delivery costs while keeping your mower running like new. Get your 48" deck assembly parts today.

Bad Boy Mower Parts Lookup

2008 Pup and Lightning - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1 041-1420-00 041-1420-00 - B142 Deck Belt For 48" Pup/Lightning & PTO Belt For Gas Powered Mowers So Equipped
$88.80
3 060-5401-00 060-5401-00 - 2007-2010 48" Pup Deck - Shell Only
$1049.99
5 014-4801-00 014-4801-00 - 1/2 Metal Spindle Cover - Right (See Models Used On For Details)
$42.58
6 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
7 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
8 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
14 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
15 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
16 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
17 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
18 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
19 013-6058-00 013-6058-00 - 3/4-10 Left Hand Hex Nut
$3.52
20A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
20 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
21 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
22 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
24 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
26 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
27 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
28 046-6048-00 046-6048-00 - Male Yoke
$15.60
29 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
30 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
31 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
32 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
33 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
34 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
35 018-6021-00 018-6021-00 - OBSOLETE - Use Part 018-6020-00 (obsolete)
use part #018-6020-00
$2.99
36 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
37 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
38 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
39 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
40 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
41 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
42 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
43 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
44 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
48 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
49 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
50 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
51 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
52 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
53 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
54 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
56 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
57 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
58 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
59 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
60 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
