2012 ZT 50" Chute

50" Chute

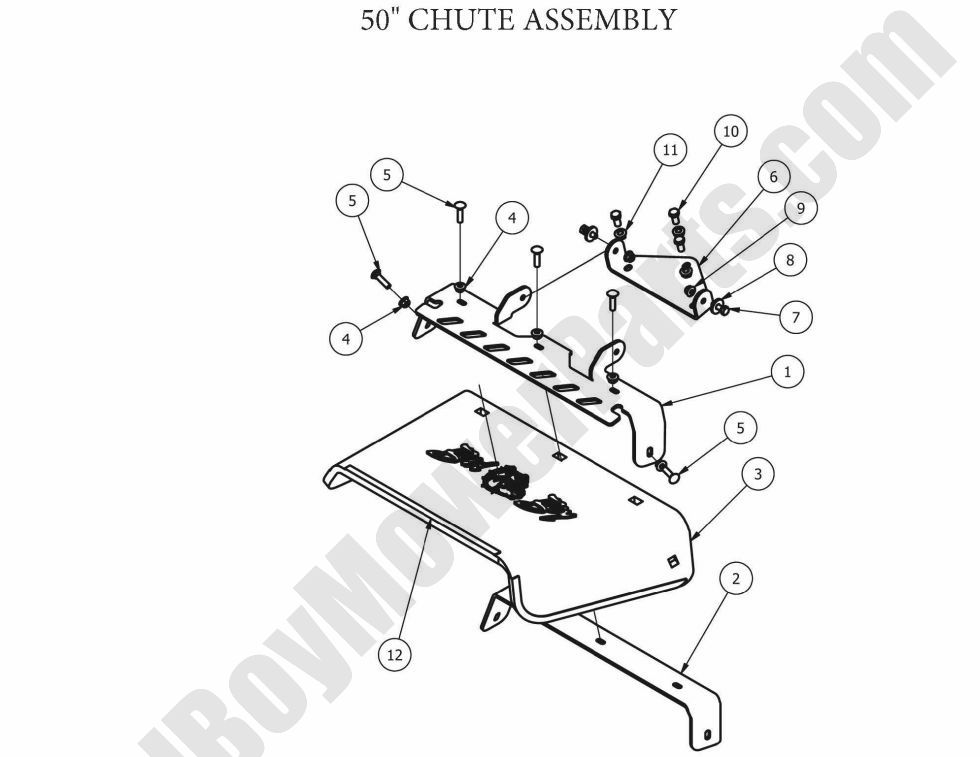

The Bad Boy Mower parts diagram for the 2012 ZT 50" Chute is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 ZT models. Find all of your Bad Boy mowers 2012 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 ZT 50" Chute. If you are not able to find the Bad Boy parts for your 2012 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 ZT 50" Chute
  Position Number SKU Product Title Price
1 039-4870-00 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly
$42.52
2 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
3 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
6 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
7 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
8 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
11 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
12 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$181.89
