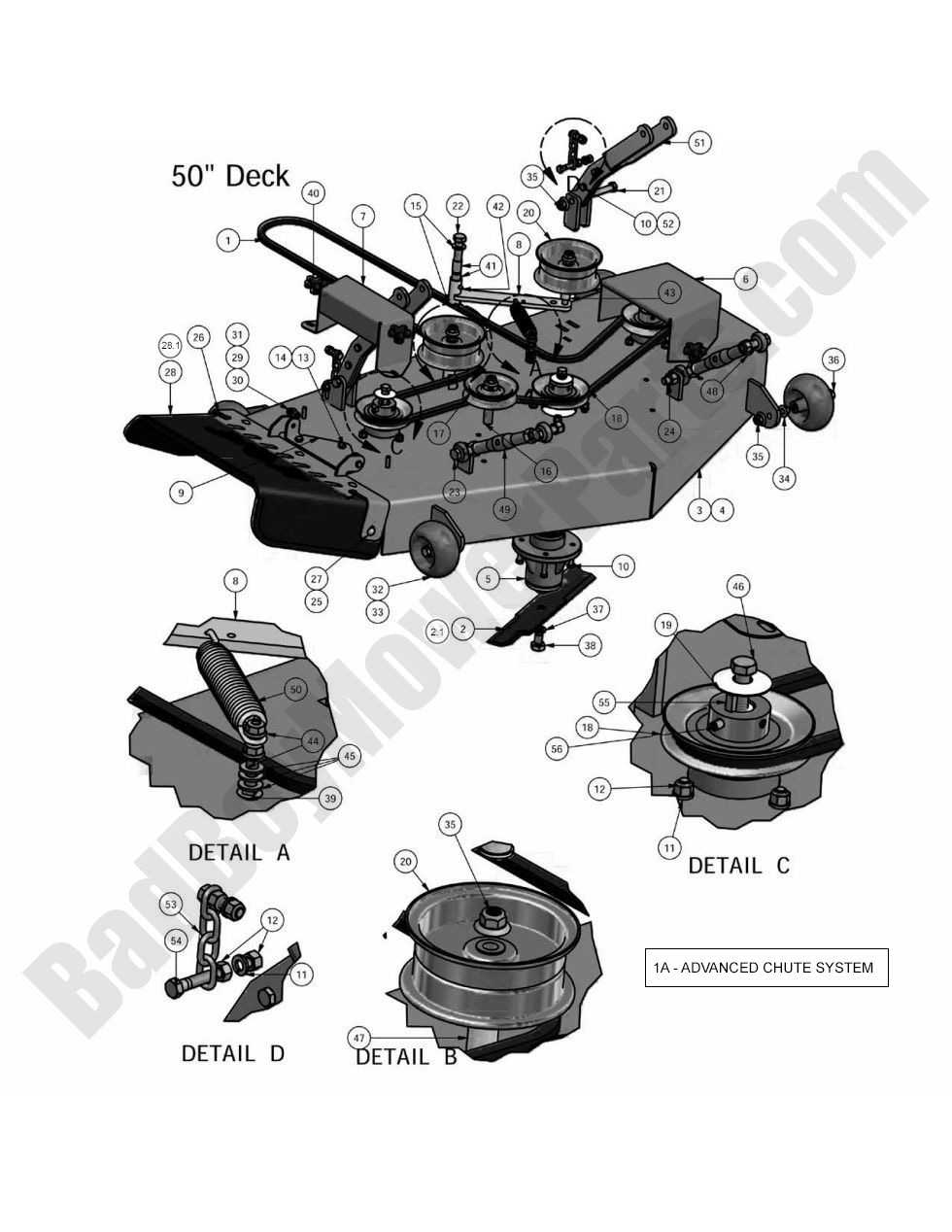

2010 ZT - 50" Deck Assembly

2010 ZT - 50" Deck Assembly

The 2010 ZT 50" Deck Assembly is engineered for precise cutting and long-lasting durability. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including spindles, blades, deck belts, pulleys, and tensioners for superior deck performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for efficiency and longevity. Using our Bad Boy Mower Part diagrams, you can easily locate and order the correct deck components for seamless installation. Routine maintenance prevents belt wear, ensures smooth blade rotation, and extends the lifespan of your deck system. With access to Bad Boy Parts Online, ordering deck components is quick and simple. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 ZT 50" Deck Assembly is now more cost-effective. Order today to keep your deck in peak condition, ensuring precise cuts and professional-quality mowing results.

Bad Boy Mower Parts Lookup

2010 ZT - 50" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
2.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
2 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
3 060-4800-00 060-4800-00 - Deck Shell Only (obsolete)
use part #060-6048-00
$1196.14
5 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
6 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
7 014-4801-00 014-4801-00 - 1/2 Metal Spindle Cover - Right (See Models Used On For Details)
$42.58
8 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
9 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
10 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
11 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
15 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
16 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
17 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
18 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
19 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
20 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
21 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
22 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
23 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
24 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
25 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
27 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
28.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
28 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
29 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
30 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
31 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
32 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
33 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
35 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
37 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
38 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
39 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
40 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
41 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
42 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
43 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
44 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
45 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
46 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
47 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
48 013-6058-00 013-6058-00 - 3/4-10 Left Hand Hex Nut
$3.52
49 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
50 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
51 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
53 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
54 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
55 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
56 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
