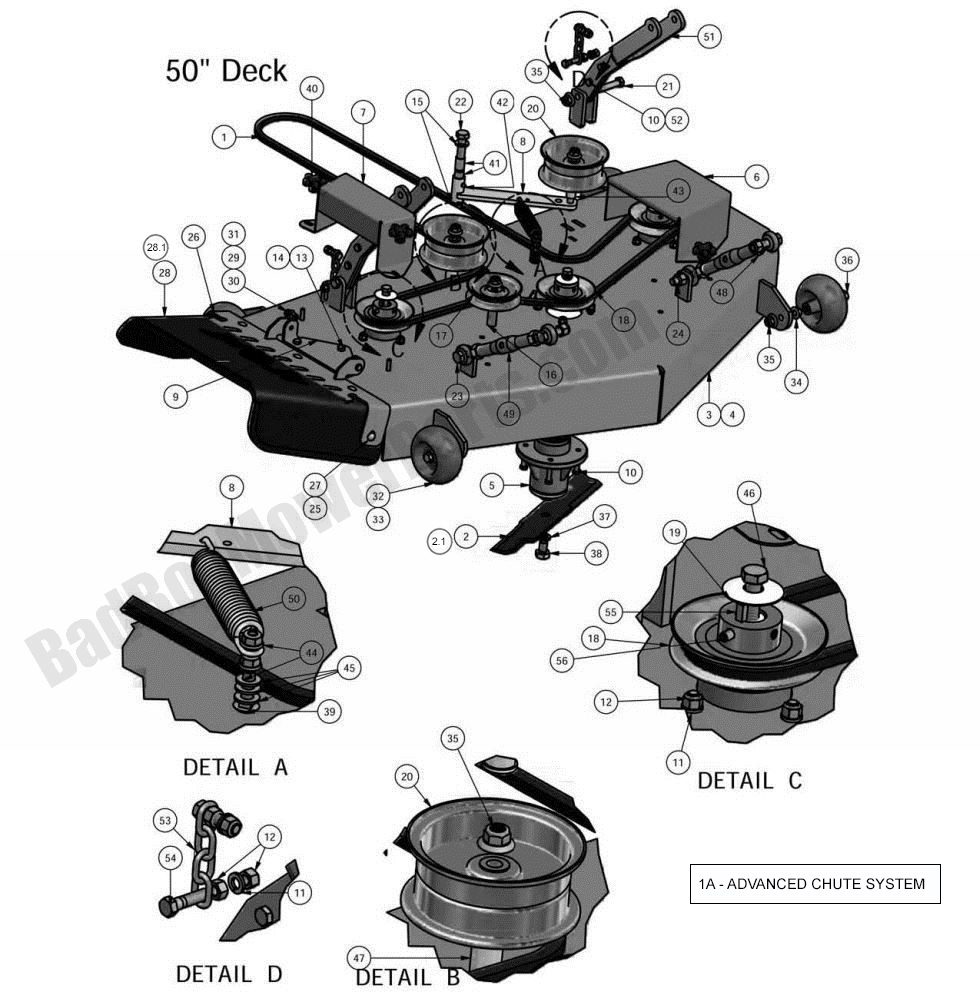

2011 ZT - 50" Deck Assembly

2011 ZT - 50" Deck Assembly

The 2011 ZT 50" Deck Assembly is built for durability and precision cutting, and BadBoyMowerParts.com has all the Bad Boy Mower Parts you need to keep it in top condition. Whether you’re replacing spindles, belts, or pulleys, our detailed Bad Boy Mower Part diagrams make it easy to identify the correct components. A well-maintained deck ensures a clean, even cut, so using high-quality Bad Boy Lawn Mower Parts is essential for long-term performance. Shopping for Bad Boy Parts Online saves you time and effort, allowing you to get the exact deck parts you need delivered right to your door. Our inventory includes everything from replacement blades to complete deck assemblies, so you can tackle any repair with confidence. Plus, with Free Shipping On Orders Over $100, maintaining your 2011 ZT 50" deck has never been more affordable. Trust BadBoyMowerParts.com for all your mower deck needs, ensuring peak efficiency and superior cutting performance.

Bad Boy Mower Parts Lookup

2011 ZT - 50" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
2.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
2 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
3 060-4800-00 060-4800-00 - Deck Shell Only (obsolete)
use part #060-6048-00
$1196.14
5 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
6 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
7 014-4801-00 014-4801-00 - 1/2 Metal Spindle Cover - Right (See Models Used On For Details)
$42.58
8 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
9 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
10 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
11 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
15 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
16 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
17 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
18 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
19 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
20 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
21 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
22 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
23 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
24 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
25 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
27 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
28.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
28 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
29 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
30 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
31 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
32 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
35 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
37 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
38 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
39 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
40 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
41 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
42 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
43 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
44 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
45 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
46 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
47 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
48 013-6058-00 013-6058-00 - 3/4-10 Left Hand Hex Nut
$3.52
49 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
50 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
51 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
53 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
54 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
55 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
56 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
