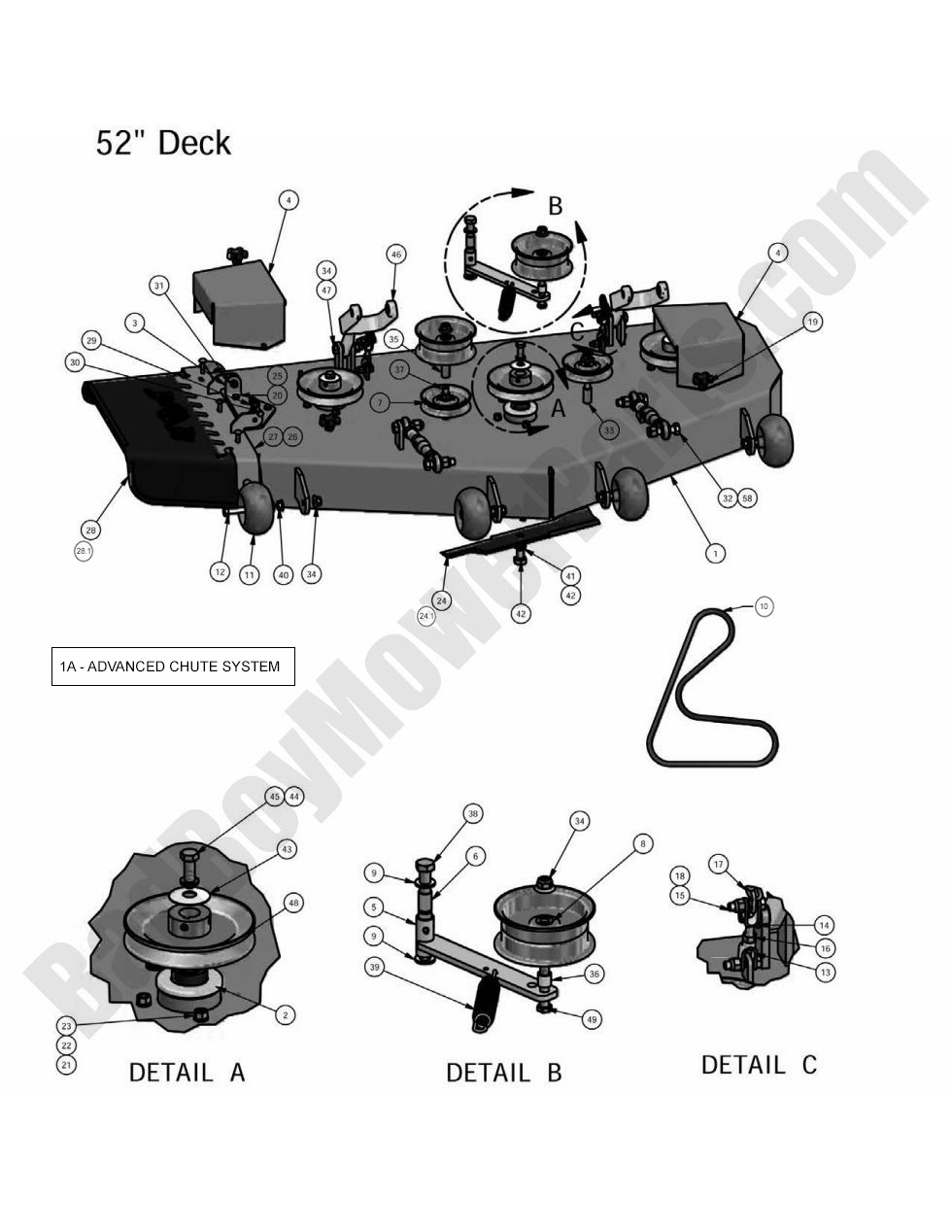

2010 Pup and Lightning - 52" Deck Assembly

2010 Pup and Lightning - 52" Deck Assembly

The 2010 Pup and Lightning 52" Deck Assembly is built for precision cutting and efficient performance, ensuring an even, professional-grade cut. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including spindles, cutting blades, deck belts, pulleys, and tensioners to maintain superior deck performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the exact deck components for an easy installation. Routine maintenance prevents belt wear, ensures smooth blade rotation, and extends the lifespan of your deck system. With access to Bad Boy Parts Online, ordering deck components is quick and simple. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Pup and Lightning 52" Deck Assembly is now more affordable. Order today to ensure optimal cutting precision, durability, and long-lasting performance for every mowing session.

Bad Boy Mower Parts Lookup

2010 Pup and Lightning - 52" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1 060-5402-00 060-5402-00 - 2007-2011 52" Pup Deck - Shell Only
$1099.99
2 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$291.91
3 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03

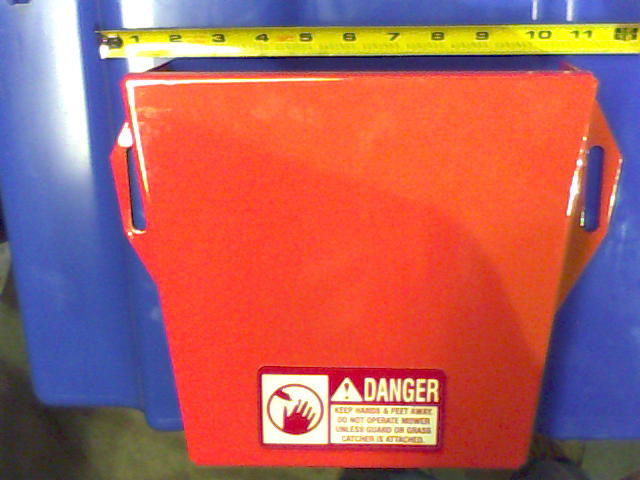

4 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
6 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
8 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 041-1490-00 041-1490-00 - B-149 Deck Belt for 52" Pup/Lightning
$88.80
11A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
11 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11

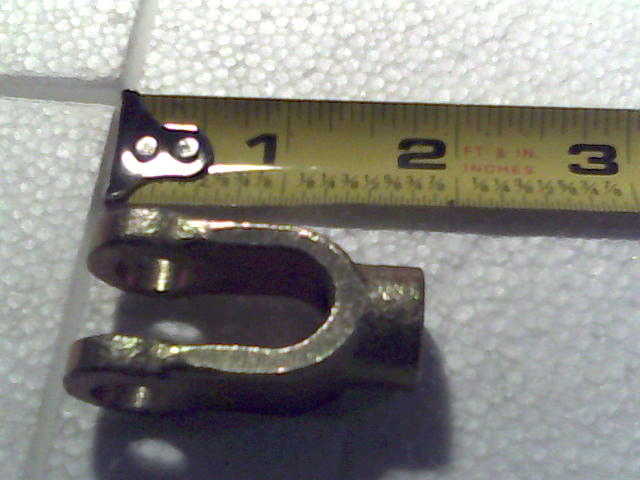

13 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
14 046-6048-00 046-6048-00 - Male Yoke
$15.60
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 047-6047-98 047-6047-98 - 3-Link Adjustable Deck Hanger (obsolete)
use part #046-6048-98
$32.09
18 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
19 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
20 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
21 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
24.1 038-5203-00 038-5203-00 - 36" & 52" Gator Mulching Blade
$22.99
24 038-3010-00 038-3010-00 - 36 & 52" High Lift Fusion Blade
$22.99
25 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
26 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
27 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
28.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
28 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
29 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
30 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
31 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
32 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
33 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
34 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
35 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
36 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
37 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
38 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
39 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
41 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
42 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
43 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
44 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
45 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
46 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
47 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
48 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
49 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
