2010 Outlaw & Outlaw Extreme 54" Deck Assembly

54" Deck Assembly

The Bad Boy Mower parts diagram for the 2010 Outlaw 54" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Outlaw models. Find all of your Bad Boy mowers 2010 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Outlaw 54" Deck. If you are not able to find the Bad Boy parts for your 2010 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

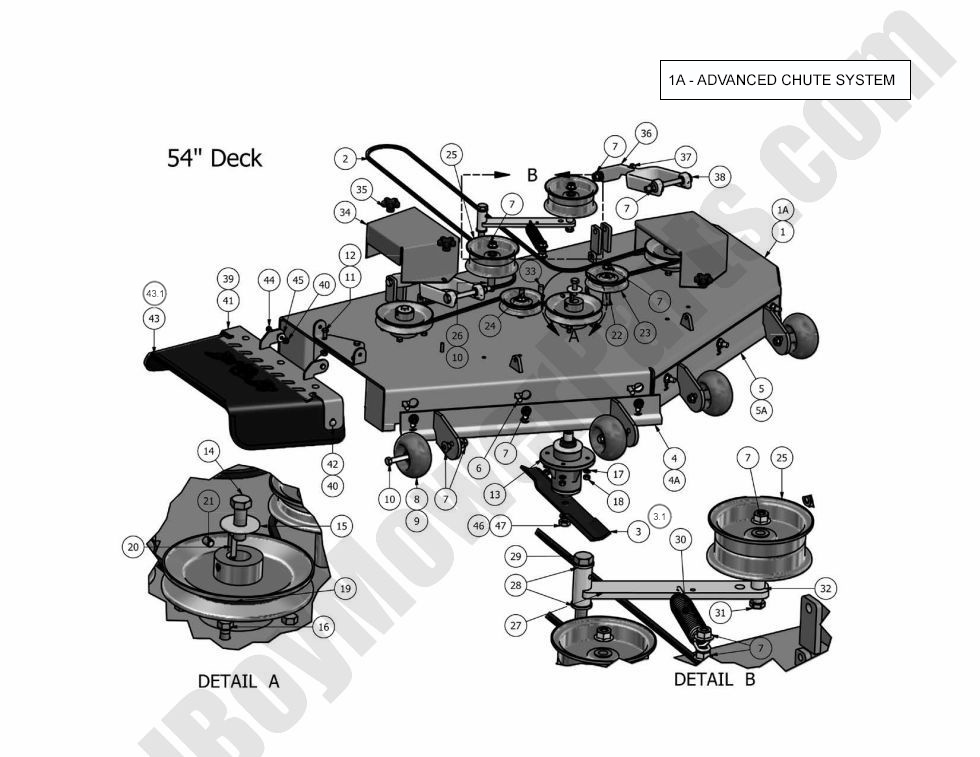

2010 Outlaw & Outlaw Extreme 54" Deck Assembly
  Position Number SKU Product Title Price

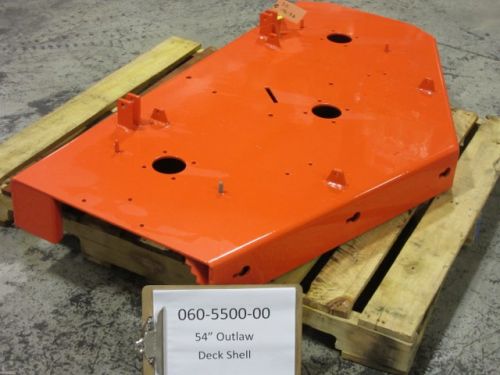

1A 060-5500-00 060-5500-00 - 2010-2014 54" Outlaw/XP Deck - Shell Only
$1176.99
1A 088-6007-00 088-6007-00 - Advanced Chute System for 2010-2018 54" Outlaw Models
$266.99
2 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
3.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
3 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
4A 060-5520-00 060-5520-00 - 54 Outlaw & Stand On Adjustable Deck Front (Left Gate)
$85.99
5A 060-5530-00 060-5530-00 - 54 Outlaw & Stand On Adjustable Deck Front (Right Gate)
$85.99
6 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
9 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
10 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
11 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
12 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
13 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$312.34
14 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
15 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
16 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
17 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
18 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
19 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
20 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
21 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
22 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
23 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
24 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
25 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
26 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
27 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
28 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
29 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
30 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
31 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
32 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
33 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
34 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
35 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
36 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
37 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
38 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
39 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
40 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
41 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
42 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
43.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
43 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
44 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
47 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
