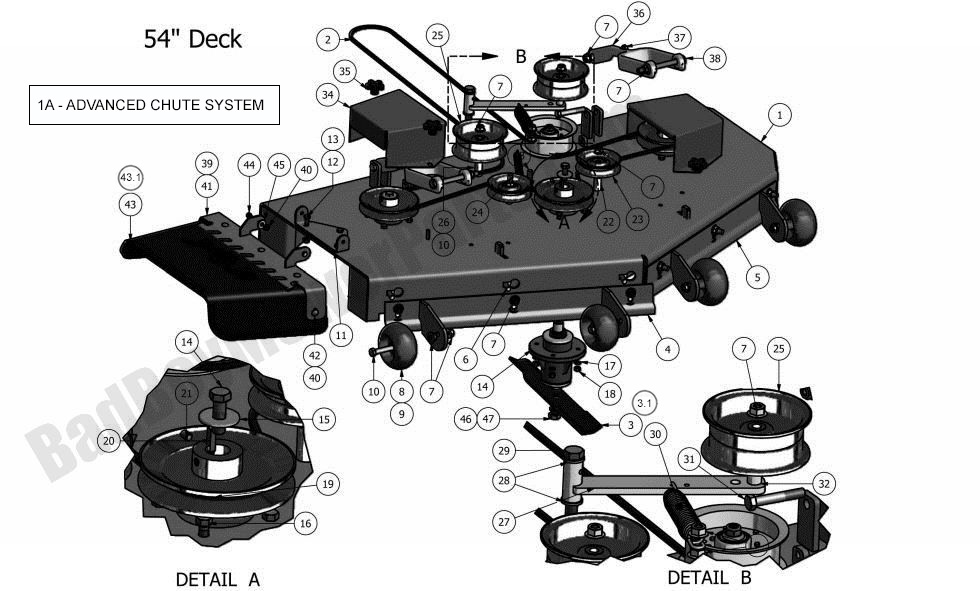

2011 Outlaw & Outlaw Extreme - 54" Deck Assembly

2011 Outlaw & Outlaw Extreme - 54" Deck Assembly

A well-maintained 2011 Outlaw & Outlaw Extreme 54" Deck Assembly is crucial to achieving a clean and even cut with your 2011 Outlaw & Outlaw Extreme mower, and BadBoyMowerParts.com offers top-quality replacement parts for your 54" deck assembly. Our Bad Boy Mower Part diagrams help you identify the exact parts you need for smooth operation, ensuring that you get the best performance out of your mower. We carry a wide selection of Bad Boy Lawn Mower Parts, from blades and spindles to pulleys and belt kits, so you can keep your deck in prime condition. With Bad Boy Parts Online, you can easily shop for the right components, and Free Shipping On Orders Over $100 means you save more while maintaining your mower. Get the perfect replacement parts for your 2011 Outlaw & Outlaw Extreme 54" Deck Assembly today at BadBoyMowerParts.com.



Bad Boy Mower Parts Lookup

2011 Outlaw & Outlaw Extreme - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6007-00 088-6007-00 - Advanced Chute System for 2010-2018 54" Outlaw Models
$249.00
1 060-5500-00 060-5500-00 - 2010-2014 54" Outlaw/XP Deck - Shell Only
$1099.99
2 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
3.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
3 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
4 060-5520-00 060-5520-00 - Adjustable Deck Front Left (See Models Used On For Details)
$85.99
5 060-5530-00 060-5530-00 - Adjustable Deck Front Right (See Models Used On For Details)
$85.99
6 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
10 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
11 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
12 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
13 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
14 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
15 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
16 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
17 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
18 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
19 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
20 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
21 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
22 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
23 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
24 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
25 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
26 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
27 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
28 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
29 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
30 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
31 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
32 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
34 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
35 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
36 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
37 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
38 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
39 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
40 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
41 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
42 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
43.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
43 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
44 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
47 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
