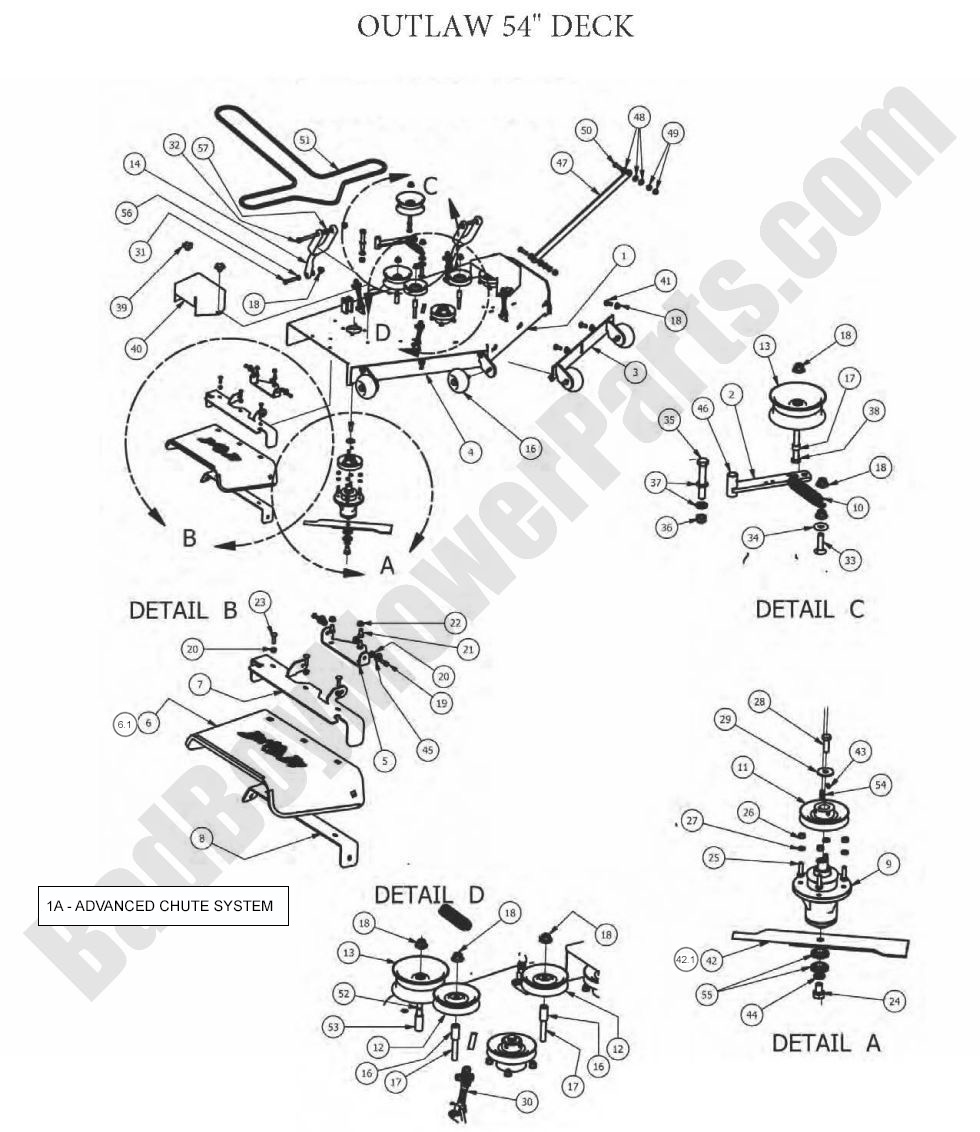

2012 Outlaw XP - 54" Deck Assembly

2012 Outlaw XP - 54" Deck Assembly

For the 2012 Outlaw XP, the 54" Deck Assembly ensures smooth and efficient mowing, especially for larger yards. If you need replacement parts for your deck, BadBoyMowerParts.com offers a complete selection of Bad Boy Mower Parts. From spindles to pulleys and belts, we carry the parts necessary to keep your deck operating at peak performance. Our Bad Boy Mower Part diagrams allow you to find the right components quickly, so you can get back to mowing. The Bad Boy Lawn Mower Parts we offer are built for durability, ensuring they stand up to regular use. When you shop Bad Boy Parts Online, you’ll find a straightforward shopping experience with clear parts descriptions and fast order processing. Plus, enjoy Free Shipping On Orders Over $100, making it even easier and more affordable to maintain your mower. Get your 2012 Outlaw XP deck in top shape today with quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2012 Outlaw XP - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6007-00 088-6007-00 - Advanced Chute System for 2010-2018 54" Outlaw Models
$249.00
1 060-5500-00 060-5500-00 - 2010-2014 54" Outlaw/XP Deck - Shell Only
$1099.99
2 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
3 060-5520-00 060-5520-00 - Adjustable Deck Front Left (See Models Used On For Details)
$85.99
4 060-5530-00 060-5530-00 - Adjustable Deck Front Right (See Models Used On For Details)
$85.99
5 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
6.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
6 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
7 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
8 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
9 037-8000-50 037-8000-50 - Double Bearing Spindle - Aluminum Housing (obsolete)
use part #037-4000-00
$291.91
10 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
11 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
14 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
16A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
16 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
16 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
17 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
21 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
22 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
23 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
24 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
25 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
26 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
27 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
28 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
29 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
30 047-6047-98 047-6047-98 - 3-Link Adjustable Deck Hanger (obsolete)
use part #046-6048-98
$32.09
31 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
32 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
33 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
34 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
35 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
36 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
37 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
38 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
39 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
40 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
41 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
42.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
42 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
43 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
44 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08
47 028-6060-00 028-6060-00 - Panhard Linkage Bar Outlaw and Diesel Decks (See Models Used On For Detail)
$12.77
48 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
49 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
50 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
51 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
52 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
53 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
54 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
55 037-8001-00 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details)
$46.78
56 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
57 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
